METHOD AND APPARATUS FOR MILLING OF RAILROAD TRACK
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 25, 2016
filing date -
Jan 19, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

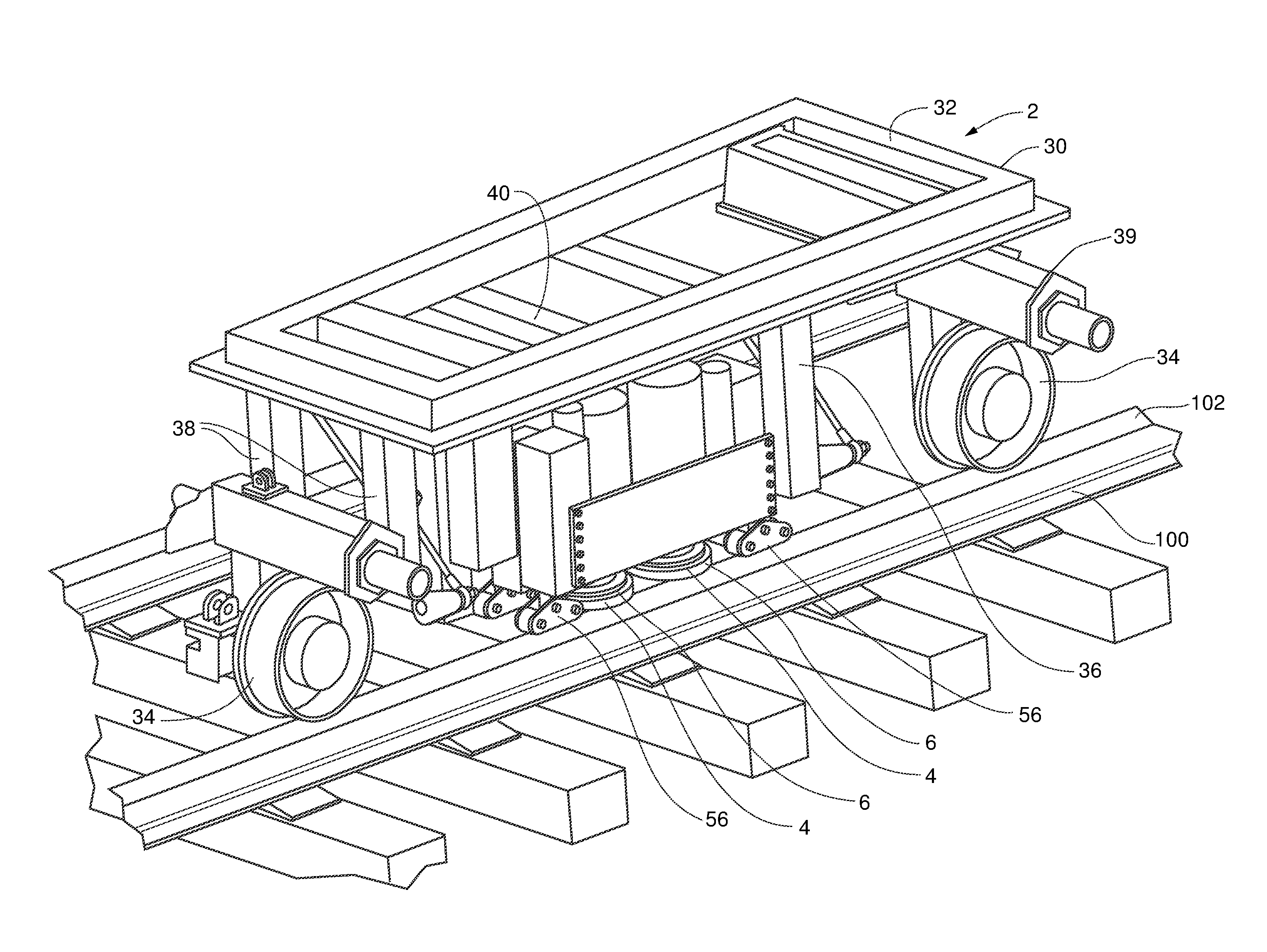

A milling system for milling a track surface with at least one rotatable milling plate. A modular blade system for each milling plate allows individual blades to be removed and replaced when an individual blade becomes dull or broken. The blade system also allows the milling plates to be oriented in both Type 2 and Type 3 configurations depending upon track surroundings and the presence of encumbrance. The milling plates can be mounted to a positioning assembly for adjusting the relative distance between the milling plate and the track surface as well as the angle at which the milling plate engages the track surface. The milling system can include a depth guide so as to physically prevent the milling plate from cutting too deeply into the track surface.
First Claim
Other Claims data not available
