Valve mechanism for controlling a fluid, in particular an abrasive high-viscosity material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 30, 2020
Grant Date -
Nov 10, 2016
app pub date -
Jan 8, 2015
filing date -
Jan 8, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

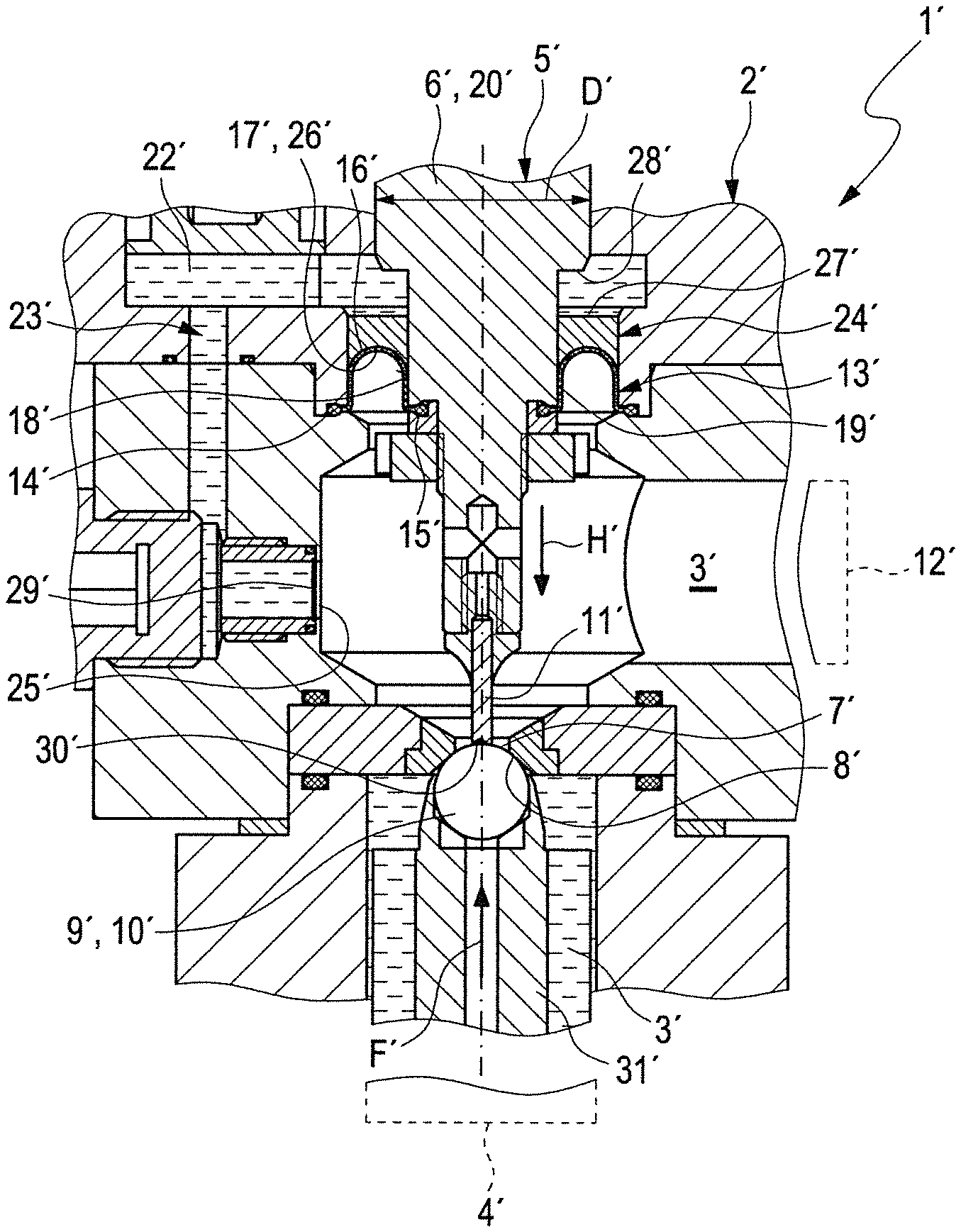

The invention relates to a valve mechanism (1; 1′) for controlling a fluid, comprising a housing (2; 2′) that has a fluid duct (3), further comprising a valve body (5) that is mounted on the housing (2) so as to be adjustable between an open position in which the valve body allows the fluid (F) to flow through the fluid duct (3) and a closed position in which the valve body fluid-tightly seals the fluid duct, and comprising a membrane-like sealing element (13) which is secured to the housing (2) at a first end portion (14) and to the valve body (5) at a second end portion. In the open state of the valve body (5), a side of the sealing element (13) that faces away from the fluid duct (3) rests against a wall section (17) between the two end portions (14, 15).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16K Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 30, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 30, 2031 |
