SYSTEM AND METHOD FOR REMOVING FAR FIELD LIMITATIONS IN MICROWAVE PHOTONIC ARBITRARY WAVEFORM GENERATORS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 3, 2016
app pub date -
Dec 28, 2015
filing date -
Mar 15, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

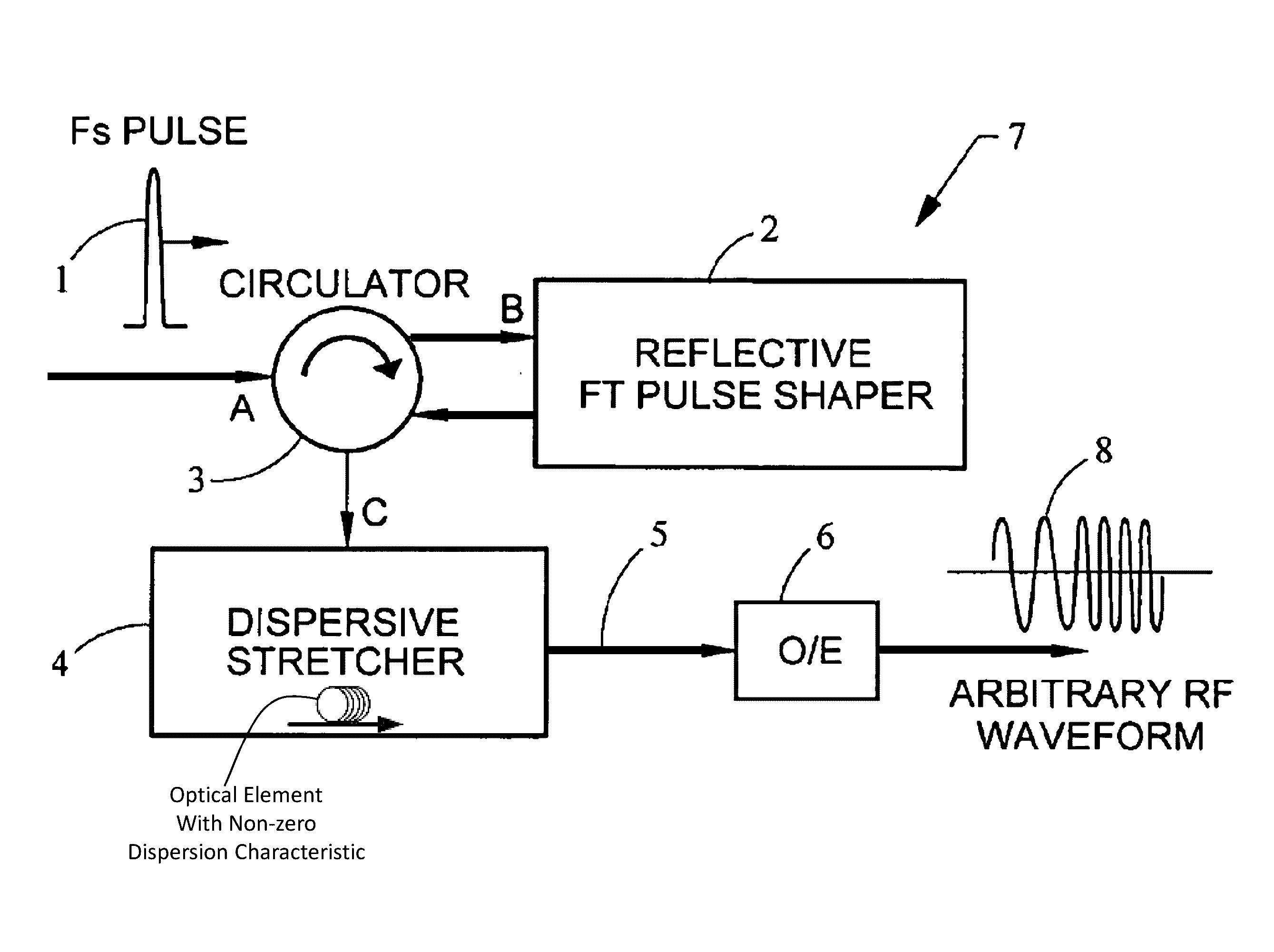

A photonic waveform generator and a method of generating an electrical waveform based on a photonic signal are disclosed. The generator includes an input port for receiving an optical signal, a pulse shaper coupled to the input port and configured to Fourier transform the optical signal and apply a pre-distort waveform onto optical spectrum of the optical signal, a dispersive pulse stretcher coupled to the pulse shaper, an optical-to-electrical converter coupled to the dispersive pulse stretcher, and an output port coupled to the optical-to-electrical converter, the pre-distortion removes distortion of the electrical signal that exists in the absence of the pre-distortion caused by violation of far field limitation between the optical signal and the electrical signal.
First Claim
Other Claims data not available
