Bidirectional Bipolar Transistor Structure with Field-Limiting Rings Formed by the Emitter Diffusion

Number of patents in Portfolio can not be more than 2000

United States of America Patent

SERIAL NO

15083217

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Calculated Rating
US Family Size
Non-US Coverage

Abstract

See full text

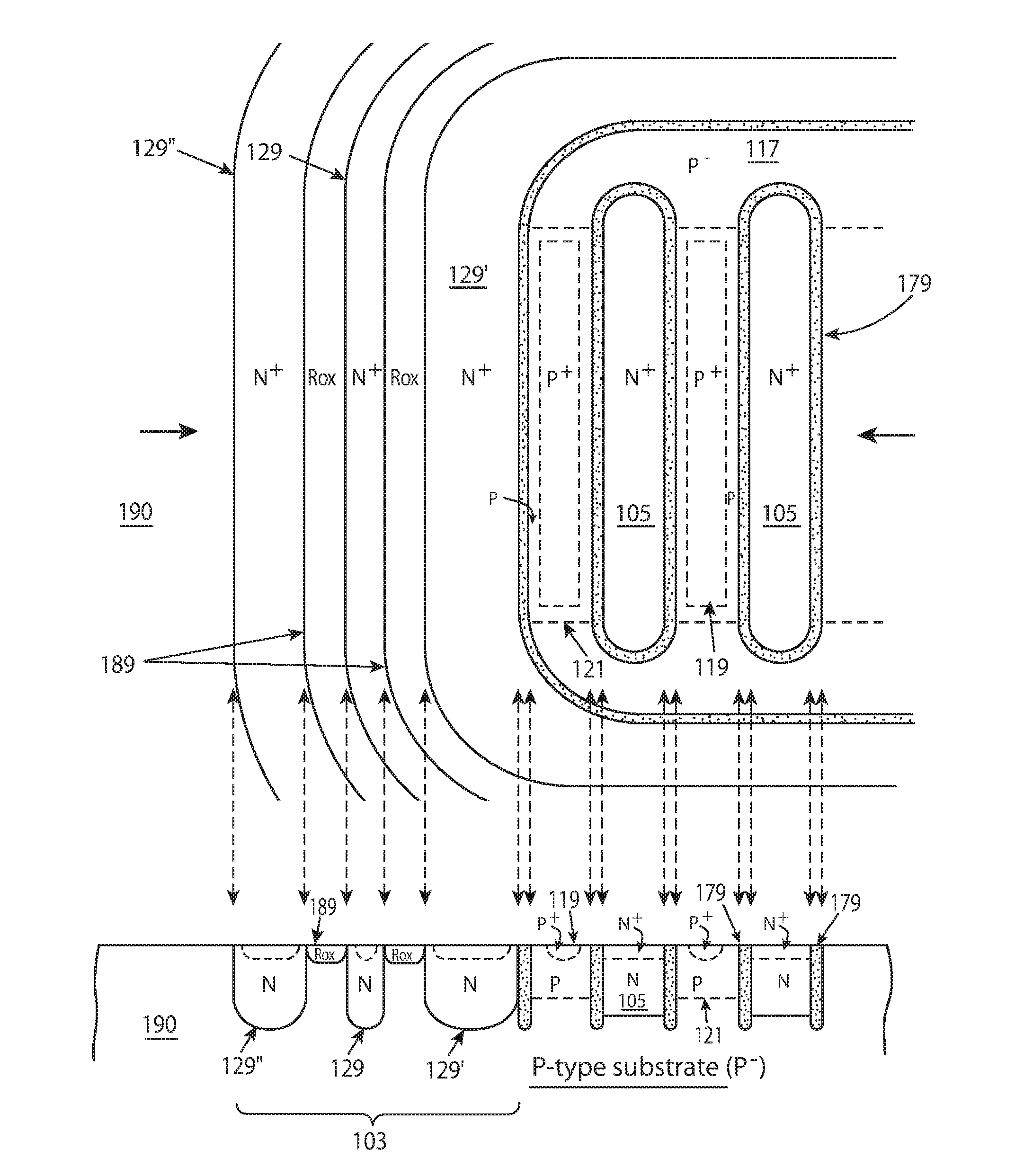

A symmetrically-bidirectional power bipolar transistor having, on both surfaces of a semiconductor die, an n-type emitter/collector region which is completely surrounded by a first recessed field plate, which is itself completely surrounded by a p-type region including p+ contact areas. All of the p-type region is preferably bordered and surrounded by a second recessed field plate trench. The second recessed field plate trench is itself surrounded by an n-type region which is wholly or partially made of the same diffusion as the emitter/collector regions, but which is not connected to the metallization which connects the emitter/collector regions to extermal terminals.
