Method for positioning an access or loading assembly against the fuselage of an aircraft
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 31, 2017
Grant Date -
Nov 3, 2016
app pub date -
Apr 13, 2016
filing date -
Apr 27, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

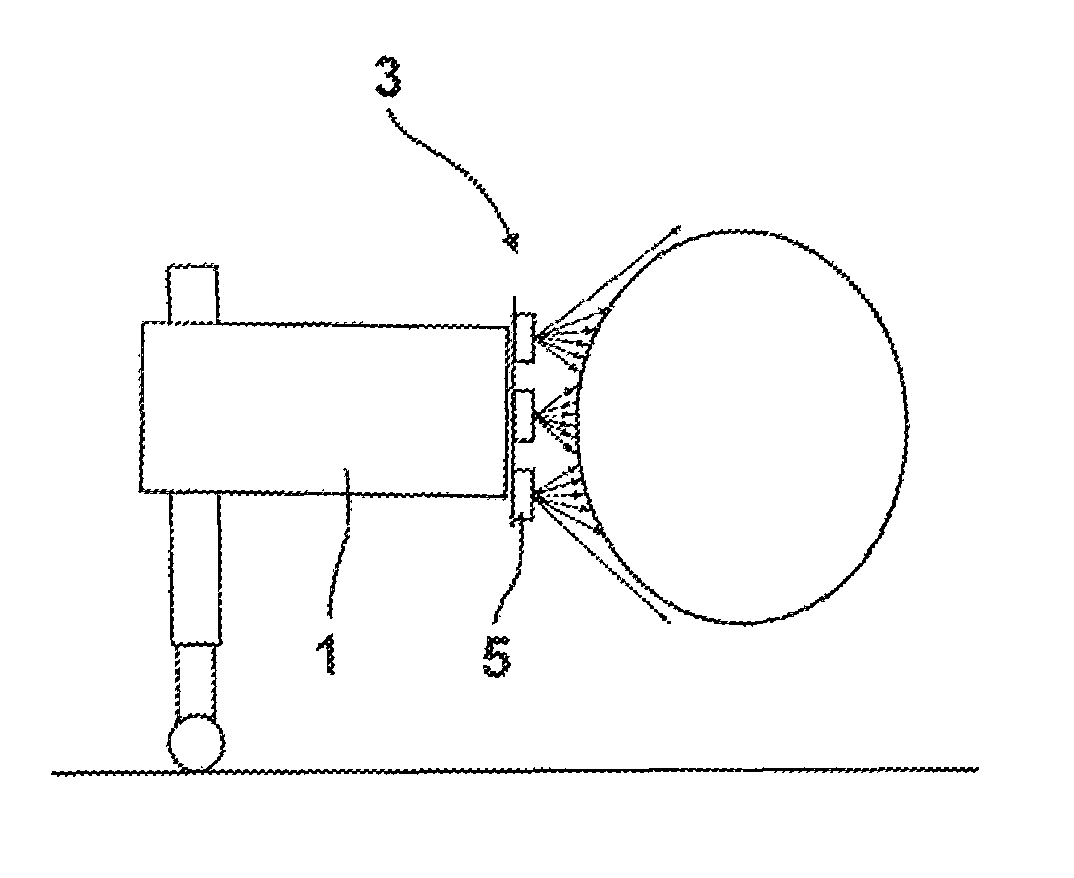

A method for positioning an access or loading assembly against the fuselage of an aircraft during the loading or unloading process, in which at least two multichannel scanners are oriented toward the aircraft fuselage and disposed above one another at a distance from each other, each with several light emitting units and at least one detector. First, a reference position is determined by using the scanners, then a current position of the aircraft fuselage relative to the access or loading assembly is determined at determined time intervals by the multichannel scanners. The current position is compared with the reference position to determine a deviation. In case of a deviation between the two positions, a signal is transmitted to the control system of the positioning drive for realigning the access or loading assembly and reducing the deviation.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| EP | B1 | EP3088305 | Apr 27, 2015 |
| CN | B | CN106081152 | Apr 27, 2016 |
International Classification(s)
- 2016 Application Filing Year
- B64F Class
- 566 Applications Filed
- 372 Patents Issued To-Date
- 65.73 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B64F Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 31, 2028 |
