IMPROVEMENTS IN OR RELATING TO CONVERTERS FOR USE IN HIGH VOLTAGE DIRECT CURRENT POWER TRANSMISSION
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 27, 2016
app pub date -
Dec 12, 2014
filing date -
Dec 12, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

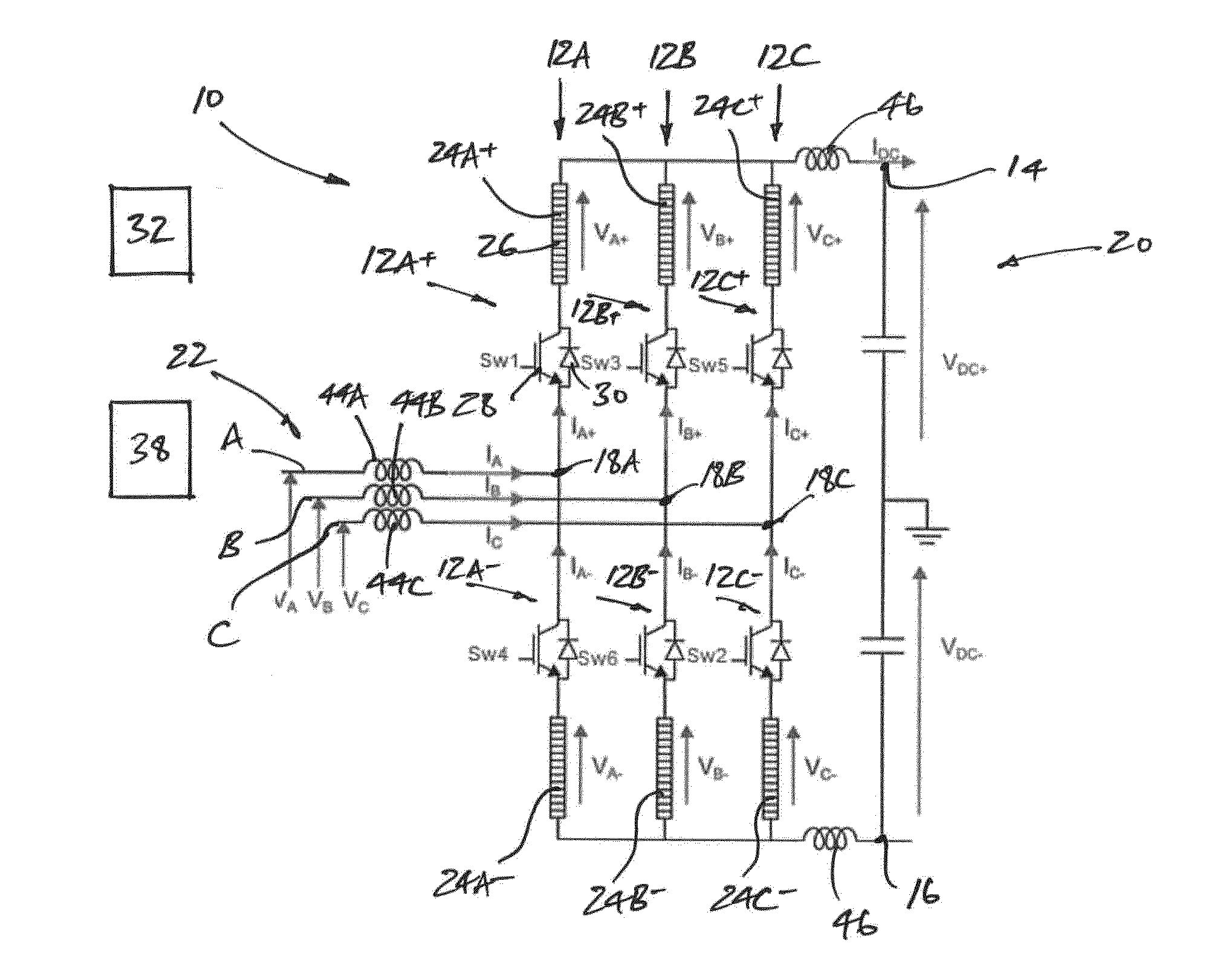

In the field of high voltage direct current (HVDC) power transmission, a converter comprises three converter limbs, each corresponding to a respective phase of the converter, each extending between first and second DC terminals and each including first and second limb portions separated by an AC terminal. Each limb portion includes a chain-link converter that is operable to provide a stepped variable voltage source, and a primary switching element to selectively switch the respective limb portion into and out of circuit. The converter also includes a first controller that is programmed to selectively operate for one converter limb at a time the primary switching element in each limb portion thereof to simultaneously switch both the first and second limb portions into circuit and thereby define a fully-conducting converter limb to sequentially route via each said fully-conducting converter limb a DC current demand (IDC) between the first and second DC terminals.
First Claim
Other Claims data not available
