ELECTRICAL TRANSFORMER BARRIER STRUCTURE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 27, 2016
app pub date -
Apr 27, 2015
filing date -
Apr 27, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

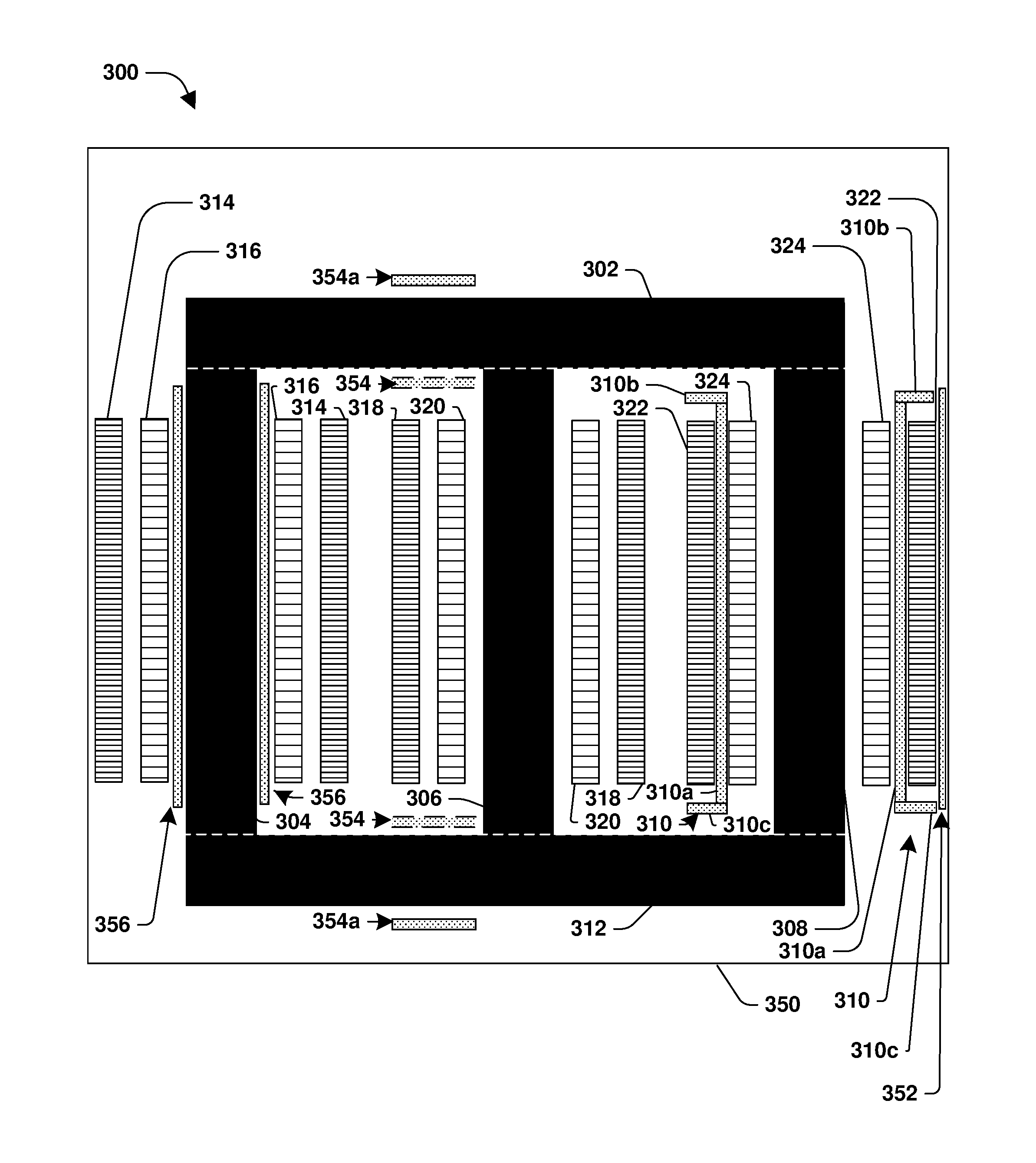

One or more electrical transformers comprising barrier structures for improved flashover resistance are provided herein. A barrier structure may be positioned between a higher voltage winding and a lower voltage winding, between the higher voltage winding and a core, or between two higher voltage windings of a multi-phase electrical transformer. The barrier structure may comprise a first material having a relatively lower permittivity value such as about 2.5 or less, which may provide improved flashover resistance. In an example, the barrier structure may comprise a second material having a relatively higher permittivity value such as about 2.5 or greater, which may provide improved puncture resistance. The barrier structure may comprise any number of layers of the first material and/or the second material
First Claim
Other Claims data not available
