THERMOSTATIC CONDENSING GAS WATER HEATER AND CONTROL METHOD THEREFOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 6, 2016
filing date -
Nov 10, 2011
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

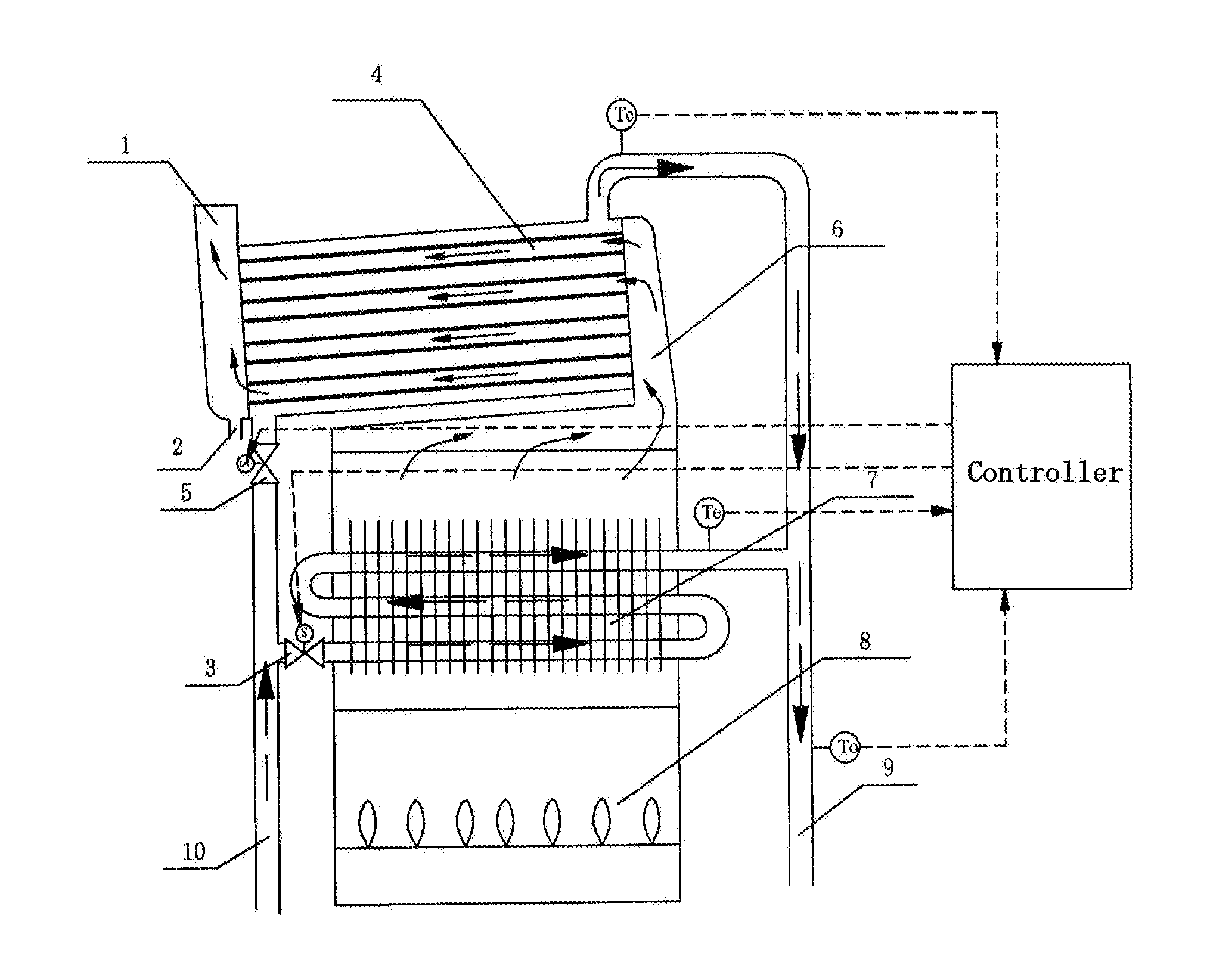

A thermostatic condensing gas water heater, comprising a burner; a first heat exchanger (7), a second heat exchanger (4), a water inlet pipe (10), and a water outlet pipe (9) provided in succession along the flow direction of the burnt flue gas; a controller; and a water flow channel connecting the first heat exchanger (7) and the second heat exchanger (4) in parallel between the water inlet pipe (10) and the water outlet pipe (9), wherein flow control valves (3, 5) capable of adjusting the water flow distribution of the first heat exchanger (7) and the second heat exchanger (4) are provided on the water flow channel and controlled by the controller.
