Joint-free concrete
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Apr 23, 2016
filing date -
Apr 23, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

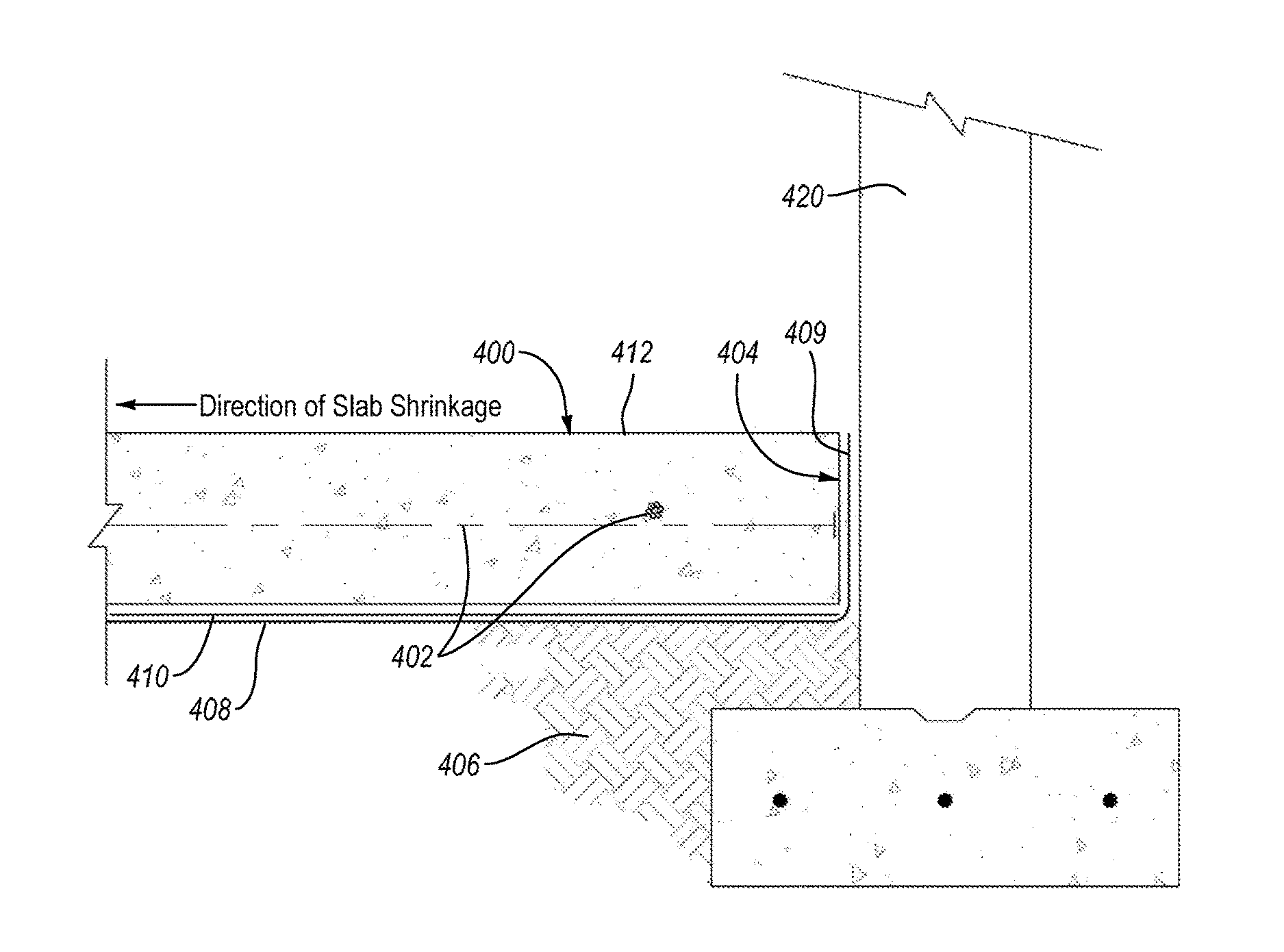

Method of forming a concrete slab to reduce or eliminate control joints includes preparing a substantially flat base, overlaying one or more barriers on top of the base, placing a concrete mixture on top of the barrier(s) and base to form a concrete slab, and allowing the concrete to cure without forming control joints. The base is prepared with a flatness of about ±¼ inch over 10 feet. A side edge is prepared along a periphery of the concrete slab by extending a vapor barrier from a bottom surface of the slab up the side edge toward a top surface of the slab and covering the side edge. A plurality of post-tensioning cables are positioned to extend through the slab and configured to compress and assist in controlling accelerated displacement of the concrete slab during curing and shrinkage. The concrete slab is formed of an evenly gradated and low slump concrete having high fiber content, minimized cement content, and maximized size of large aggregate.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- E04B Class
- 42.29 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
