DISPLAY PANEL AND MANUFACTURING METHOD THEREOF
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 20, 2016
app pub date -
Aug 13, 2015
filing date -
Apr 15, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

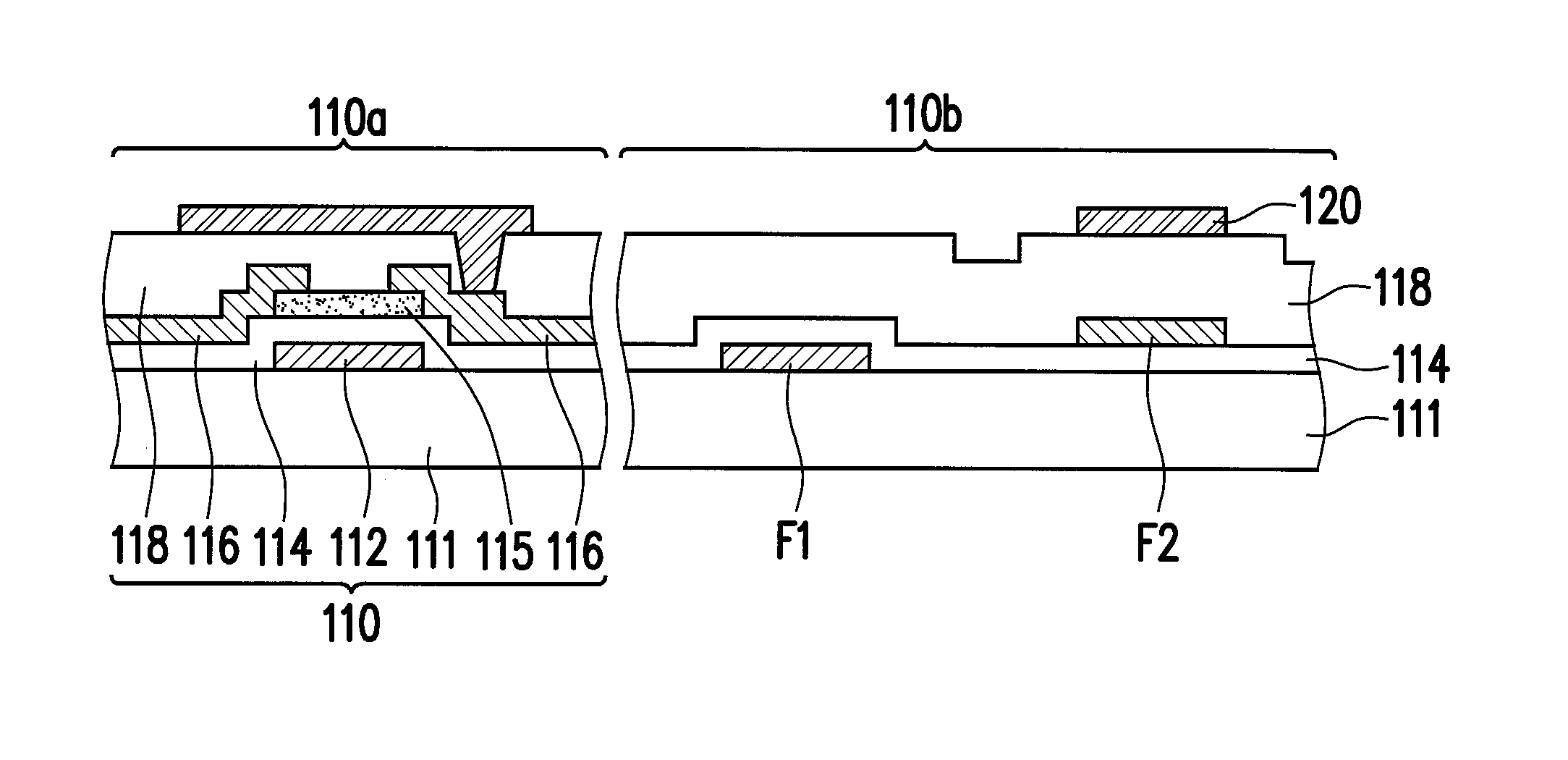

A display panel includes an array substrate, a plurality of transparent conductive oxide patterns, and a display medium. The array substrate includes a substrate, and a first metal layer, a first insulation layer, a semiconductor layer, a second metal layer, and a second insulation layer sequentially disposed on the substrate. The substrate has an active region and a wiring region. The first metal layer and the second metal layer extend from the active region to the wiring region to respectively define a plurality of first wirings and second wirings. The transparent conductive oxide patterns are disposed on the second insulation layer in the wiring region to respectively correspond to the second wirings. An orthogonal projection of each of the transparent conductive oxide patterns onto the substrate overlaps with an orthogonal projection of the corresponding second wiring onto the substrate. The display medium is disposed on the array substrate.
