Power controller for a door lock and method of conserving power
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 27, 2020
Grant Date -
Oct 20, 2016
app pub date -
Apr 14, 2016
filing date -
Apr 14, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

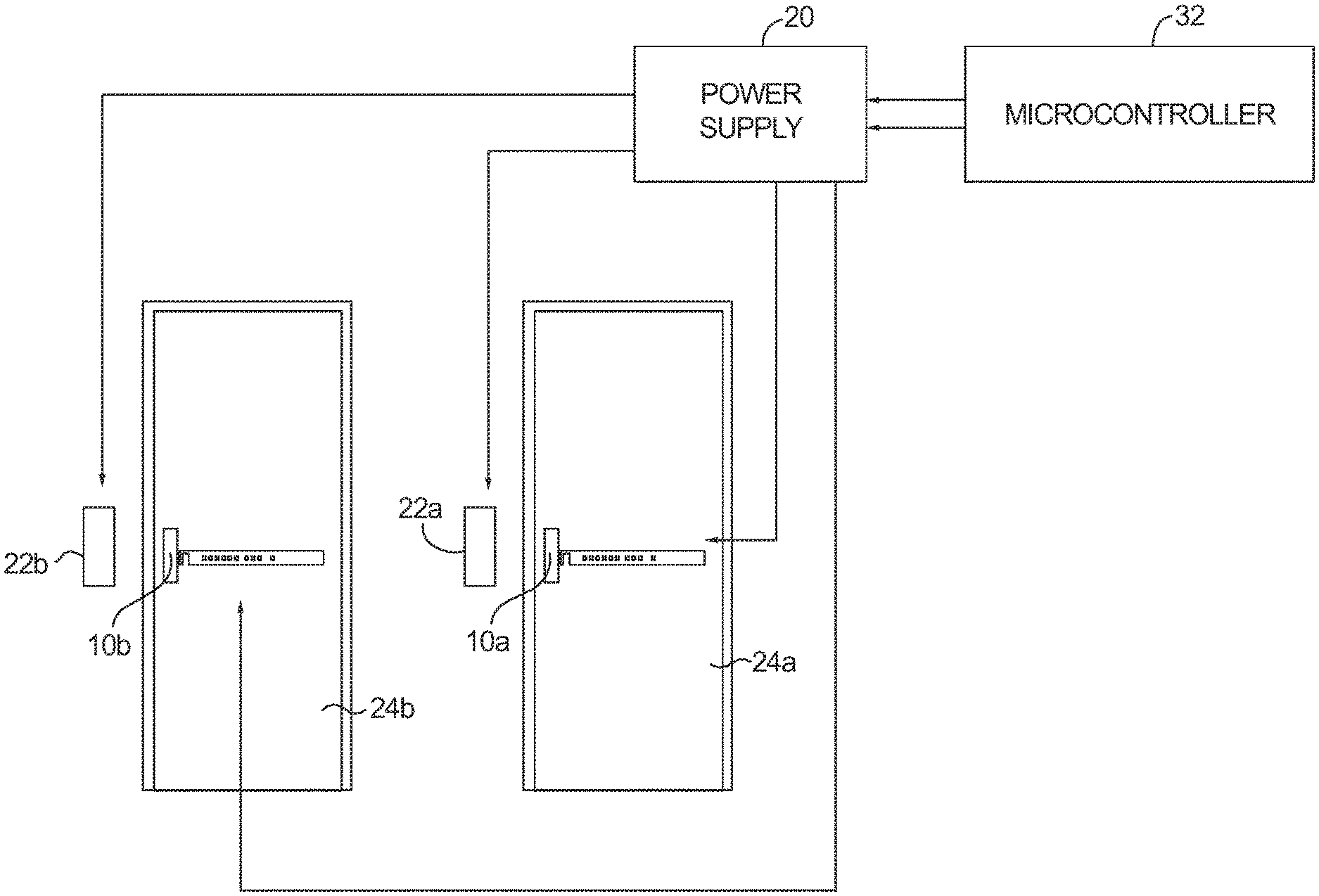

A power control system for use with an electric lock mechanism having an actuator comprises a power supply to output an output voltage to the actuator. A credential device signals the power supply to output the voltage upon receiving an authorized code. A microcontroller controls the power supply, the credential device, and the actuator and may operate in an Access Mode or a Dog Mode. When in Access Mode, the actuator is unpowered and the credential device is powered until an authorized code is received and the power supply powers the actuator. The Dog Mode has an awake mode where the actuator is powered and the credential device is unpowered after the actuator remains in the powered state for a length of time. A sleep mode has the actuator unpowered and the credential device powered until an authorized code is received and the power supply powers the actuator.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G07C Class
- 1873 Applications Filed
- 1304 Patents Issued To-Date
- 69.63 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G07C Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 27, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 27, 2032 |
