Tensioning device for aircraft refueling boom hoist
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 20, 2020
Grant Date -
Oct 20, 2016
app pub date -
Jun 29, 2016
filing date -
Nov 28, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

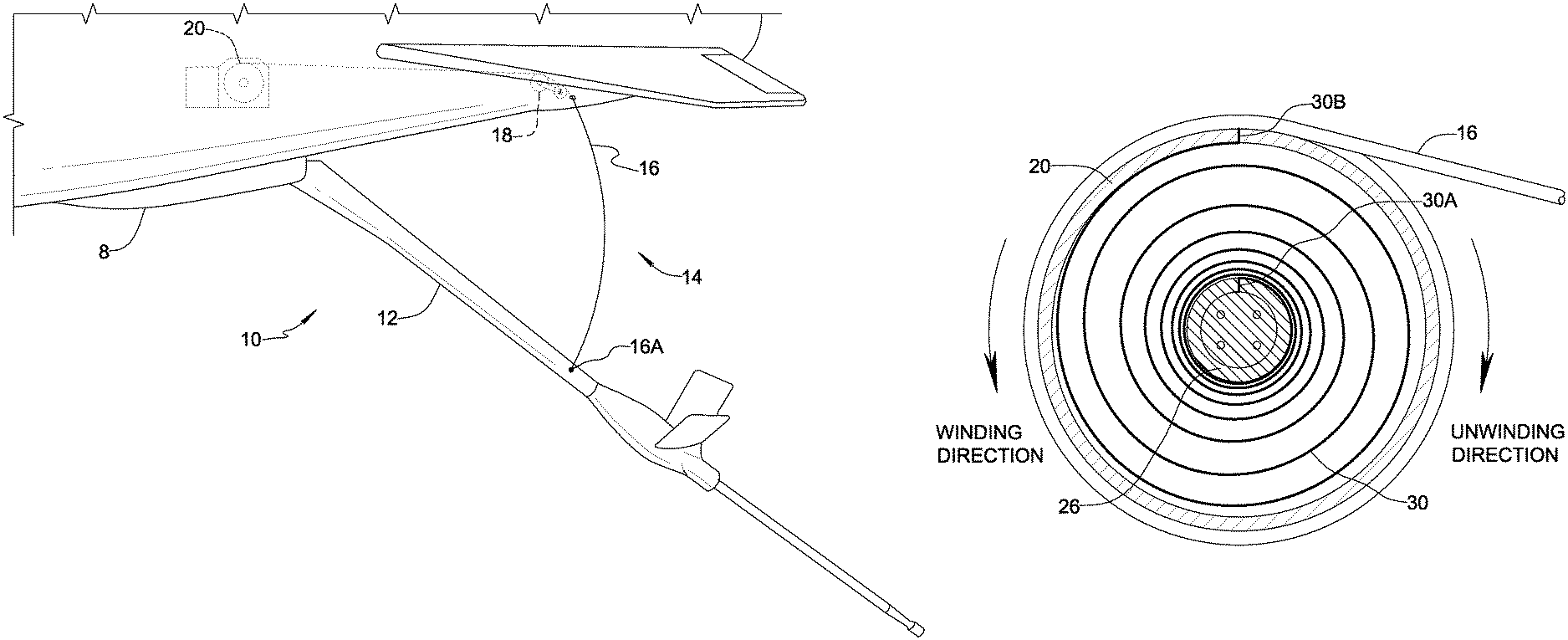

A power spring passively applies tension to a cable connected to an aircraft refueling boom. The power spring has a first end engaging a fixed arbor and second end engaging a rotatable spooling drum around which a portion of the cable is wound. The power spring biases the drum to rotate in a winding direction to apply tension to the cable, and the power spring stores energy when the drum rotates in an unwinding direction. The power spring may be located inside the drum or outside the drum. The drum may be actively driven by a motor that may be uncoupled from the drum to permit freewheeling rotation of the drum, wherein the power spring continues to apply tension to the cable. The invention eliminates reliance on one or more powered motors for removing unwanted slack in the cable.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B65H Class
- 1514 Applications Filed
- 1205 Patents Issued To-Date
- 79.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B65H Class
- 50.75 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 20, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 20, 2032 |
