Surgical cutting instrument
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 17, 2018
Grant Date -
Oct 20, 2016
app pub date -
Apr 17, 2015
filing date -
Apr 17, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

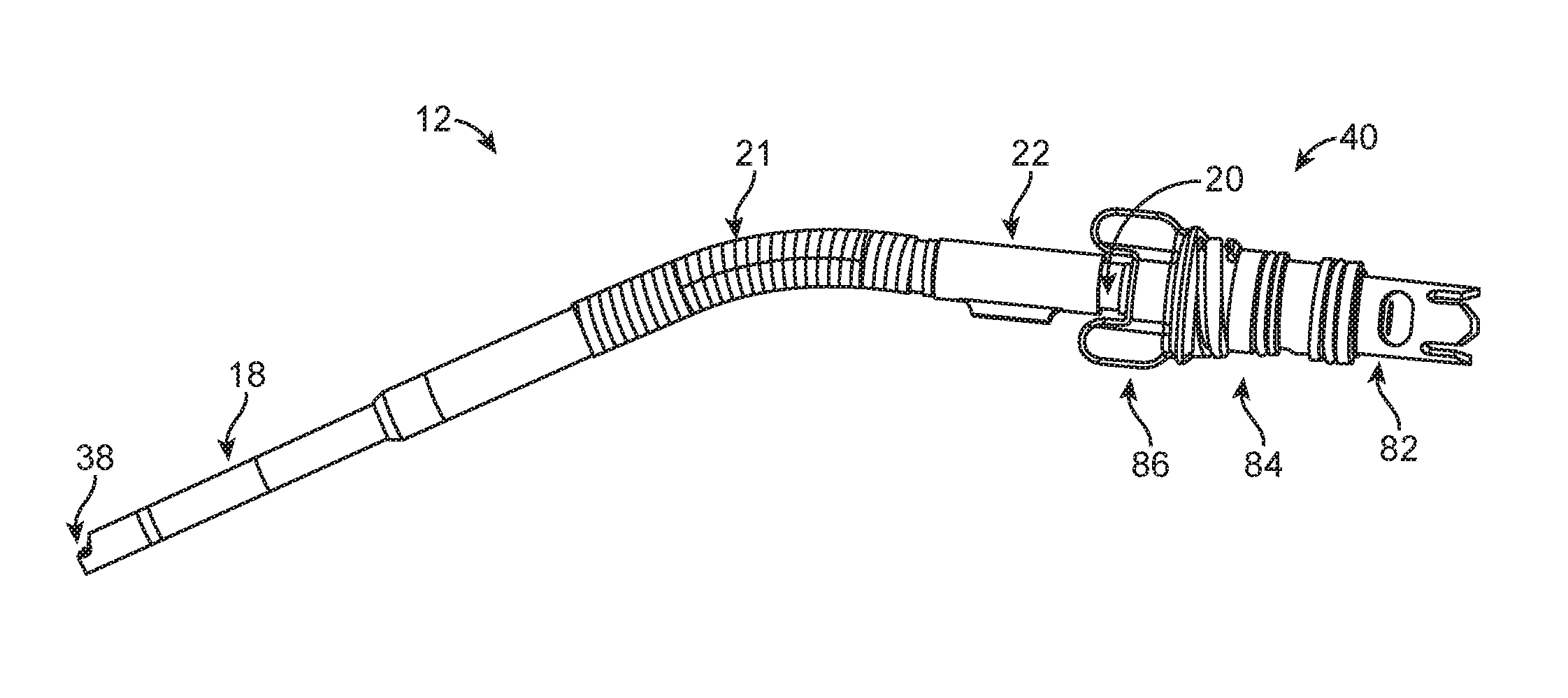

A surgical cutting instrument including a first tubular member, a second tubular member, a sleeve member, a third tubular member, and an orientation member. A distal section of the first tubular member includes a cutting tip. The distal region of the second tubular member forms a cutting window. The first elongated member is co-axially disposed within the second tubular member such that the cutting tip is selectively exposed at the cutting window. The first and second tubular members are co-axially disposed within the sleeve member. The third tubular member is co-axially disposed around the intermediate section of the first tubular member, the intermediate region of the second tubular member and the sleeve member. The orientation member is rotatable to transmit a rotational force applied to the orientation member to selectively rotate the second and third tubular members relative to the sleeve to effectuate spatial rotation of the cutting window.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2015 Application Filing Year
- A61B Class
- 16562 Applications Filed
- 12933 Patents Issued To-Date
- 78.09 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- A61B Class
- 20.51 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 17, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 17, 2030 |
