STATOR FOR AN ELECTRONICALLY COMMUTATED DIRECT CURRENT MOTOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 19, 2014
filing date -
Dec 3, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

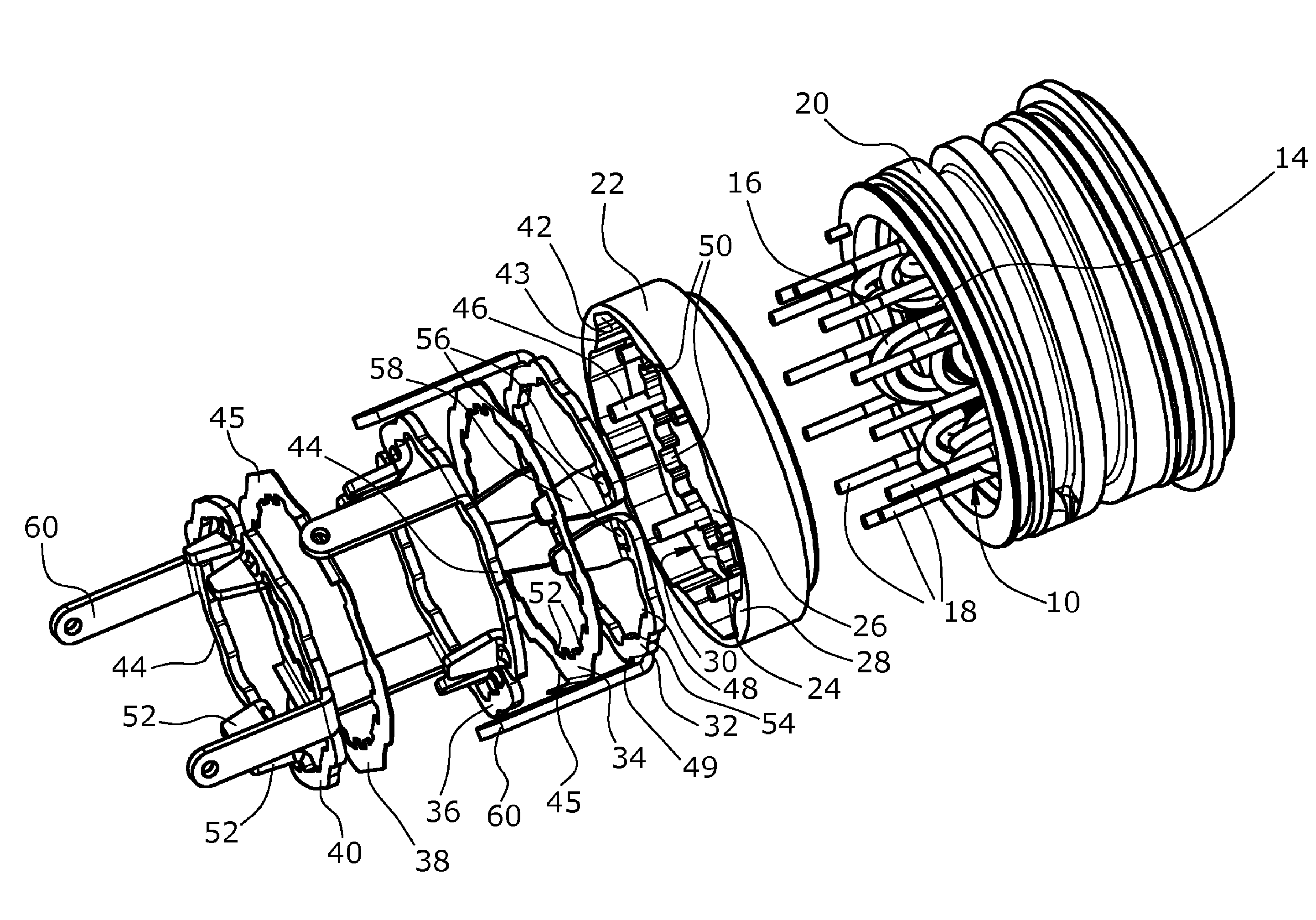

A stator includes a stator stack comprising stator poles, a groove arranged between each of the stator poles, and a coil winding comprising a winding end arranged on each of the stator poles. The winding ends comprise cophasal coil windings and non-cophasal coil windings. A guiding body comprises an axial surface arranged opposite to the stator stack, a wall extending perpendicular to a central axis of the stator stack, and guiding body contours. Connecting bodies connect the cophasal coil windings with each other. Each of the connecting bodies comprises a connecting body contour. The connecting body contours engage with the corresponding guiding body contours. Isolating bodies electrically isolate the non-cophasal coil windings from each other. The winding ends extend at a common axial end of the stator beyond the stator stack into the guiding body.
