COLOR REPRODUCTION SYSTEM AND COLOR REPRODUCTION METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 6, 2016
app pub date -
Jul 22, 2014
filing date -
Nov 12, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

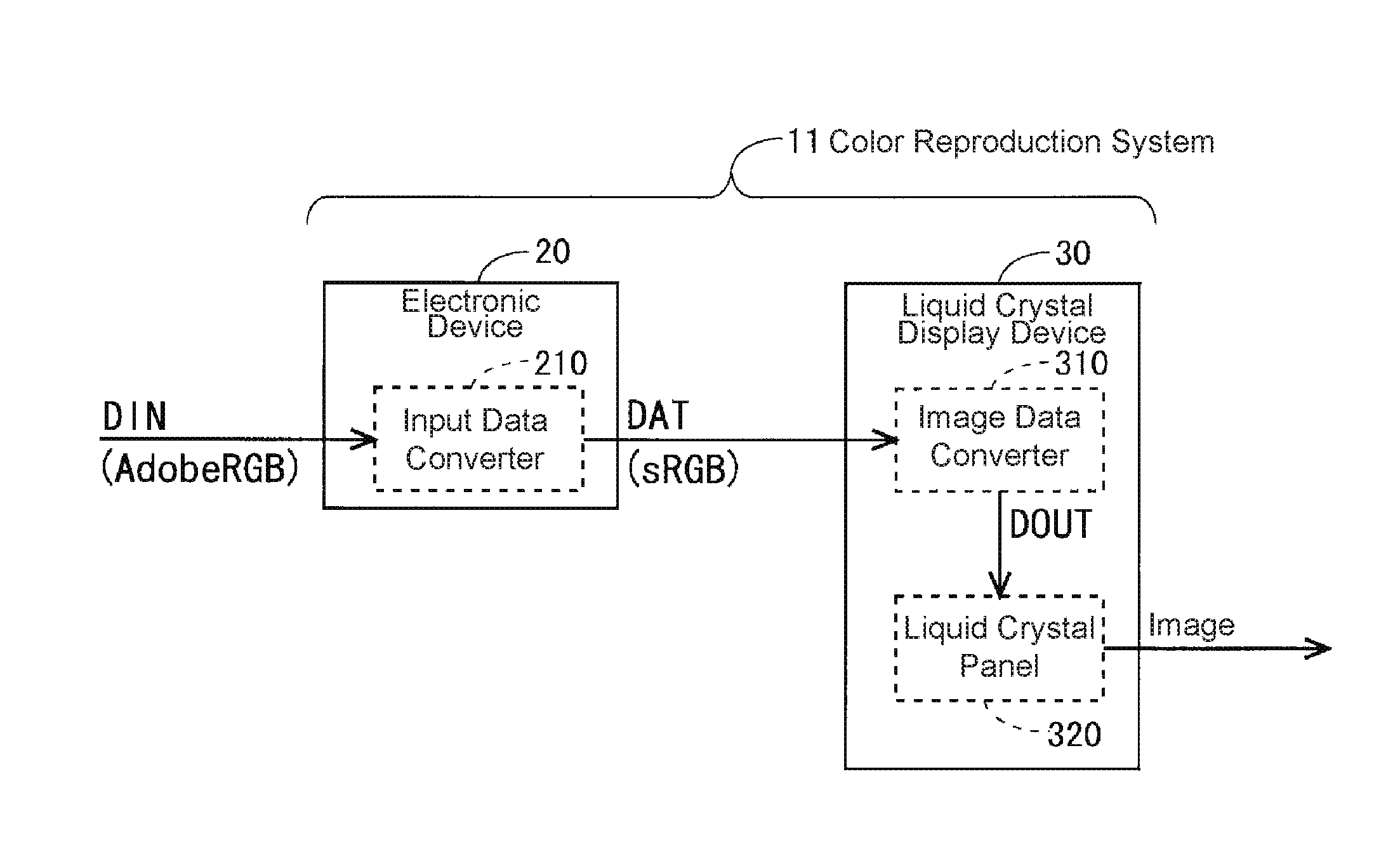

Provided is a color reproduction system that prevents differences in display image coloring due to a primary device and can also be produced more easily than when using conventional technologies. The color reproduction system includes: an electronic device that includes an input data converter that performs a color gamut conversion process to input data (DIN) in accordance with the color gamut of the input data (DIN) and a color gamut specified by a prescribed standard (such as sRGB or bg-sRGB); and a liquid crystal display device that includes an image data converter and a liquid crystal panel. The image data converter performs a color gamut conversion process on image data (DAT) sent from the electronic device in accordance with the color gamut specified by the prescribed standard and the color gamut of the liquid crystal panel, and the liquid crystal panel displays an image using the image data (DAT). In this configuration, only an RGB signal compliant with the prescribed standard is sent from the electronic device to the liquid crystal display device.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| WO | A1 | WO2015072181 | Jul 22, 2014 |
International Classification(s)
- 2014 Application Filing Year
- G09G Class
- 4280 Applications Filed
- 3761 Patents Issued To-Date
- 87.88 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G09G Class
- 12.36 % this patent is cited more than
- 9 Age
