Display panel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 17, 2018
Grant Date -
Oct 6, 2016
app pub date -
Dec 18, 2015
filing date -
Apr 2, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

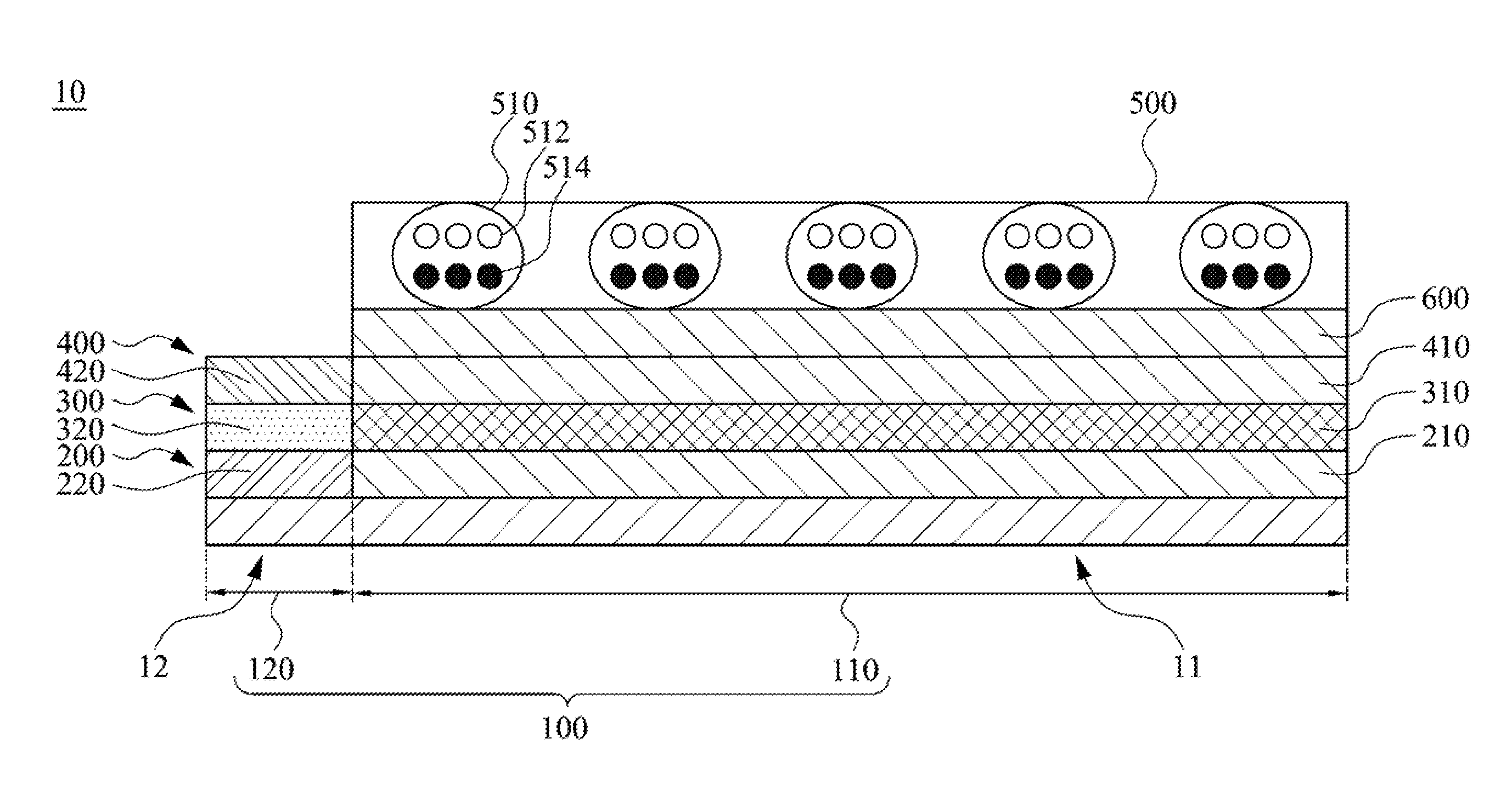

A display panel includes a flexible substrate, a first conductive layer, an insulating layer, a second conductive layer and a display layer. The flexible substrate includes a central area and at least one peripheral area. The first conductive layer is disposed on the flexible substrate. The insulating layer is disposed on the first conductive layer. The insulating layer includes a central insulating portion and at least one peripheral insulating portion. The peripheral insulating portion is located above the peripheral area. The central insulating portion is located above the central area. The peripheral insulating portion is more flexible than the central insulating portion. The second conductive layer is disposed on the insulating layer, and the insulating layer separates the first conductive layer from the second conductive layer. The display layer is disposed on the second conductive layer.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G02B Class
- 9095 Applications Filed
- 7457 Patents Issued To-Date
- 82 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G02B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 17, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 17, 2030 |
