CONTENT CONDITION DETERMINATION APPARATUS AND CONTENT CONDITION DETERMINATION METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 6, 2016
app pub date -
Mar 25, 2016
filing date -
Mar 31, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

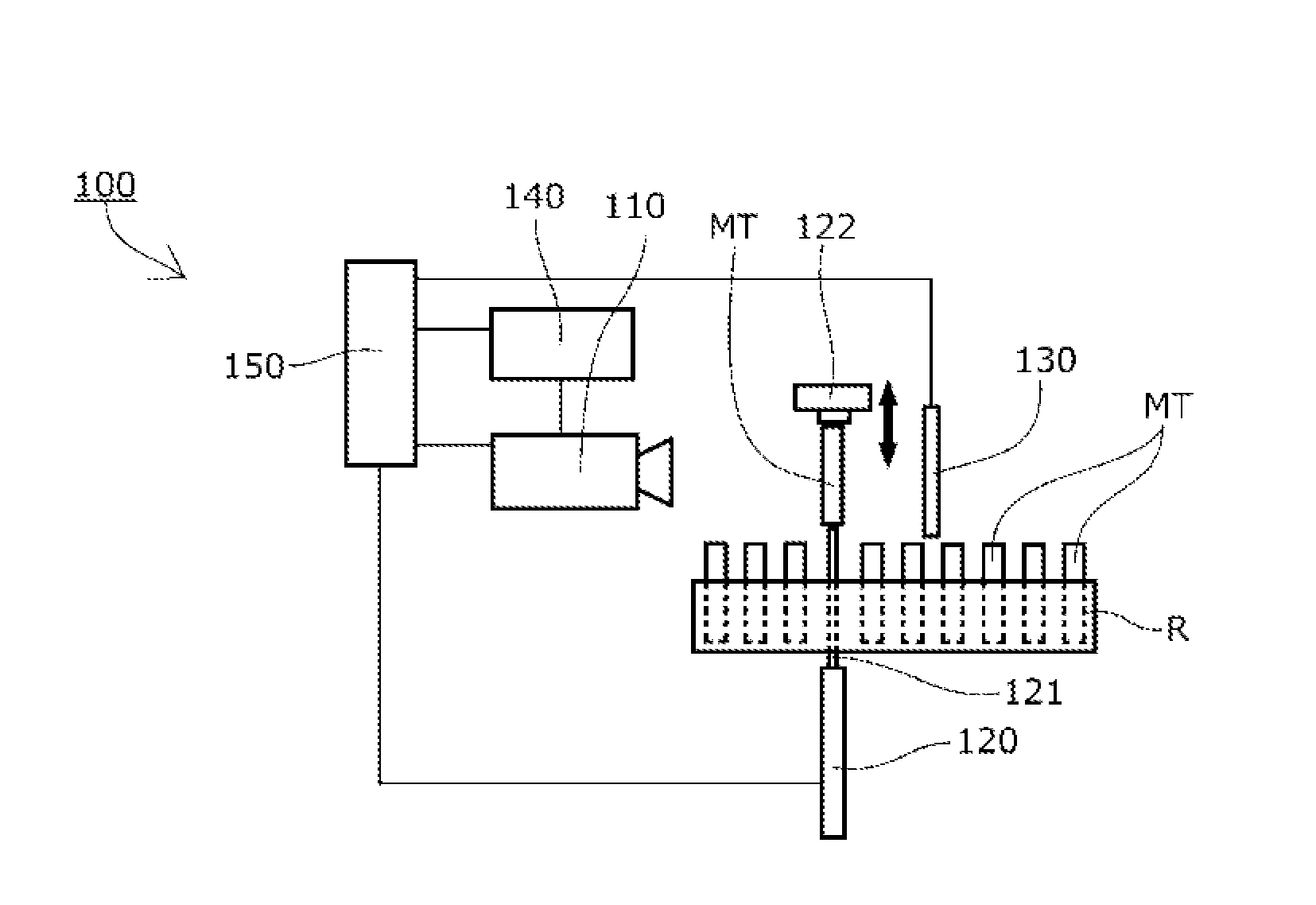

An object of the present invention is to provide a content condition determination apparatus and a content condition determination. Method capable of efficiently determining the conditions of contents in drug-discovery storage tubes a short time using a simple configuration. A content condition determination apparatus includes a tube moving mechanism 120 that moves drug-discovery storage tubes MT to an imaging position, a lighting unit 130 that projects transmitted light, and a control section 150 that controls processing and operation of an imaging unit 110, an image processing section 140, the tube moving mechanism 120, and the lighting unit 130. The lighting unit 130 has an infrared light projection section 131. The control section 150 is configured to allow the light projection the lighting unit 130 and the imaging by the imaging unit 110 to be performed in an interlocking manner.
First Claim
Other Claims data not available
