RETENTION ASSEMBLY FOR A CONDUIT ON A CRANE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Mar 30, 2016
filing date -
Mar 31, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

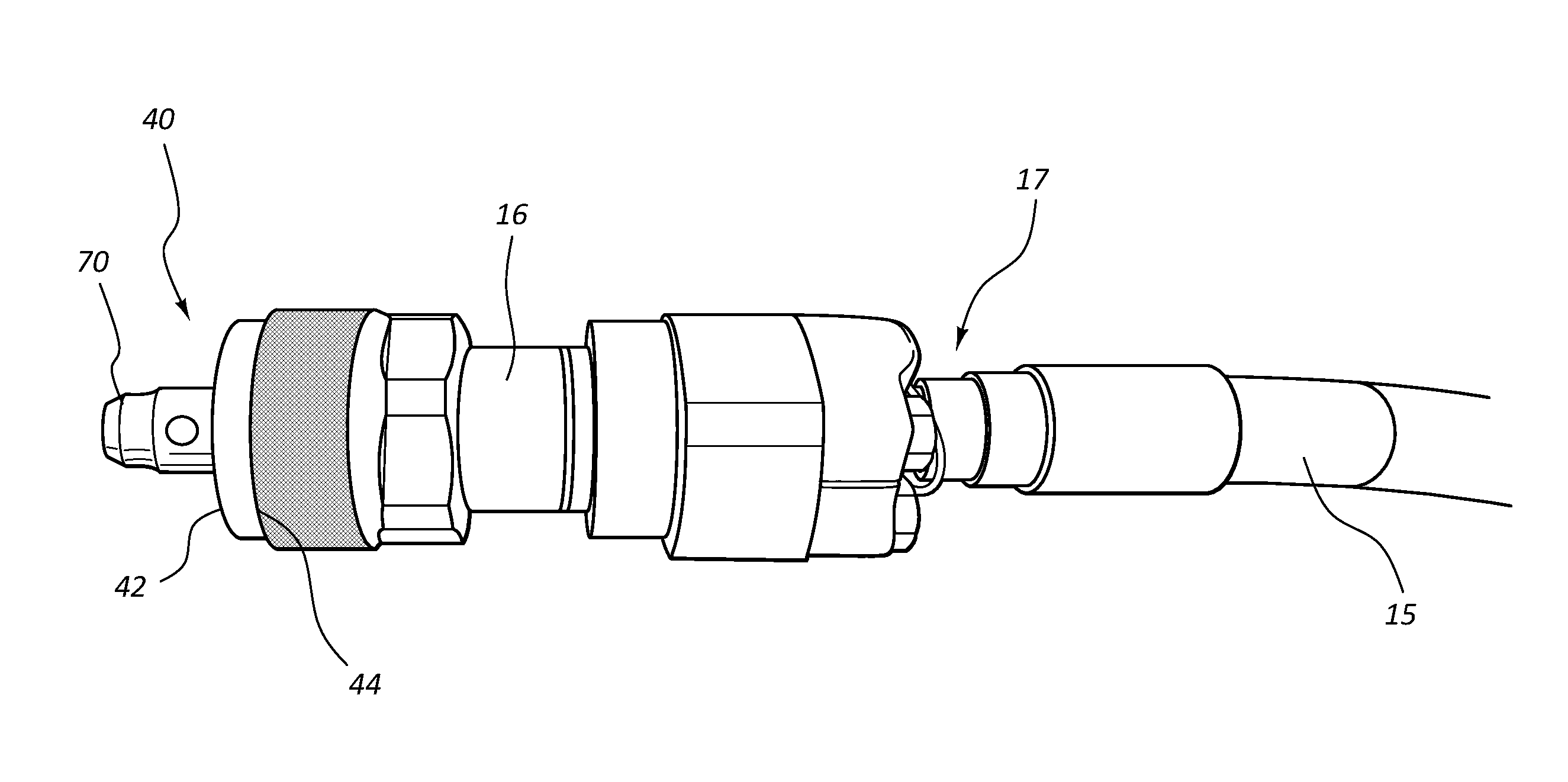

A retention assembly to support and couple a conduit to a mounting bracket on a crane includes at least one mounting bracket and at least one conduit with at least one end with a connection fitting. A plug is removably coupled to the connection fitting. The plug includes a first end and a second end spaced apart from the first end. The plug also includes a stud having a first end and a second end spaced apart from the first end, and a longitudinal axis extending between the first end of the stud and the second end of the stud. The second end of the stud is configured to extend away from the first end of the plug. A retainer is configured to couple with the stud to retain the conduit proximate the at least one mounting bracket.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16L Class
- 0 % this patent is cited more than
- 9 Age
