Electromagnetic shield
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 19, 2020
Grant Date -
Oct 6, 2016
app pub date -
Mar 20, 2014
filing date -
Mar 21, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

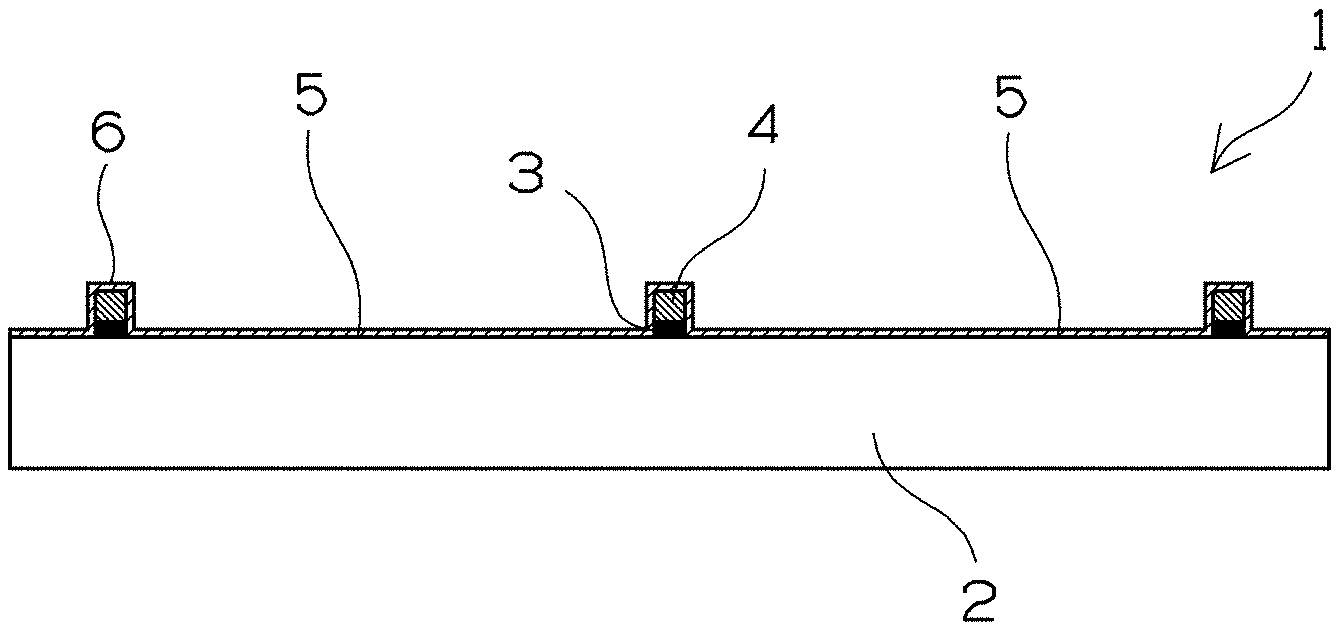

There is provided an inexpensive electromagnetic shield that can achieve exceptional shielding and display visibility characteristics, and provide high environmental resistance as necessary. In an electromagnetic shield (1), an intermediate layer (3) is formed on a glass substrate (2) comprising soda lime glass, an electroconductive layer (4) of Al is formed thereon, and openings (5) are formed by wet etching on the intermediate layer (3) and the electroconductive layer (4) after these layers have been formed by sputtering or vacuum deposition. Furthermore, an ITO layer (6) is formed on the entire glass surface including the intermediate layer (3) and the electroconductive layer (4) after the openings (5) are formed. In this configuration, the intermediate layer (3) comprises a mixture of at least one metal selected from chromium, molybdenum, and tungsten, and at least one oxide selected from oxides of silicon, oxides of aluminum, and oxides of titanium.
