Article storage facility
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 17, 2018
Grant Date -
Oct 6, 2016
app pub date -
Nov 12, 2013
filing date -
Nov 12, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

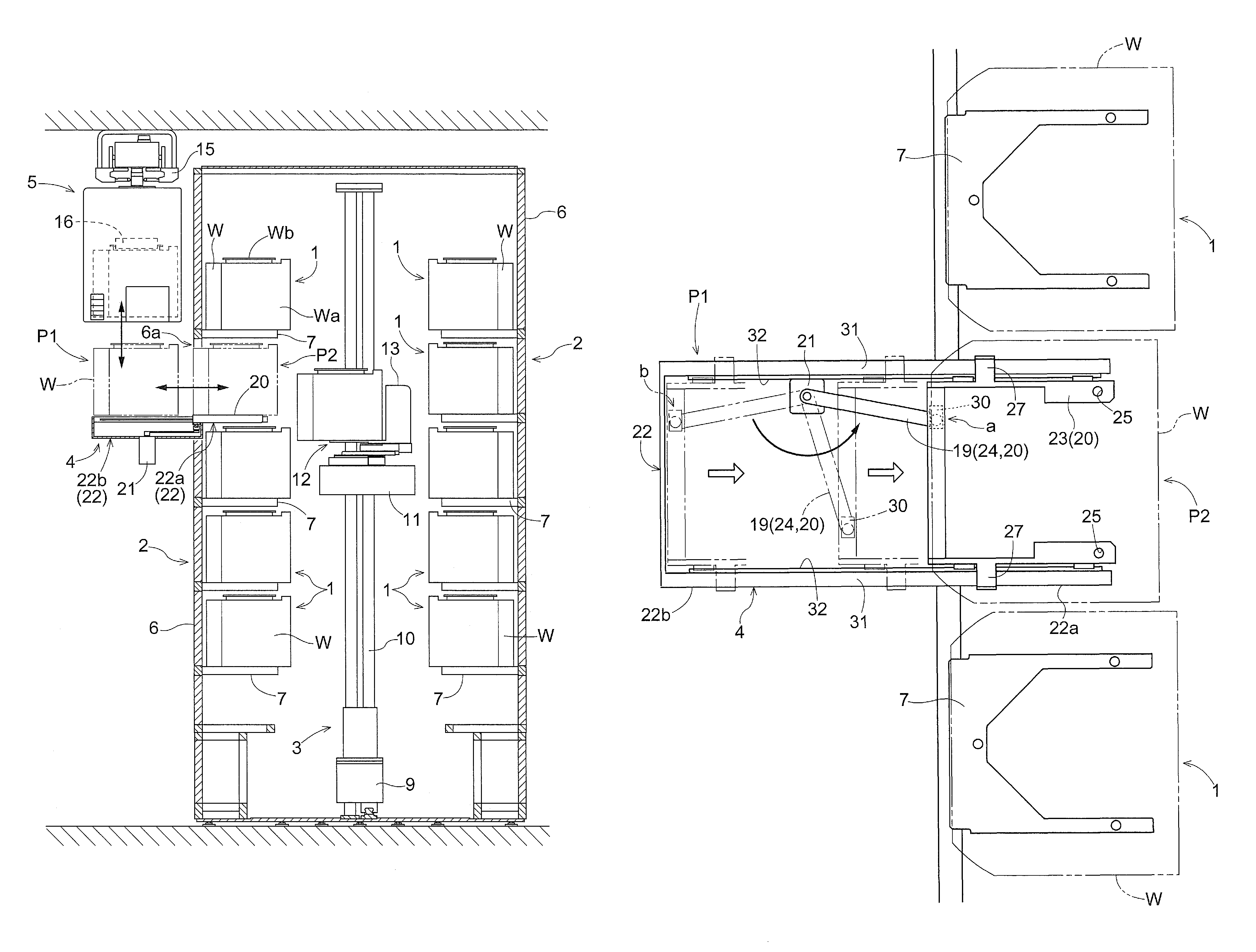

An article storage facility is provided in which a back side transport device can be installed while reducing any reduction in the storage efficiency of the article storage facility. A back side transport device (4) is provided which can support and transport an article (W) between an outside location (P1) located rearward of a back face of the article storage rack (2) and an inside location (P2) located forwardly of the back face of the article storage rack (2). The inside location (P2) is defined between storage sections (1) arranged along the rack vertical direction. And the back side transport device (4) includes a receiving support portion (20) for receiving and supporting an article (W), and an actuating operation portion (21) for actuating the receiving support portion (20) in order to move the article (W) to the inside location (P2) and to the outside location (P1). The actuating operation portion (21) is provided rearward of articles (W) stored in the storage sections (1) along the rack fore and aft direction.
