OPTICAL FIBER CONNECTOR APPARATUS AND ENDOSCOPE SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 8, 2016
filing date -
Feb 17, 2014
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

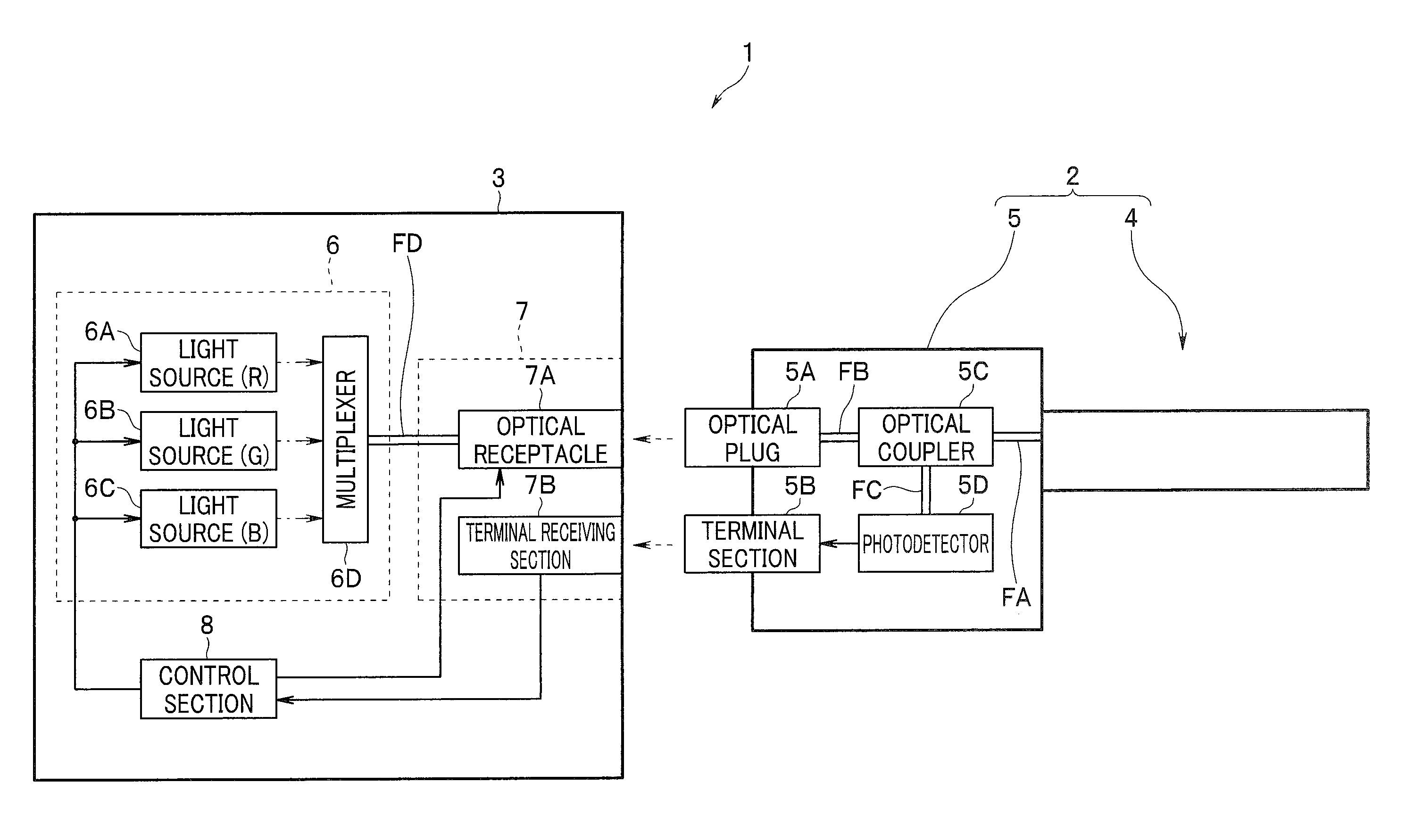

An optical fiber connector apparatus includes: an optical receptacle including a first optical fiber and an emission surface from which light transmitted by the first optical fiber is emitted; an optical plug including an incident surface upon which the light emitted from the emission surface is incident and a second optical fiber that transmits the light incident upon the incident surface; a sleeve that holds the emission surface and the incident surface, with the emission surface and the incident surface being arranged so as to be opposite to each other; a piezoelectric element provided to one of the optical receptacle and the optical plug; a spring mechanism provided to another of the optical receptacle and the optical plug; and a control section configured to control the piezoelectric element according to a light quantity of the light transmitted by the second optical fiber.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP5911648 | Sep 11, 2014 |
| EP | A1 | EP3108804 | Sep 11, 2014 |
| WO | A1 | WO2015122041 | Sep 11, 2014 |
| CN | A | CN105813541 | Sep 11, 2014 |
International Classification(s)
- 2016 Application Filing Year
- G02B Class
- 10130 Applications Filed
- 7990 Patents Issued To-Date
- 78.88 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G02B Class
- 15.08 % this patent is cited more than
- 9 Age
