CONTROL DEVICE FOR FUEL INJECTION VALVE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 29, 2016
app pub date -
Mar 22, 2016
filing date -
Mar 22, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

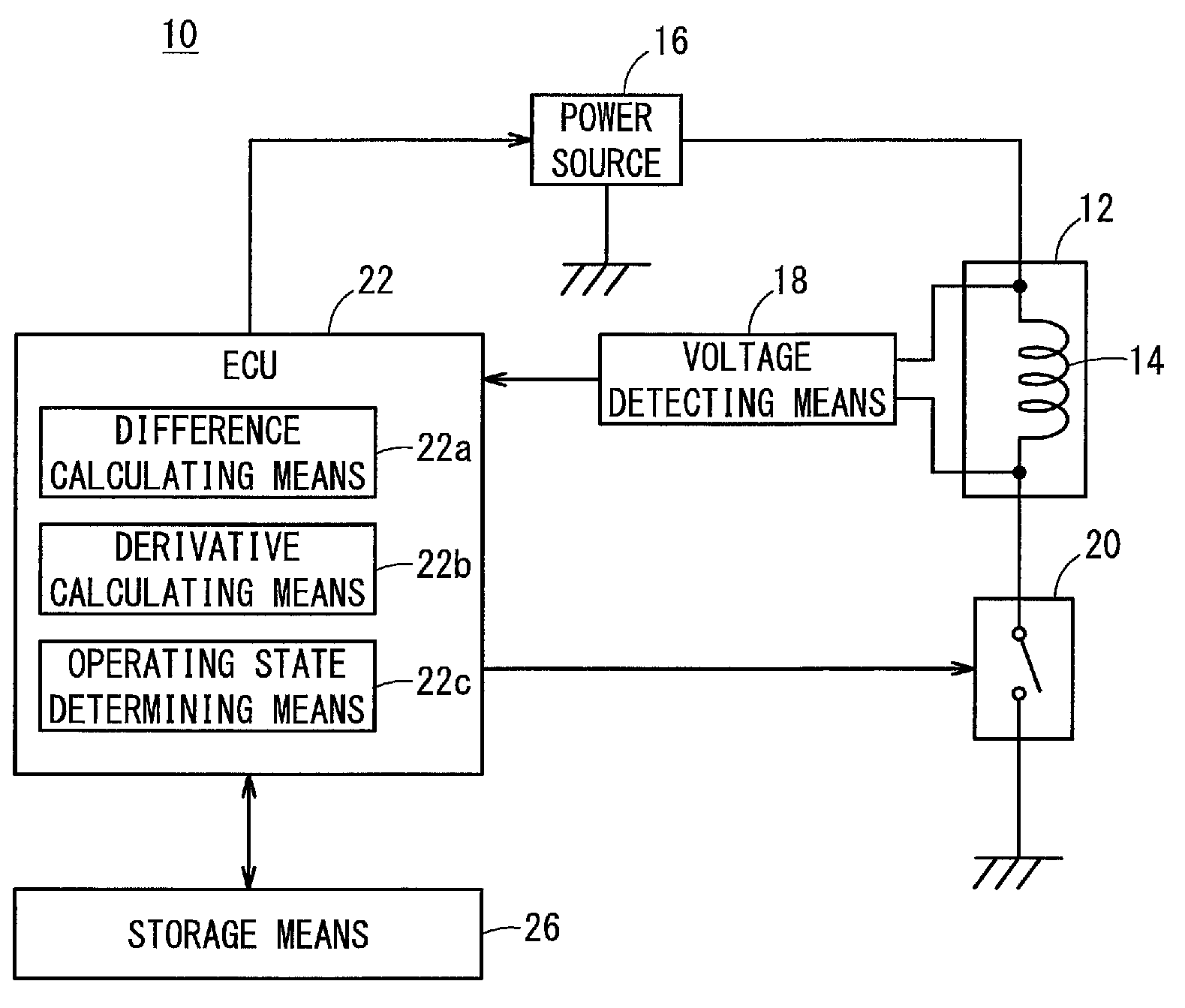

A control device includes a difference calculating unit configured to generate a difference waveform composed of the difference between a normal operation waveform, which is a voltage waveform of the fuel injection valve at a time that the fuel injection valve is operating, and a non-operation waveform, which is a voltage waveform of the fuel injection valve at a time that the fuel injection valve is not operating, a derivative calculating unit configured to generate a differentiated waveform obtained by differentiating the difference waveform, and an operating state determining unit configured to determine the operating state of the fuel injection valve based on the differentiated waveform.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- F02D Class
- 8.47 % this patent is cited more than
- 9 Age
