Blank and methods of constructing a container from the blank
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Issued Date -
N/A
app pub date -
Jun 6, 2016
filing date -
Feb 29, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

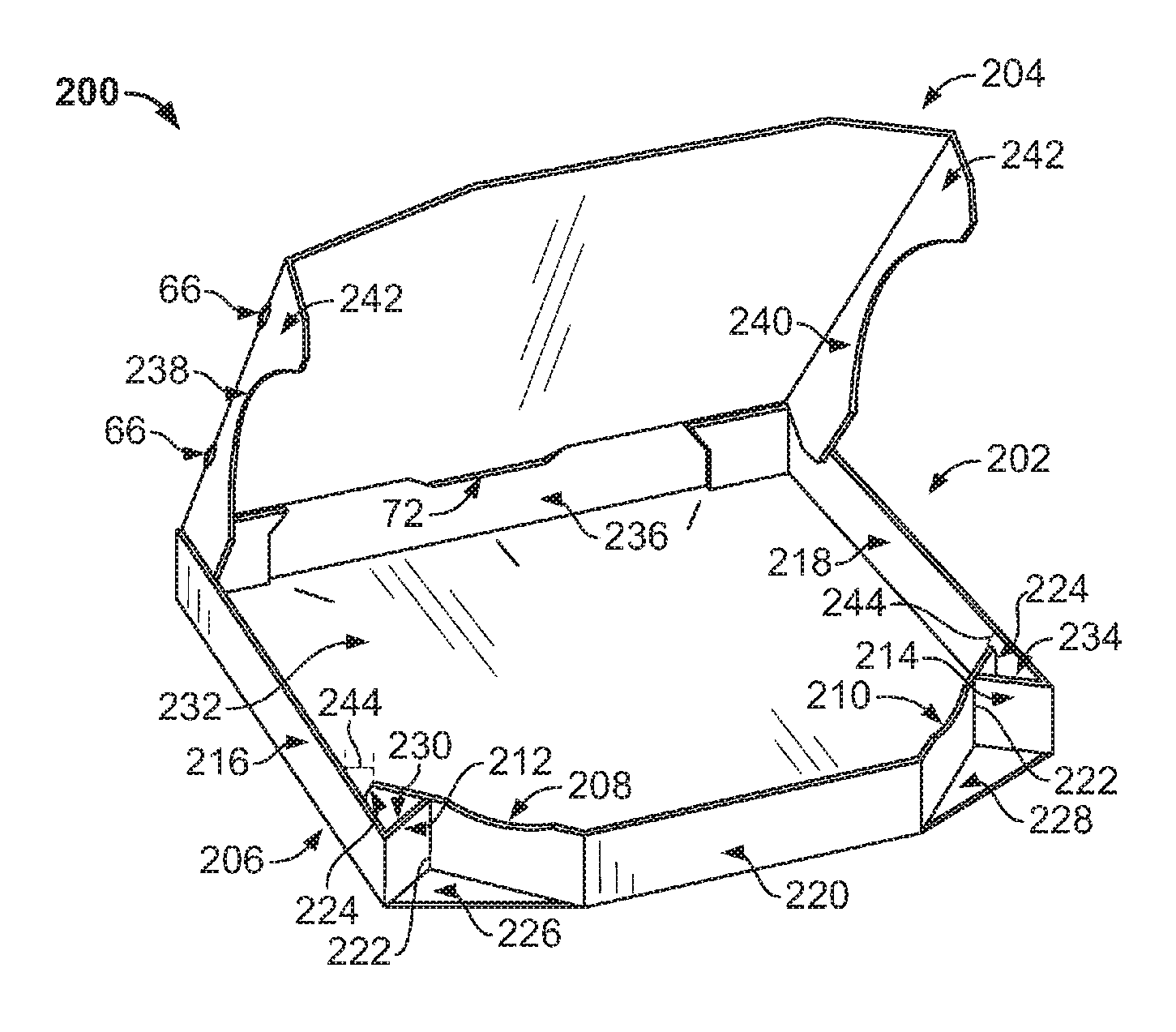

A blank of foldable sheet material is provided. The blank includes a bottom panel, a first bottom side panel and a second opposing bottom side panel extending from opposing side edges of the bottom panel, and a front panel extending from a front edge of the bottom panel. The front panel includes opposing side edges. The blank also includes a first and a second diagonal panel extending from a front edge of the first and second bottom side panels, respectively, and a third and a fourth diagonal panel extending from each side edge of the front panel. The third and fourth diagonal panels have a length greater than a length of the first and second diagonal panels. The blank includes a first and a second corner panel, wherein the first corner panel is hingedly connected to the first and third diagonal panels and the second corner panel is hingedly connected to the second and fourth diagonal panels.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B31B Class
- 200 Applications Filed
- 131 Patents Issued To-Date
- 65.50 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B31B Class
- 36.02 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 26, 2029 |
