DISPLAY DEVICES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 22, 2016
app pub date -
Mar 3, 2016
filing date -
Mar 18, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

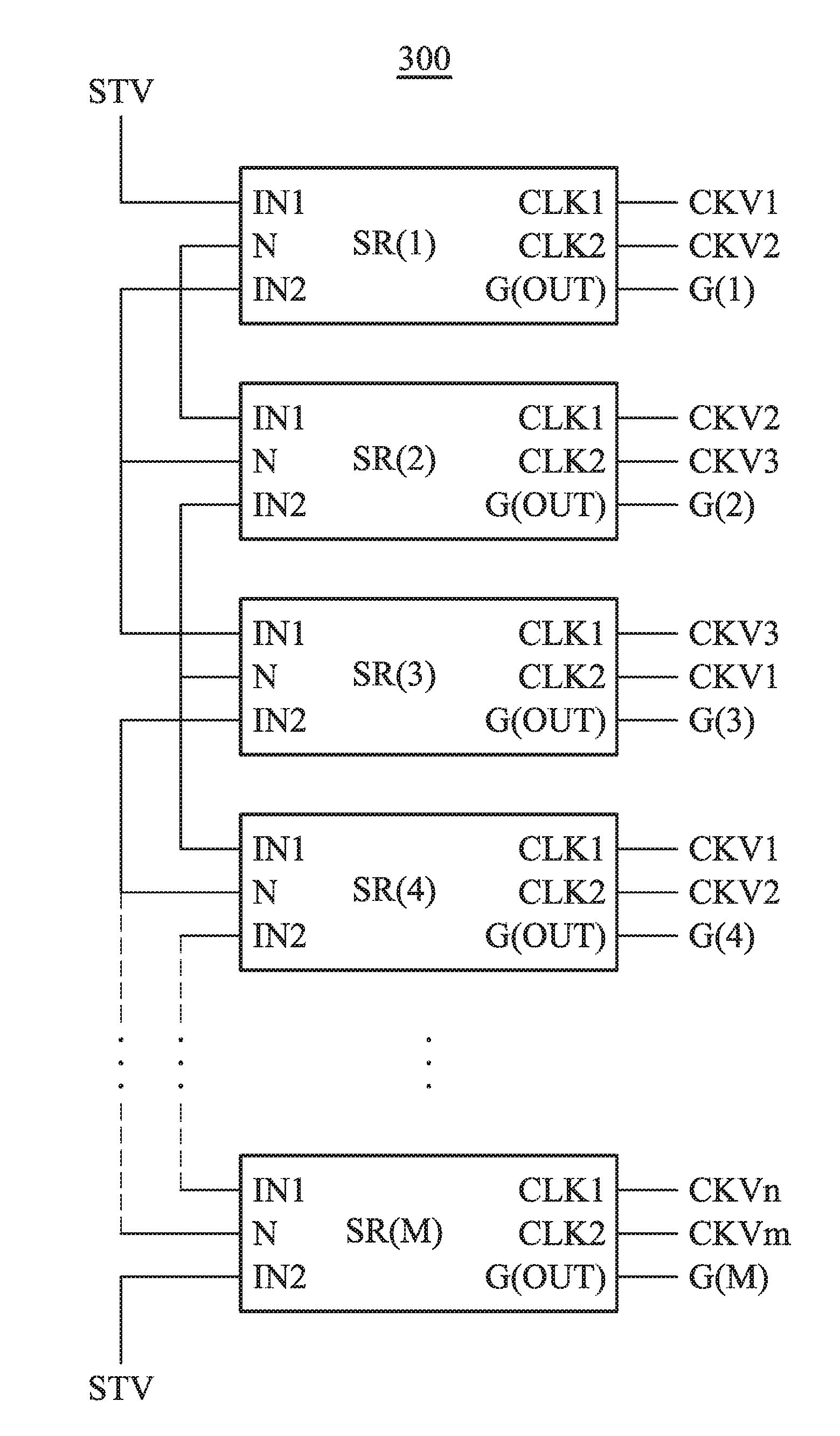

A display device includes a driving circuit and an output circuit. The driving circuit generates a first output signal at a first output terminal according to an input signal and a first clock signal. The output circuit is coupled to the driving circuit at the first output terminal and generates a gate driving signal at a second output terminal according to the first output signal. The gate driving signal and the first output signal have the same waveform. The output circuit includes a first output transistor has a first terminal coupled to a first power source outputting a first operating voltage and has a second terminal coupled to the second output terminal and a second output transistor has a first terminal coupled to a second power source outputting the second operating voltage and has a second terminal coupled to the second output terminal.
