PRESSURE SENSOR FOR TOUCH PANEL
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 22, 2016
app pub date -
Mar 18, 2015
filing date -
Mar 18, 2015
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

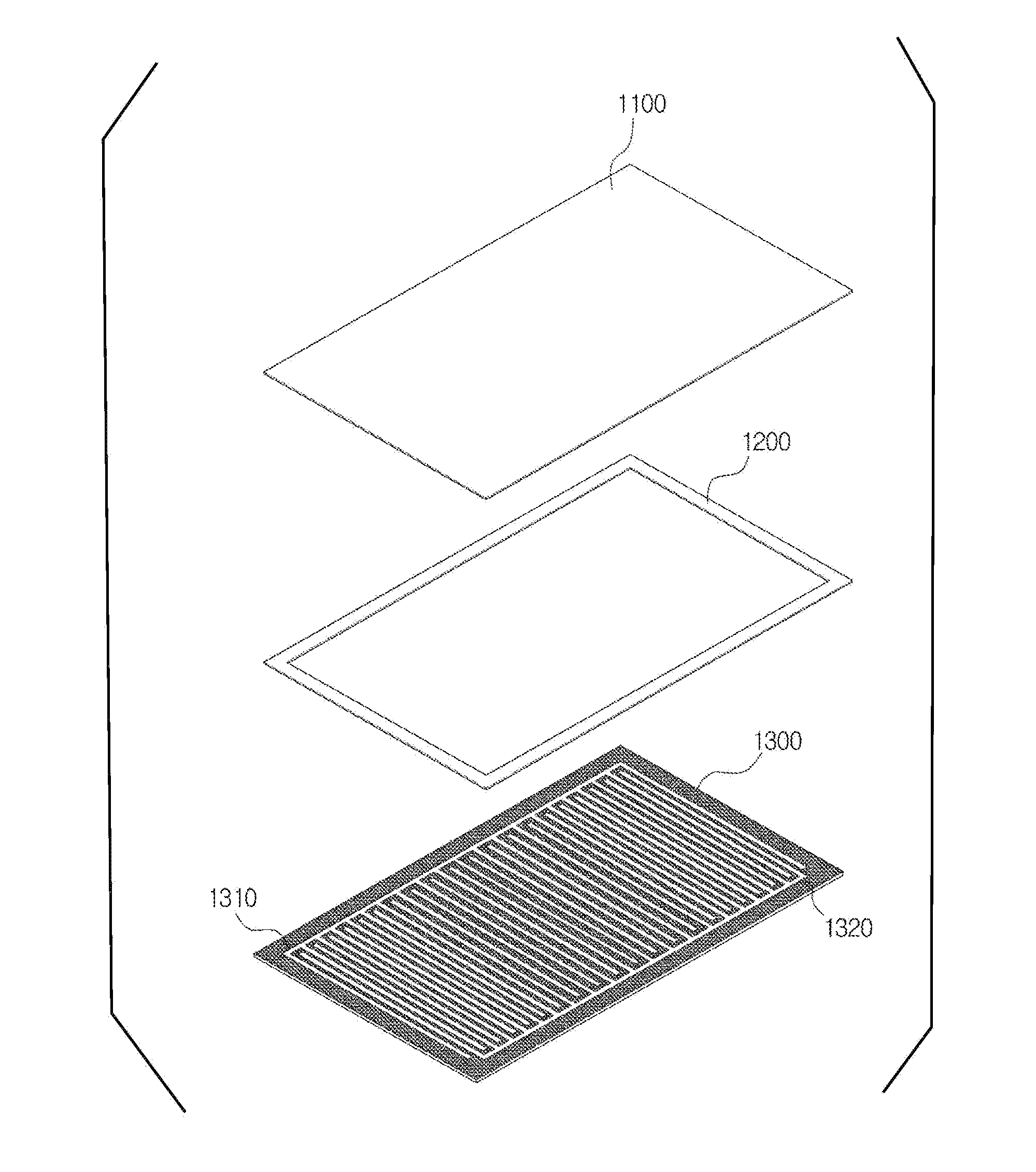

Provided is a pressure sensor for a touch panel, including a signal input member configured to have conductors patterned thereon in an interdigitated form on a substrate, a spacer disposed at a corner where the conductor patterns are not formed on the substrate of the signal input member, and a piezo film disposed over the spacer, spaced apart from the signal input member, and configured to have a resistance value varied depending on the amount of pressure applied to the piezo film, wherein an interval between the conductor patterns formed in the signal input member and disposed close to the spacer is smaller than an interval between the conductor patterns formed in the signal input member and disposed at the farthest place from the spacer.
First Claim
Other Claims data not available
