WAFER-LEVEL MAGNETIC FIELD PROGRAMMING OF MAGNETIC FIELD SENSORS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 22, 2016
app pub date -
Jun 29, 2015
filing date -
Mar 16, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

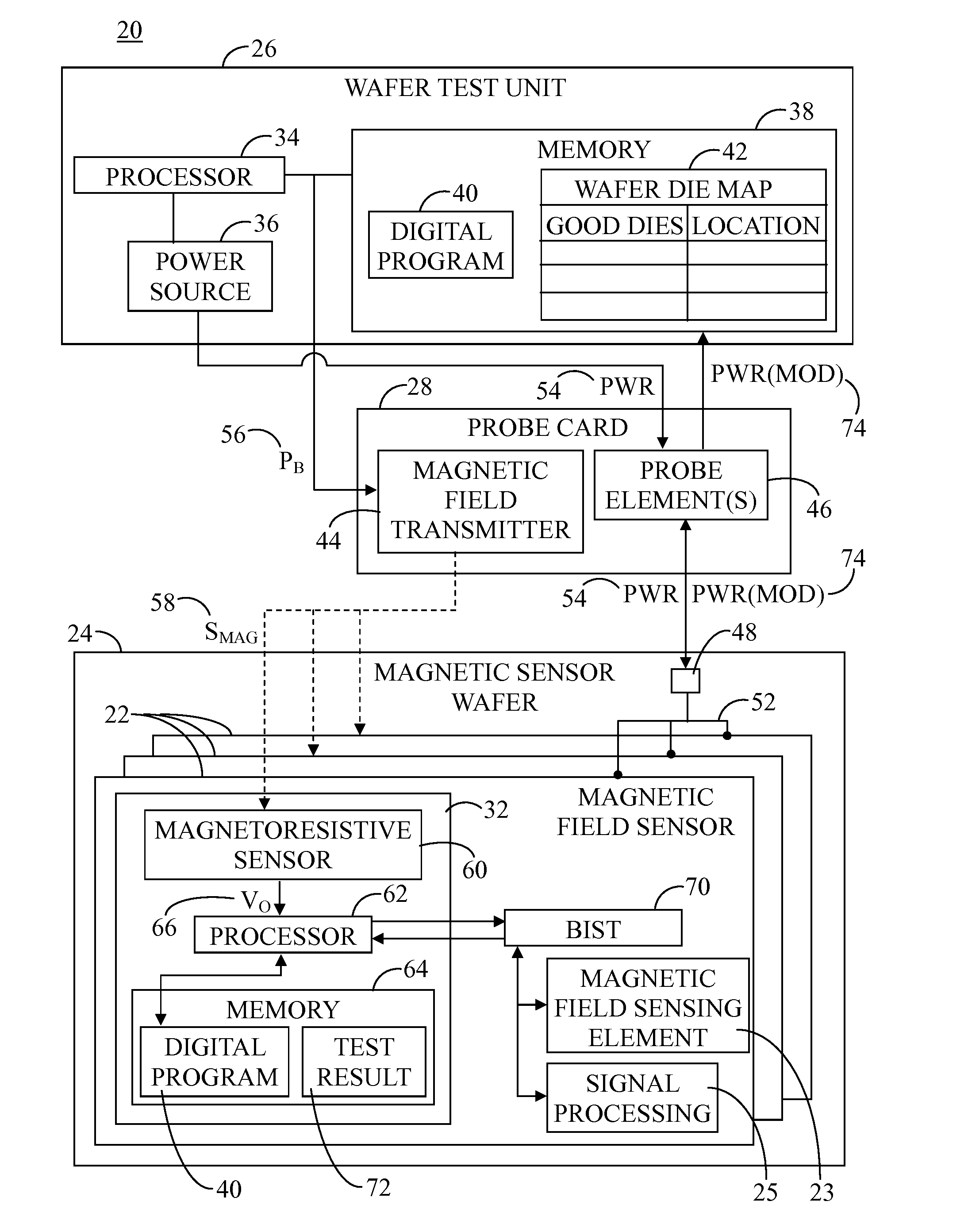

A system for programming magnetic field sensors formed on a wafer includes a magnetic field transmitter that outputs a digital test program as a magnetic signal. At least one digital magnetic sensor (e.g., magnetoresistive sensor) is formed with the magnetic field sensors on the wafer and is distinct from the magnetic field sensors. The digital magnetic sensor detects and receives the magnetic signal. A processor formed on the wafer converts the magnetic signal to the digital test program and the digital test program is stored in memory on the wafer in association with one of the magnetic field sensors. The magnetic field transmitter does not physically contact the wafer, but can flood an entire surface of the wafer with the magnetic signal so that all of the magnetic field sensors are concurrently programmed with the digital test program.
First Claim
Other Claims data not available
