Oxidative Coupling of Methane Implementations for Olefin Production
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 22, 2016
app pub date -
Mar 21, 2016
filing date -
Jan 9, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

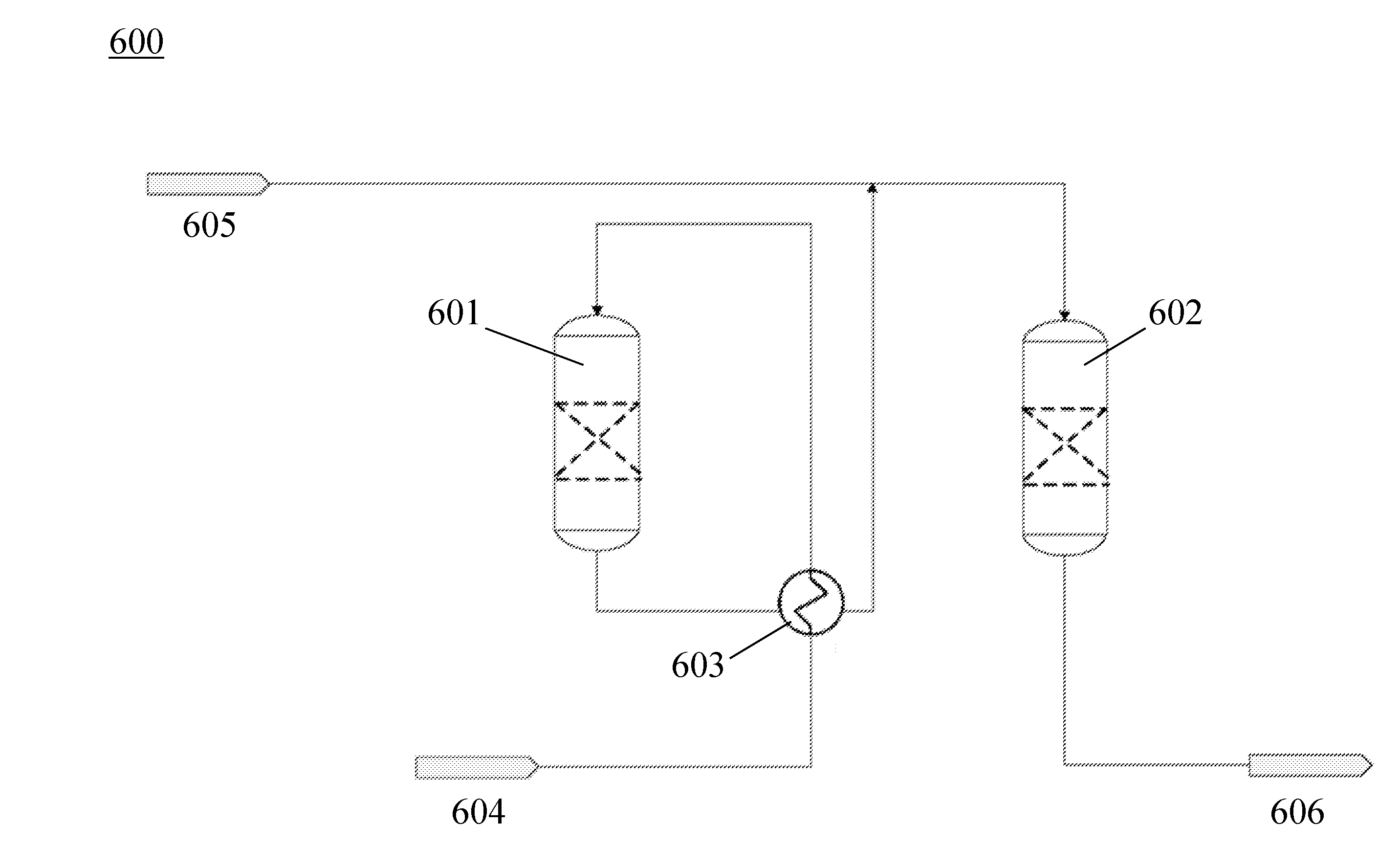

The present disclosure provides oxidative coupling of methane (OCM) systems for small scale and world scale production of olefins. An OCM system may comprise an OCM subsystem that generates a product stream comprising C2+ compounds and non-C2+ impurities from methane and an oxidizing agent. At least one separations subsystem downstream of, and fluidically coupled to, the OCM subsystem can be used to separate the non-C2+ impurities from the C2+ compounds. A methanation subsystem downstream and fluidically coupled to the OCM subsystem can be used to react H2 with CO and/or CO2 in the non-C2+ impurities to generate methane, which can be recycled to the OCM subsystem. The OCM system can be integrated in a non-OCM system, such as a natural gas liquids system or an existing ethylene cracker.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 36 Citation Count
- C07C Class
- 98.81 % this patent is cited more than
- 9 Age
