SYSTEM FOR RELATIVE MOVEMENT BETWEEN TWO PLATES AND POSITIONING DEVICE COMPRISING SUCH A MOVEMENT SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 22, 2016
app pub date -
Mar 16, 2016
filing date -
Mar 16, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Loading Importance Indicators...

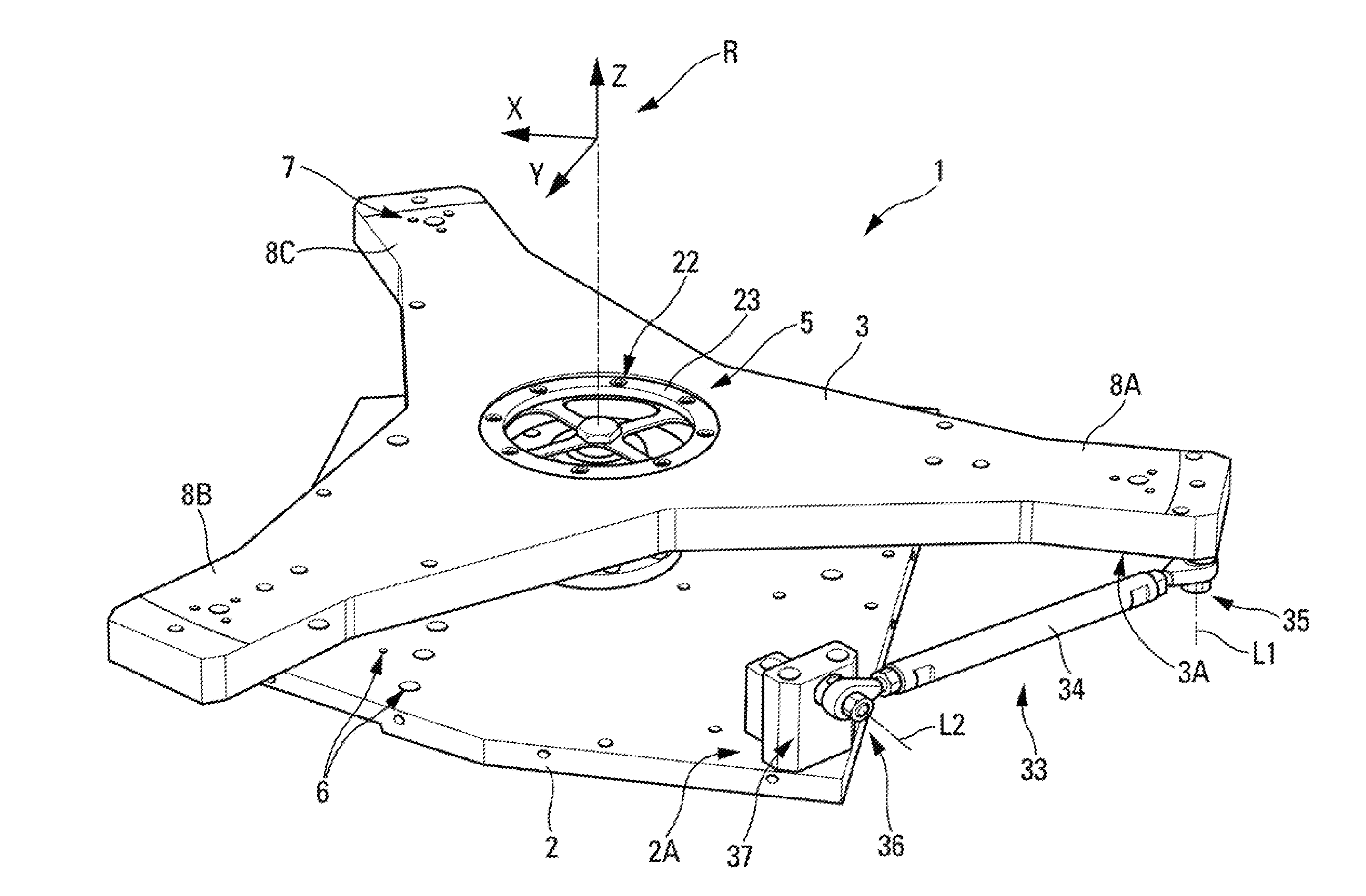

Abstract
A system provides for relative movement between two plates that are substantially parallel to a plane defined by a first direction and a second direction. The system includes a first unit that is configured to allow a relative movement between the two plates in a third direction that is orthogonal to the plane. The first unit also independently prevents a relative movement between the two plates in the plane. The system further includes a second unit that is configured to allow one plate to relatively travel with respect to the other plate about the first and second directions.
First Claim
Other Claims data not available
