Wrench with Adjustable Operating Angle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 22, 2016
app pub date -
Feb 1, 2016
filing date -
Feb 1, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

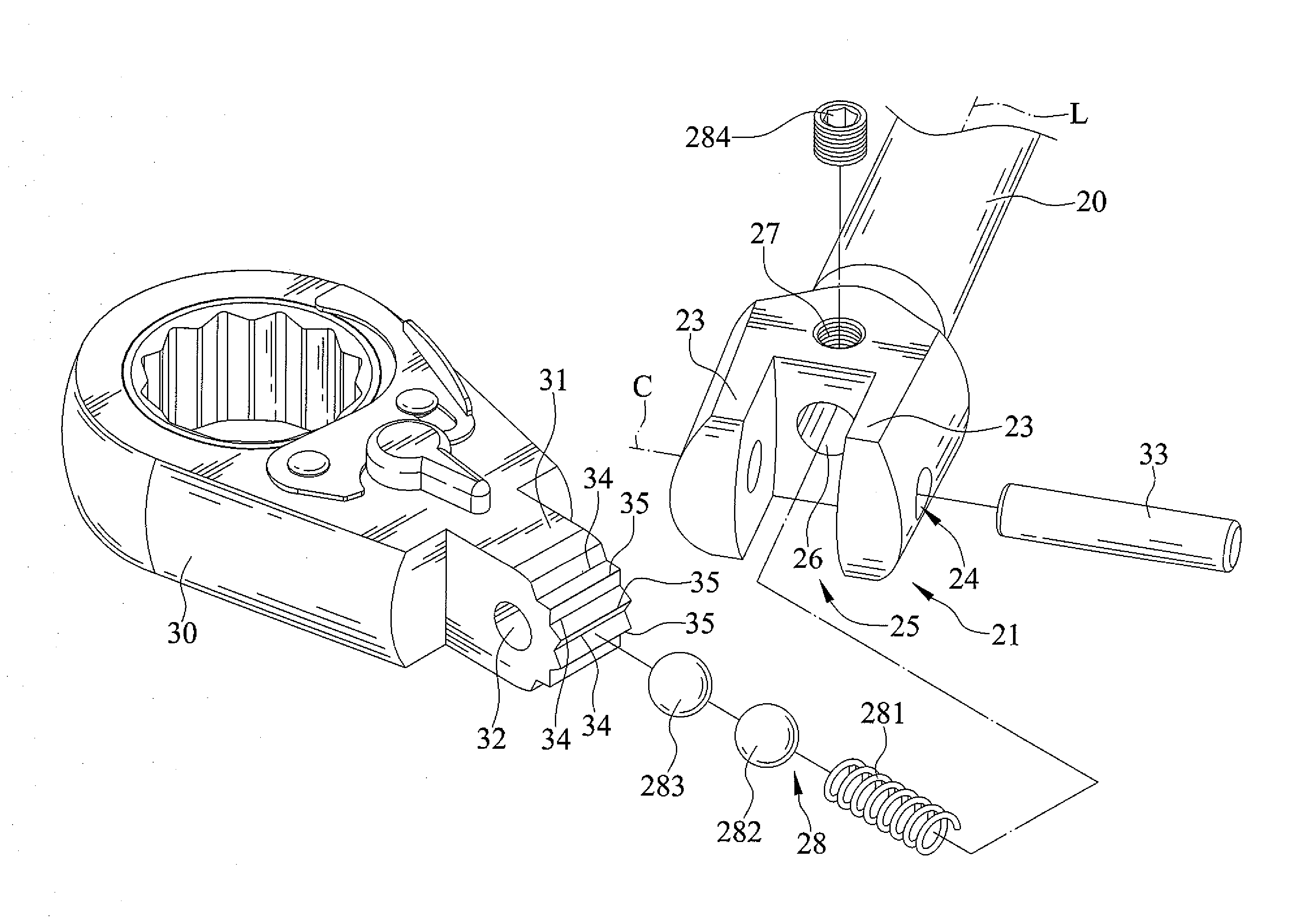

A wrench includes a first member and a second member pivotally connected to the first member. The first member includes an engaging device having a biasing member, a first ball, a second ball, and a control member. One end of the biasing member biases against a bottom of the bore, and the other end of the biasing member biases against the first ball capable of abutting against the second ball. The control member is configured to exit or enter the first member. The second member includes a plurality of notches formed around an outer periphery thereof. When the control member exits the first member, the first ball biases against the second ball to abut against the second member. When the control member enters the first member, the control member abuts against the second ball to engage into one of the notches.
First Claim
