CASTING AND MOLDING EQUIPMENT AND METHOD OF MANUFACTURING CASTING OF AMORPHOUS ALLOY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
May 27, 2016
filing date -
Nov 30, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

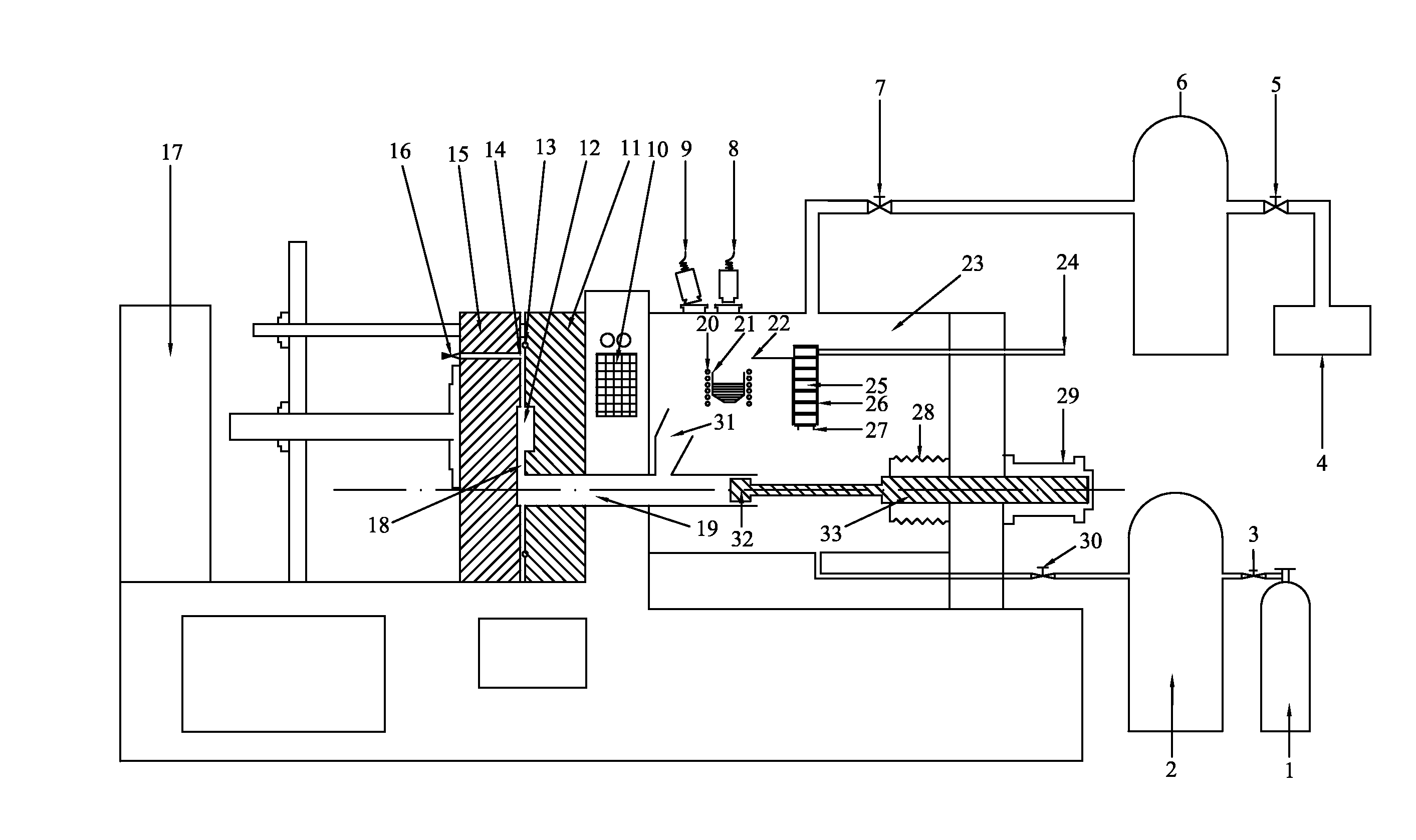

A casting and molding equipment for producing a casting of amorphous alloy, including an injection system, an alloy melting system, a material feeding system, a mold system, a vacuum system, a protective gas supply system, and a vacuum chamber. The alloy melting system is disposed in the vacuum chamber and includes a melting crucible and a heating unit. The heating unit is disposed out of the melting crucible. The injection system includes an injection tube, an injection mechanism, a plunger rod, and an injection piston disposed at one end of the plunger rod. The injection mechanism is adapted to control the injection piston to move in the injection tube. The injection tube includes a pouring gate. The plunger rod, the injection tube, and the injection piston are all disposed in the vacuum chamber. The plunger rod and the vacuum chamber are vacuum sealed via a bellows.
