Indirect measurement in a total liquid ventilation system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 26, 2020
Grant Date -
Sep 22, 2016
app pub date -
Jun 25, 2014
filing date -
Jun 25, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

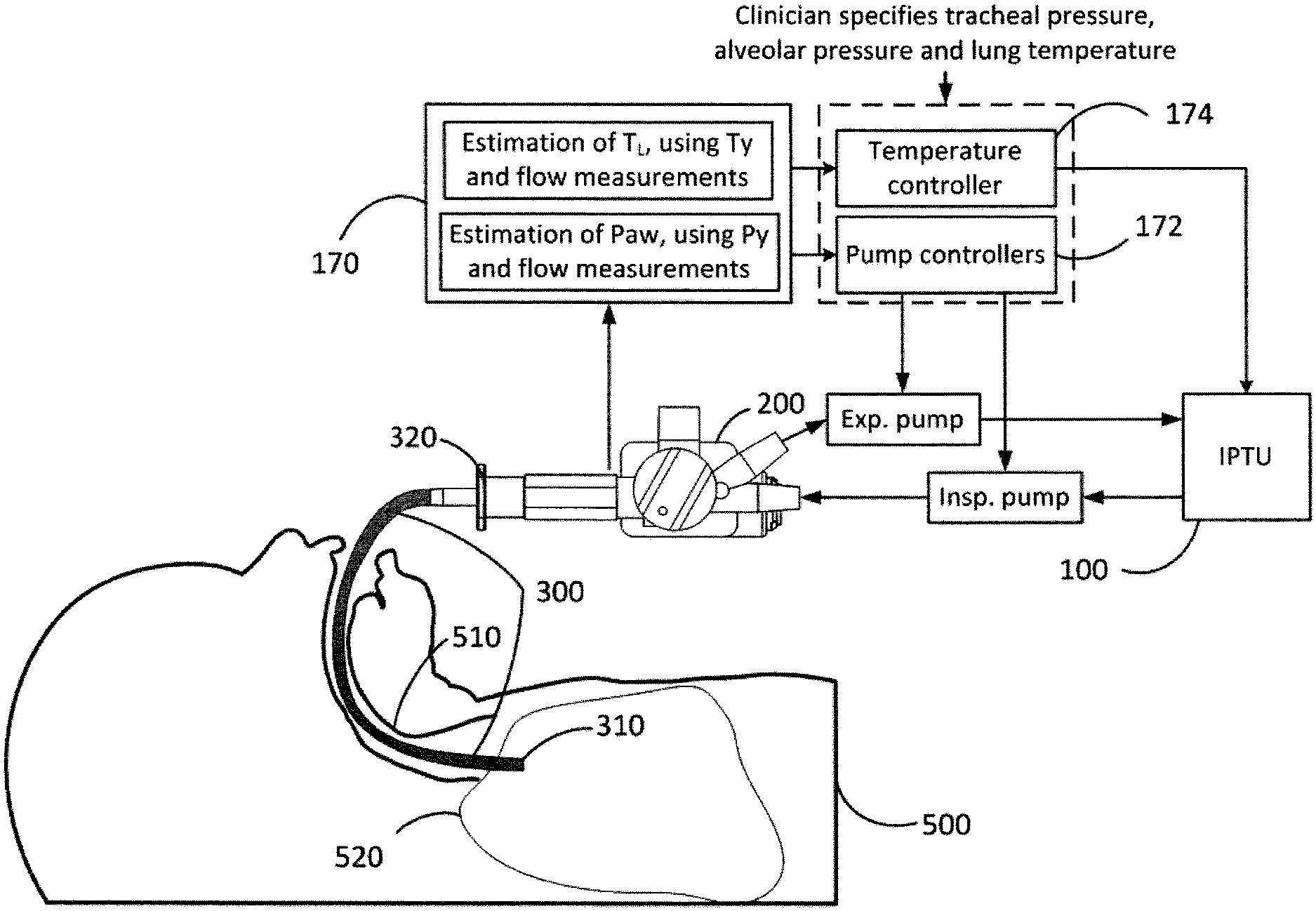

A method, connector and system for obtaining an indirect measurement of a parameter in a patient with a total liquid ventilation (TLV) system. At least one parameter measurement is obtained of a liquid taken in the TLV system comprising an endotracheal tube having a distal end inserted in a patient's trachea. At least one flow measurement is obtained of a liquid taken in the TLV system. Considering a fluid model of the TLV system, the at least one parameter measurement and the least one flow measurement are processed into the indirect measurement of the parameter in the patient. The indirect measurement may be a temperature or pressure. The temperature can be a lung temperature, a blood temperature or an organ temperature. The pressure may be a tracheal pressure or an alveolar pressure.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- A61F Class
- 5198 Applications Filed
- 4375 Patents Issued To-Date
- 84.17 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A61F Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 26, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 26, 2031 |
