SHOCK ABSORBING STRUCTURE AND SHOE TO WHICH THE SHOCK ABSORBING STRUCTURE IS APPLIED
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 22, 2016
app pub date -
Oct 21, 2013
filing date -
Oct 21, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

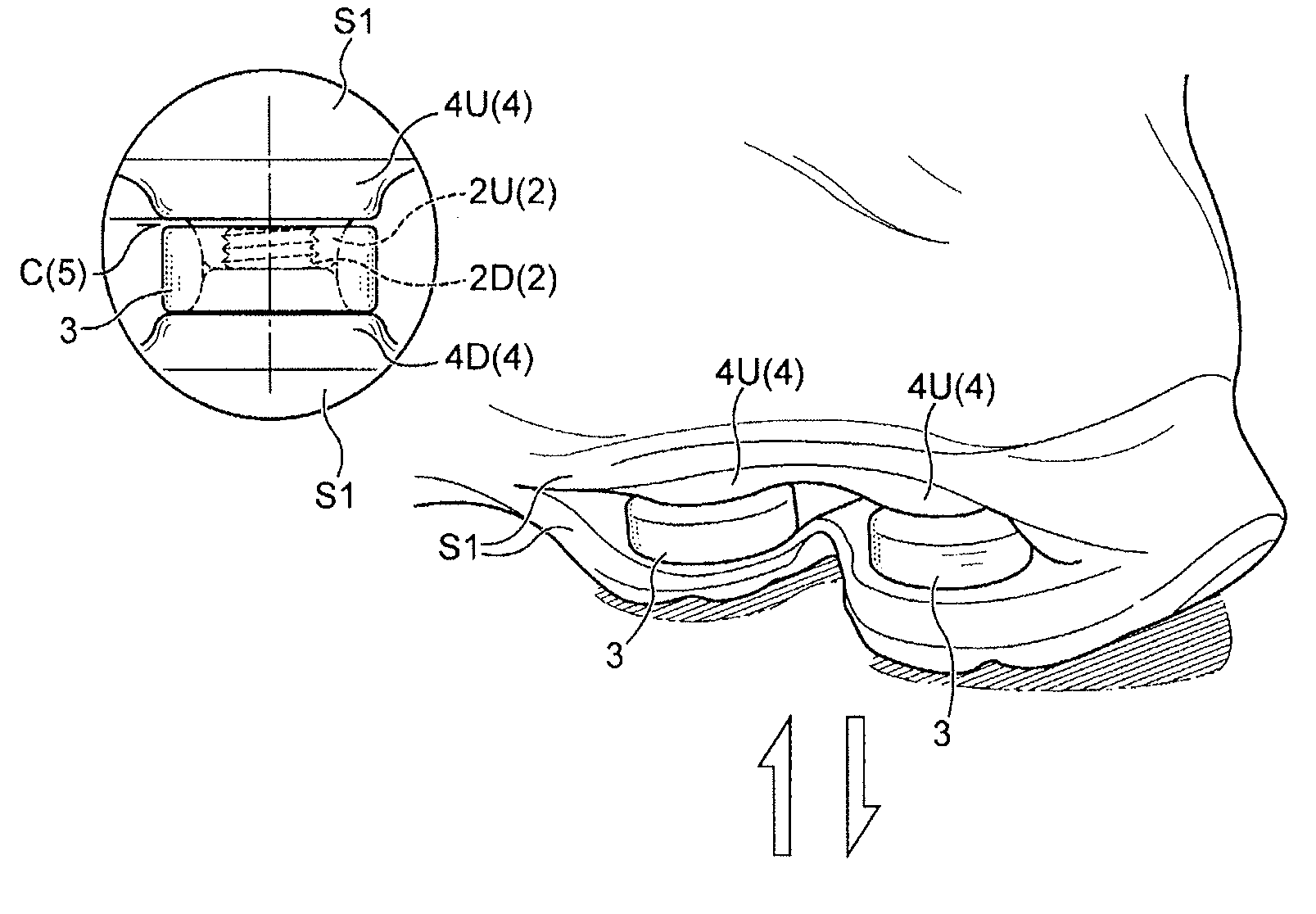

A shock absorbing structure is formed by including a column member, an elastic ring member that is provided by being fitted onto the column member, and upper and lower pressure receiving portions that are connected by the column member, wherein the column member is capable of being deformed and restored at least in a pressure receiving direction, the ring member has an effective working height set to be lower than the column member, and is formed to be in a non-bonded state with the upper and lower pressure receiving portions, and at a time of pressure reception, the column member undergoes compression deformation in the pressure receiving direction first, and thereafter, the ring member undergoes compression deformation in the pressure receiving direction next, whereby multi-stage shock absorbing performance is exhibited.
First Claim
Other Claims data not available
