CONVEYING ROBOT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 15, 2016
app pub date -
Oct 23, 2014
filing date -
Oct 23, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

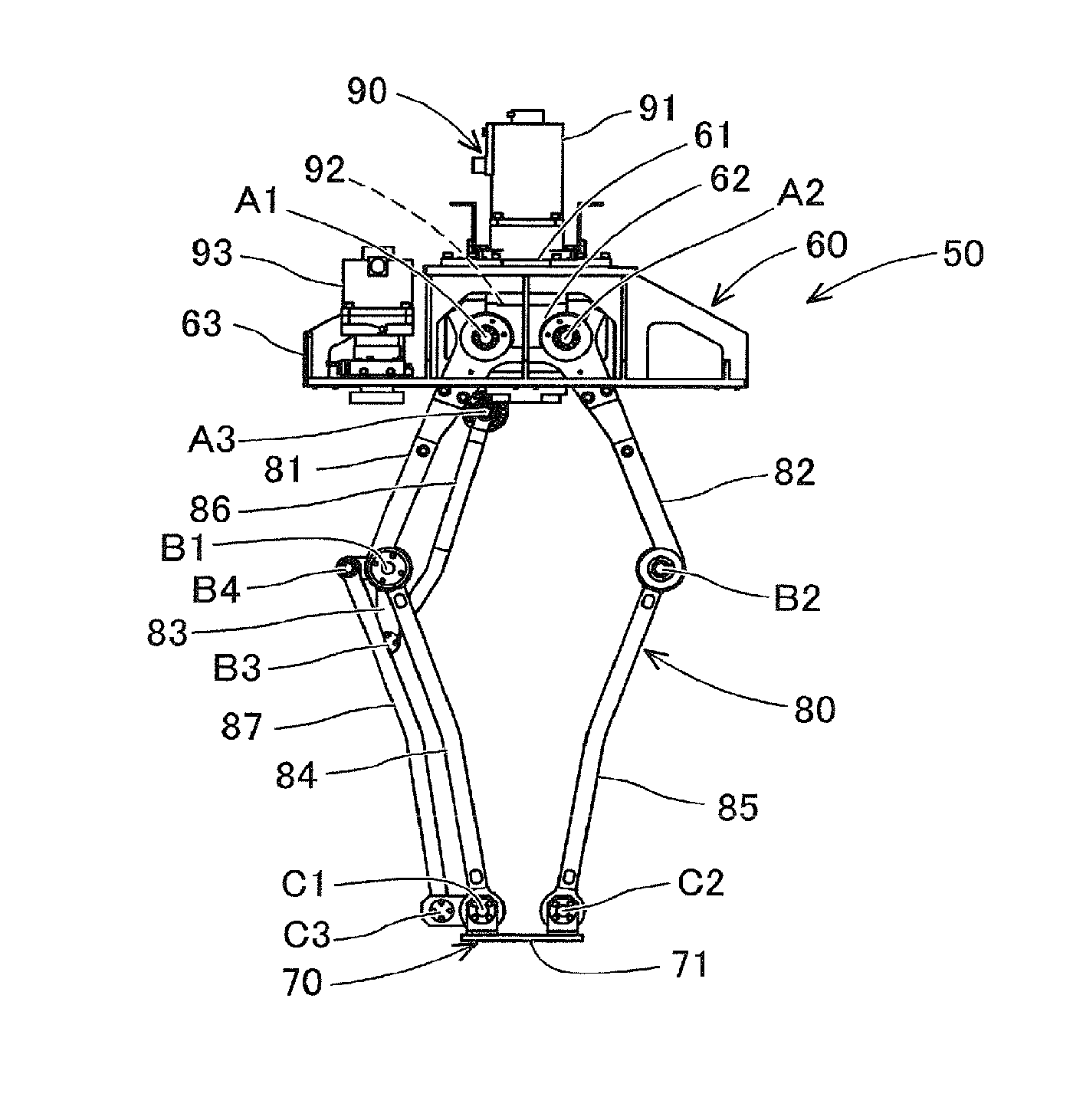

A conveying robot is provided which can have a reduced maximum height and which can convey an object fast and stably. A conveying robot has at least one of a characteristic that a first driven link that configures the conveying robot is formed to have a bent shape that protrudes toward a second driven link with respect to a straight line that connects a first intermediate rotation support and a first tip-side rotation support, and a characteristic that the second driven link is formed to have a bent shape that protrudes toward the first driven link with respect to a straight line that connects a second intermediate rotation support and a second tip-side rotation support.
First Claim
Other Claims data not available
