ACTUATOR ASSEMBLY WITH A MAGNETIC COUPLING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Feb 24, 2016
filing date -
Mar 4, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

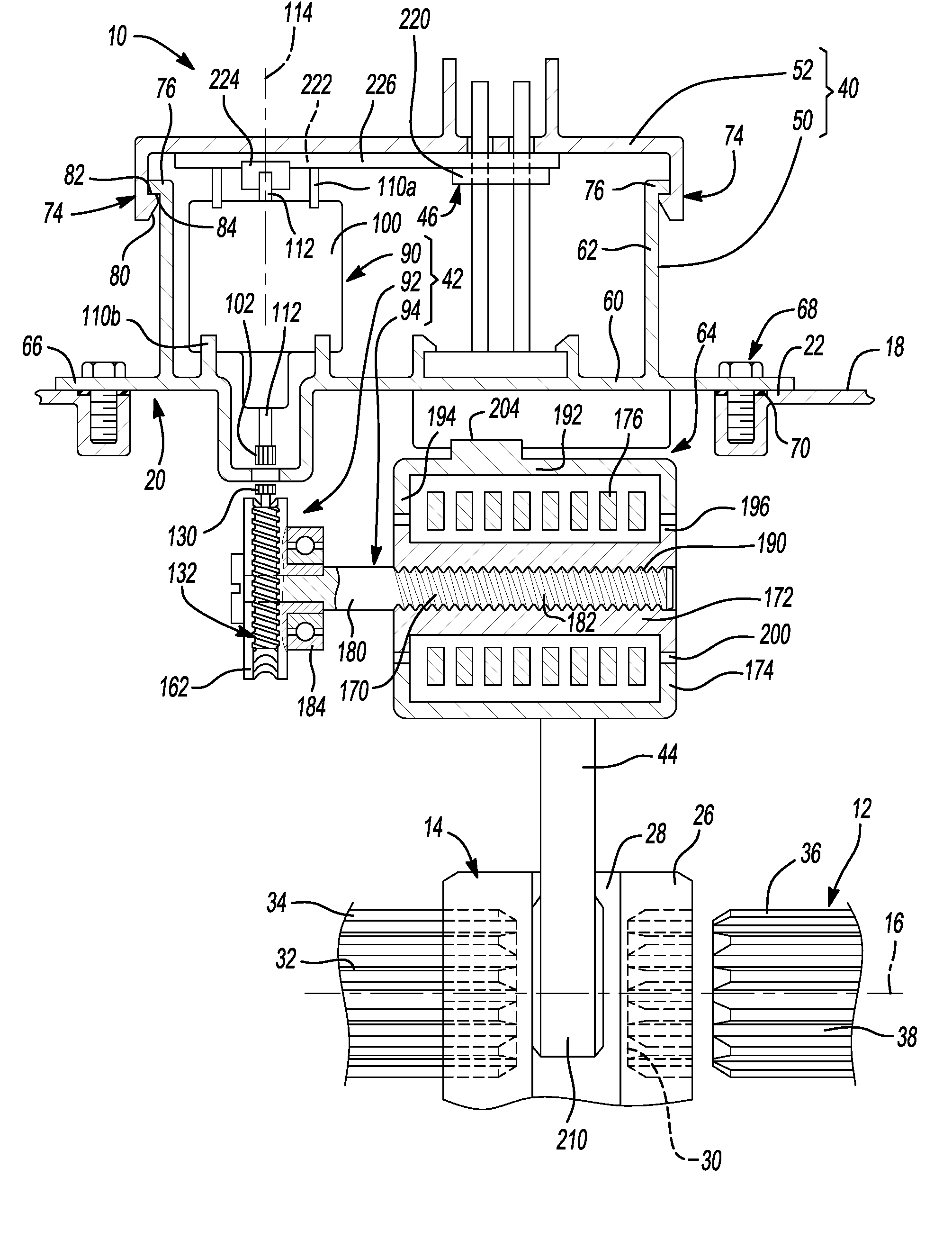

An actuator that includes a housing, first and second drive portions, a rotary-to-linear converter and an output member. The housing defines a first housing part and a second housing part that is segregated from first housing part by a housing wall. The first drive portion is housed in the first housing part and has a source of rotary power and an intermediate output that is driven by the source of rotary power. The second drive portion is housed in the second housing part and has an intermediate input and a transmission. The intermediate input receives rotary power from the intermediate output and transmits rotary power to the transmission. The intermediate input does not physically contact the intermediate output and the housing wall is disposed between the intermediate output and the intermediate input. The rotary-to-linear converter driven by the transmission. The output member translated along an axis by the rotary-to-linear converter.
First Claim
Other Claims data not available
