LIGHT-EMITTING ARRANGEMENT WITH ADAPTED WAVELENGTH CONVERTER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 1, 2016
app pub date -
Jan 15, 2016
filing date -
Oct 26, 2011
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

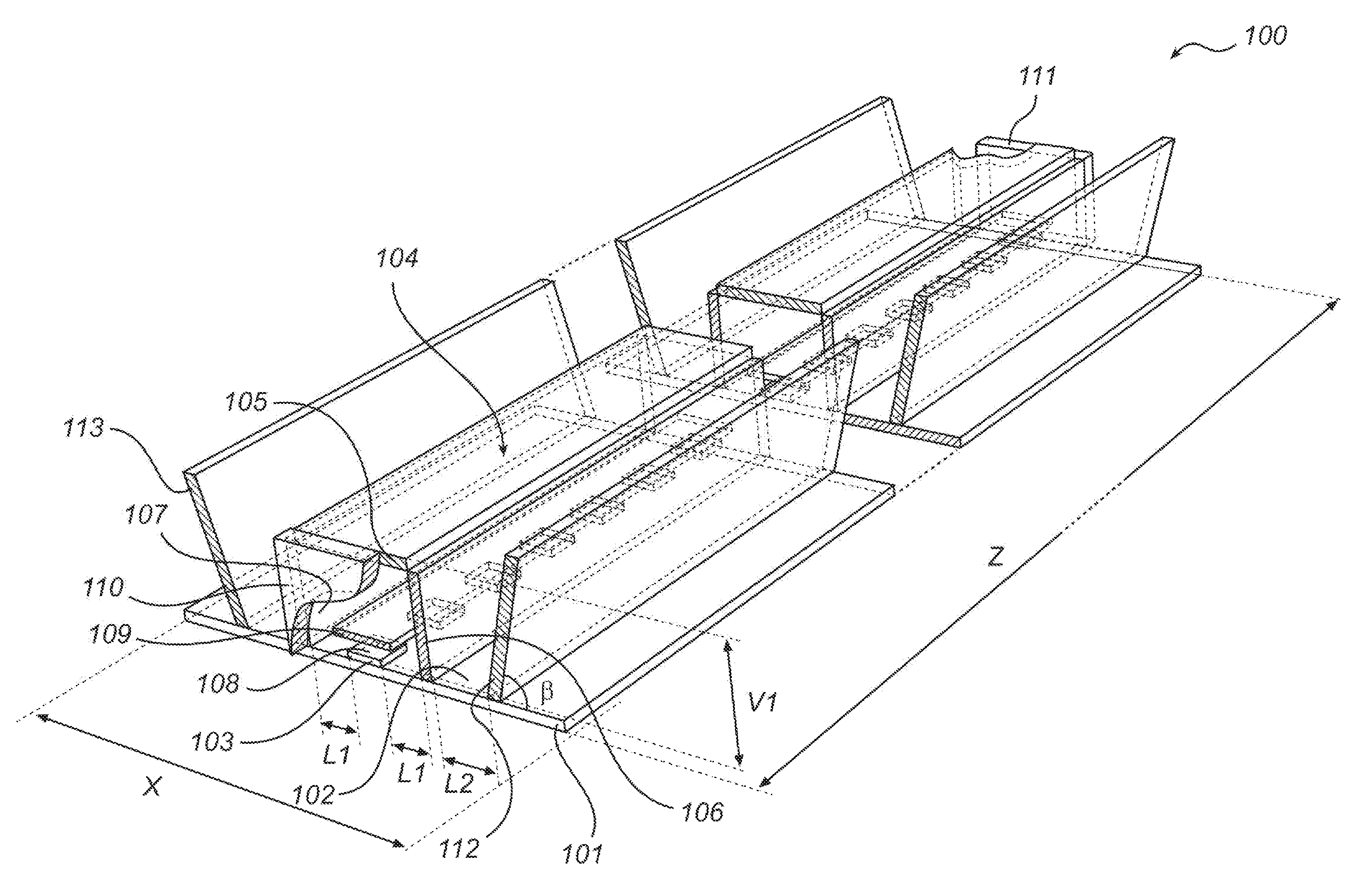

A light-emitting arrangement (100) comprising a reflective member (101) having a reflective surface (102) on which at least one LED is arranged is disclosed. A wavelength converting member (104) comprising a first wavelength converting material, adapted to convert light of a first wavelength into light of a second wavelength, is arranged on the reflective member. The converting member has a top face (105) oriented parallel to the reflective surface, and has a first side face (106) and a second side face (107) that are each arranged between the top face and the reflective member on a respective side of the LED(s). The top face is arranged at a vertical distance (V1) from a light-emitting surface (108) of the LED(s). In addition, the reflectivity of the first side face is different from the reflectivity of the second side face.
First Claim
Other Claims data not available
