NON-CONDUCTIVE ANTIBACTERIAL SHEET, METHOD FOR MANUFACTURING THEREOF, AND ANTIBACTERIAL METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 1, 2016
app pub date -
Nov 4, 2014
filing date -
Nov 12, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

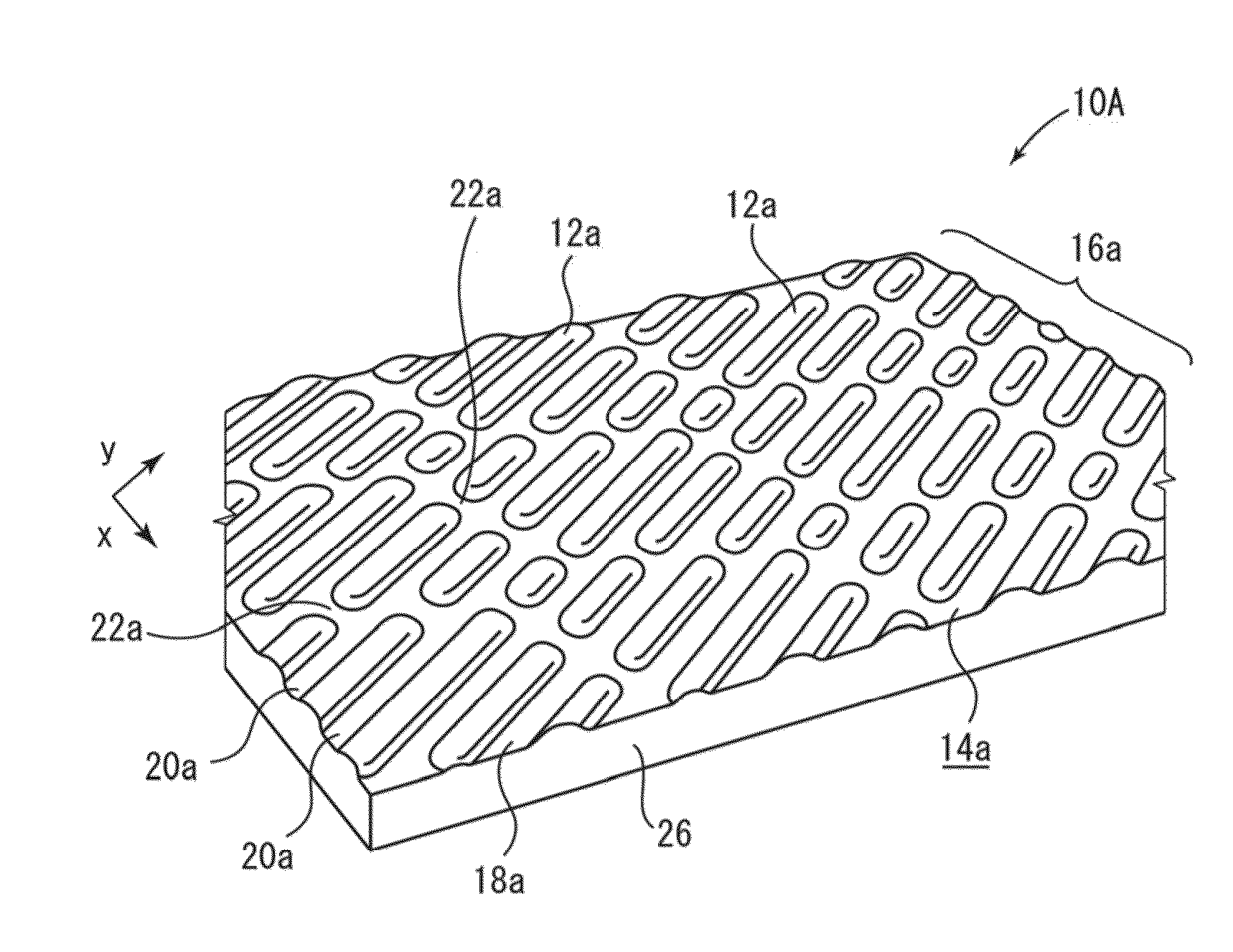

Provided are a non-conductive antibacterial sheet, a method for manufacturing thereof, and an antibacterial method, wherein it is enough that the feature height of the non-conductive antibacterial sheet is shallower than the conventional one, and hence many materials may be used for preparation thereof. The non-conductive antibacterial sheet of an acrylic resin comprises a micropatterned concave and convex surface in which there are produced concave and convex micropattern groups by forming multiple protrusion portions each having a nearly rectangular shape in a plane view on the surface thereof, wherein the protrusion portions are regularly formed in an x-direction and a y-direction orthogonal thereto with x-direction spaces and y-direction spaces, the both spaces having predetermined widths; a height from the surface of the sheet to the top of the protrusion portion is 0.4 μm to 1 μm; a bottom width of the protrusion portion is 2 μm to 3 μm, and the width of the x-direction space is equal to the bottom width of the protrusion portion; and the non-conductive antibacterial sheet exhibits an antibacterial effect in such a way that bacteria which are in static contact with the micropatterned surface are not trapped in the x-direction spaces.
First Claim
Other Claims data not available
