LOW-PROFILE COUPLED INDUCTORS WITH LEAKAGE CONTROL
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 25, 2016
app pub date -
Sep 28, 2015
filing date -
Feb 24, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

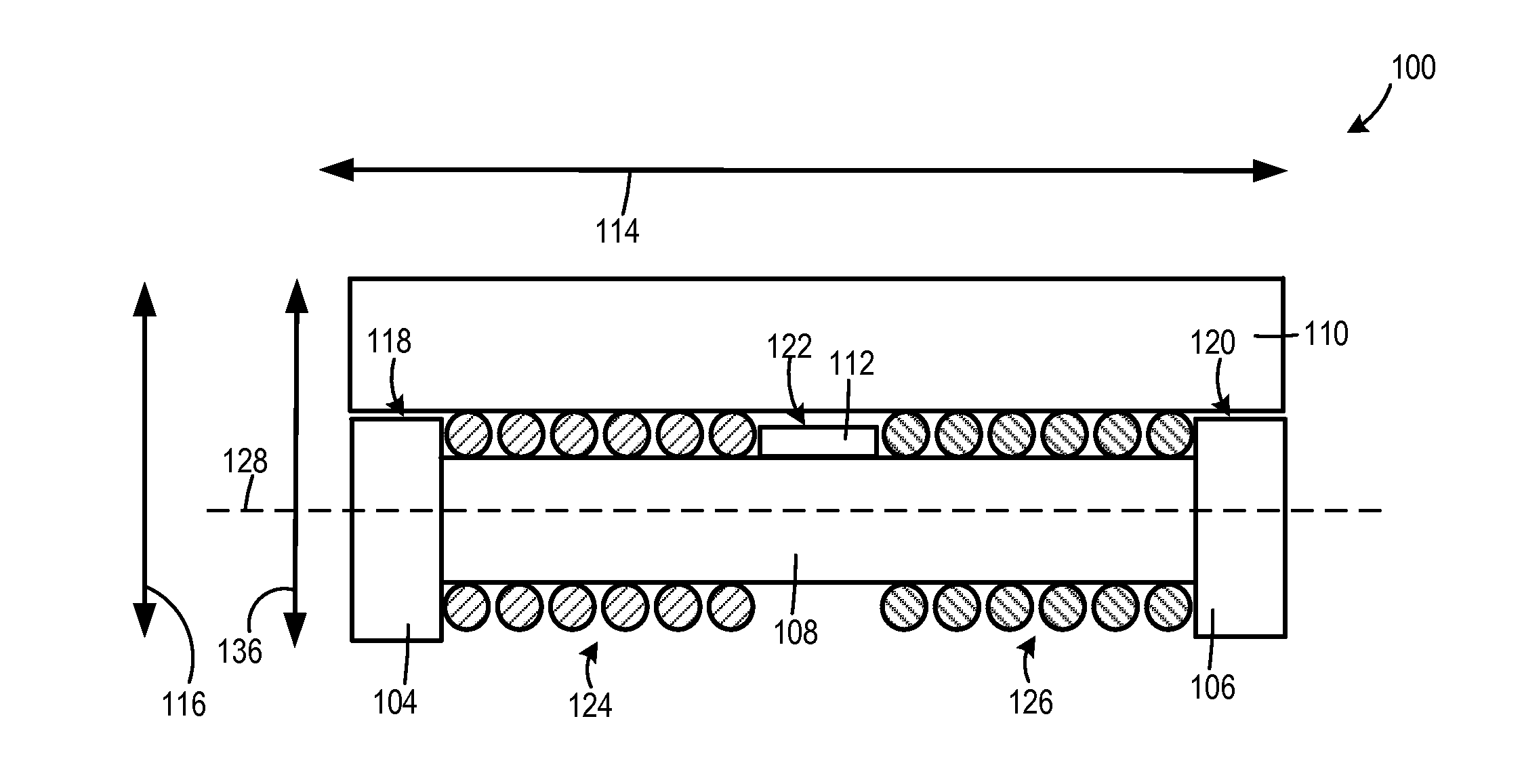

A low-profile coupled inductor includes a magnetic core and first and second windings. The magnetic core includes first and second end flanges, a winding form element, a first outer plate, and a first leakage post. The winding form element is disposed between and connects the first and second end flanges in a first direction. The first outer plate is disposed over and faces the first and second end flanges in a second direction. The first leakage post is disposed between the winding form element and the first outer plate in the second direction. The first winding is wound around the winding form element, between the first end flange and the first leakage post, and the second winding is wound around the winding form element, between the first leakage post and the second end flange. Each of the windings is wound around a common axis extending in the first direction.
