Push-pull bridge-type magnetic sensor for high-intensity magnetic fields
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Issued Date -
N/A
app pub date -
Oct 13, 2014
filing date -
Oct 21, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance

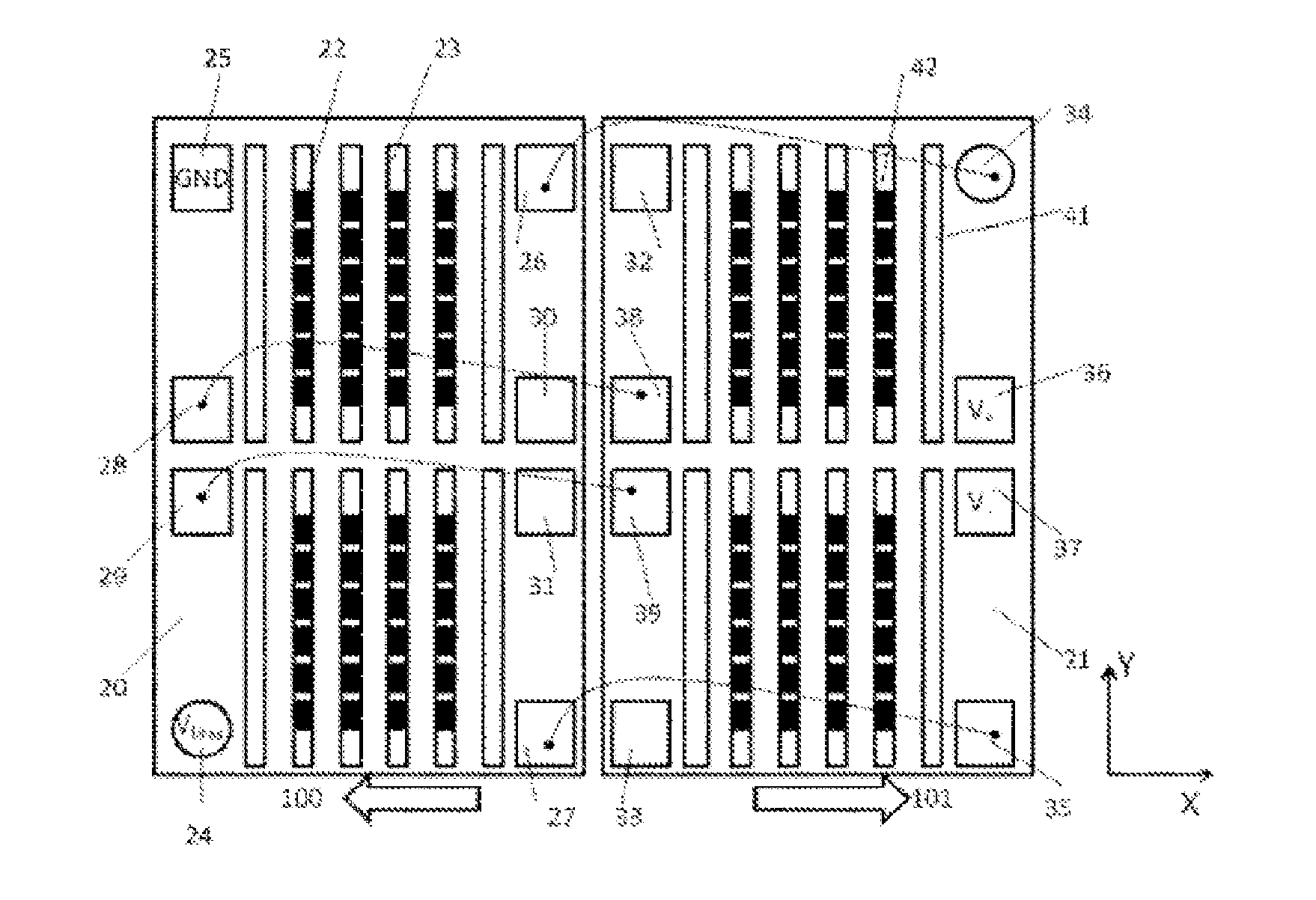

Abstract
The present invention provides a push-pull bridge-type magnetic sensor for high-intensity magnetic fields. The sensor comprises two substrates, magnetoresistive sensing elements, push arm attenuators, and pull arm attenuators. Magnetization directions of pinning layers of the magnetoresistive sensing elements located on a same substrate are parallel, and magnetization directions of pinning layers of the magnetoresistive sensing elements on different substrates are anti-parallel, wherein the magnetoresistive sensing elements on one substrate are electrically connected to one another to form push arms of a push-pull bridge, and the magnetoresistive sensing elements on the other substrate are electrically connected to one another to form pull arms of the push-pull bridge. The magnetoresistive sensing elements in the push arms and the pull arms are arranged in columns above or below the push arm attenuators and the pull arm attenuators. The sensor can be implemented in quasi-bridge, half-bridge, or full-bridge structures, and it has the following advantages: low power consumption, small offset, good linearity, wide operation range, the capability to operate in high-intensity magnetic fields, and twice the maximum sensitivity of a single-chip referenced bridge magnetic sensor.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G01R Class
- 4836 Applications Filed
- 4099 Patents Issued To-Date
- 84.77 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G01R Class
- 23.34 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2029 |
