Shift control apparatus of manual transmission
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Issued Date -
N/A
app pub date -
Feb 22, 2016
filing date -
Feb 25, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

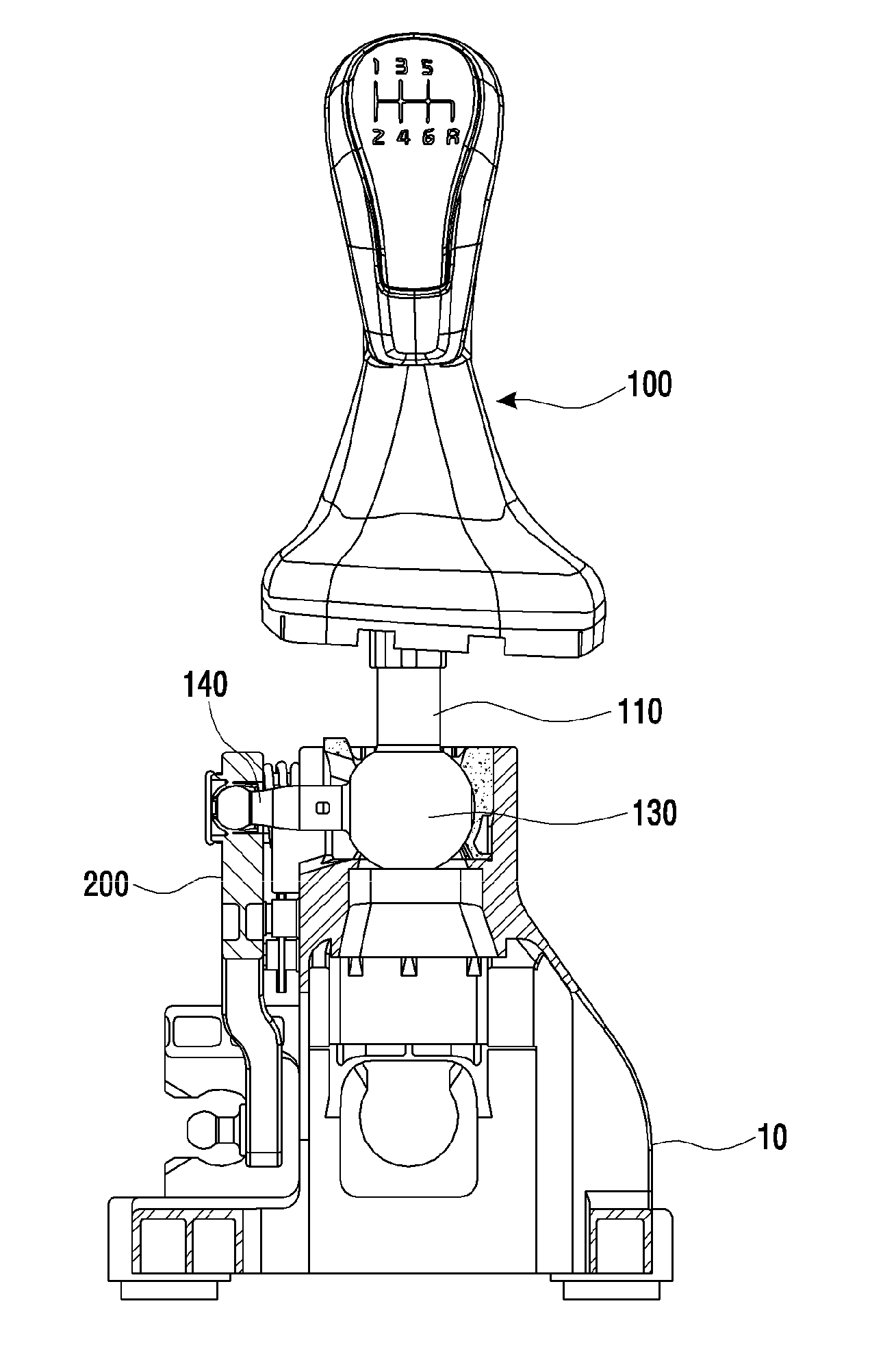

A shift control apparatus of a manual transmission is disclosed. To change the gear, the shift control apparatus of a manual transmission according to the embodiment of the present invention includes: a shift lever which is movable in a shift direction and in a select direction; a select lock unit which includes a shaft for limiting the select directional movement of the shift lever; and a controller which controls the select lock unit to limit the select directional movement of the shift lever on the basis of a speed of a vehicle. As a result, a driver can safely shift the gear by preventing unintended shifting to R gear and sense the state of a select lock. Also, the select lock unit is implemented by one solenoid, so that it is possible to reduce the cost thereof, to prevent the overheating of the solenoid, and thus, to extend the life span.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| KR | B1 | KR101730029 | Feb 25, 2015 |
| DE | A1 | DE102016101505 | Jan 28, 2016 |
| CN | A | CN105909784 | Jan 29, 2016 |
International Classification(s)
- 2016 Application Filing Year
- F16H Class
- 3082 Applications Filed
- 2343 Patents Issued To-Date
- 76.03 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16H Class
- 25.11 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 26, 2029 |
