PUMP WITH QUICK DISCHARGE FUNCTION
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 25, 2016
app pub date -
Feb 23, 2016
filing date -
Feb 25, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

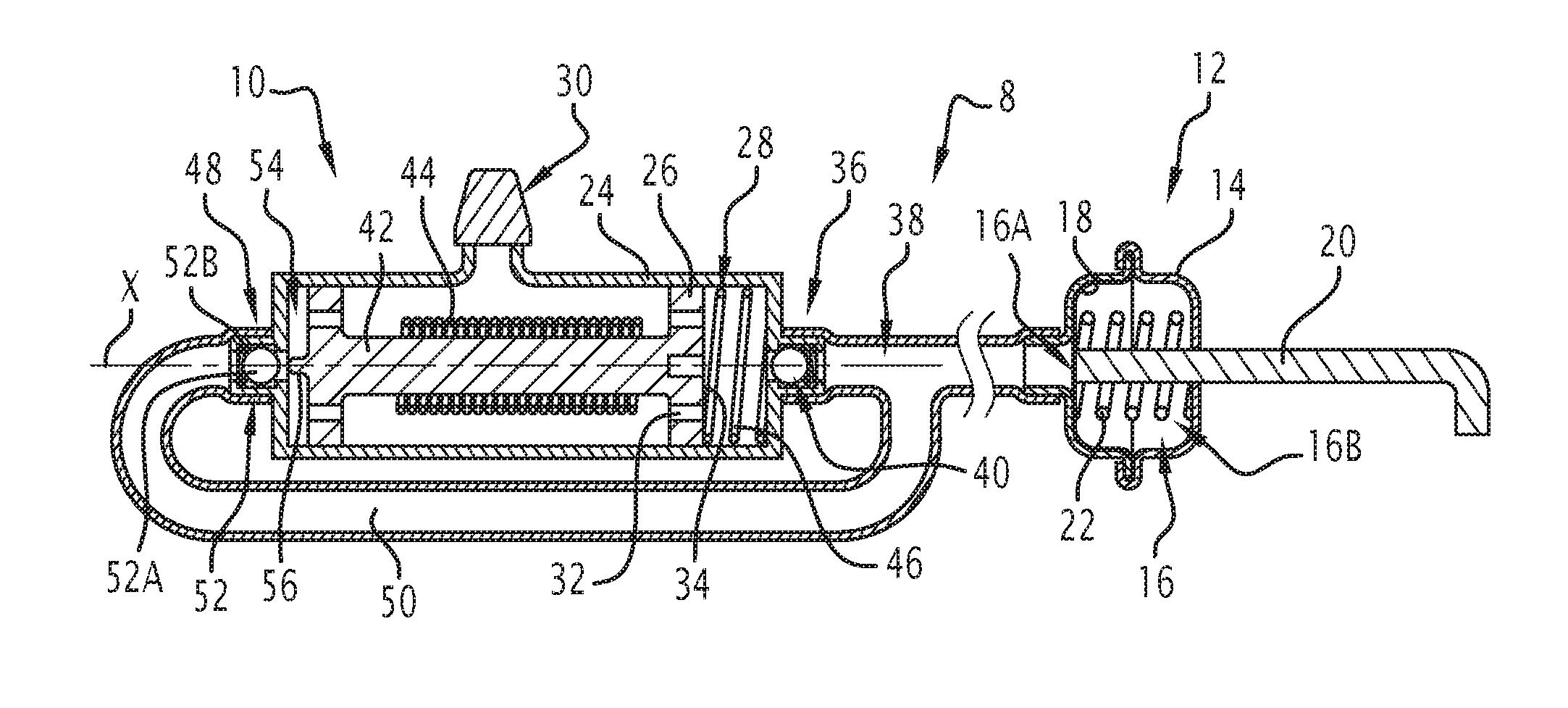

A pump includes a chamber defined by a piston movable in a body comprising an intake opening able to communicate with the chamber and a first non-return member authorizing passage of fluid from the opening toward the chamber, and prohibiting the passage from the chamber toward the opening. An expulsion opening is between the chamber and a duct, and a second non-return member authorizes passage of fluid from the chamber toward the duct, and prohibits passage from the duct toward the chamber. The body includes a discharge opening communicating with the duct and able to communicate with the opening, and a third non-return member movable between an open position, in which the duct communicates with the opening, and a closed position prohibiting the passage of fluid between the duct and the opening. The pump includes a member to move the third non-return member.
First Claim
Other Claims data not available
