ADAPTER FOR ATTACHING A CLEANING HEAD TO A MOP HANDLE OF A MOP
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 25, 2016
app pub date -
Feb 23, 2015
filing date -
Feb 23, 2015
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

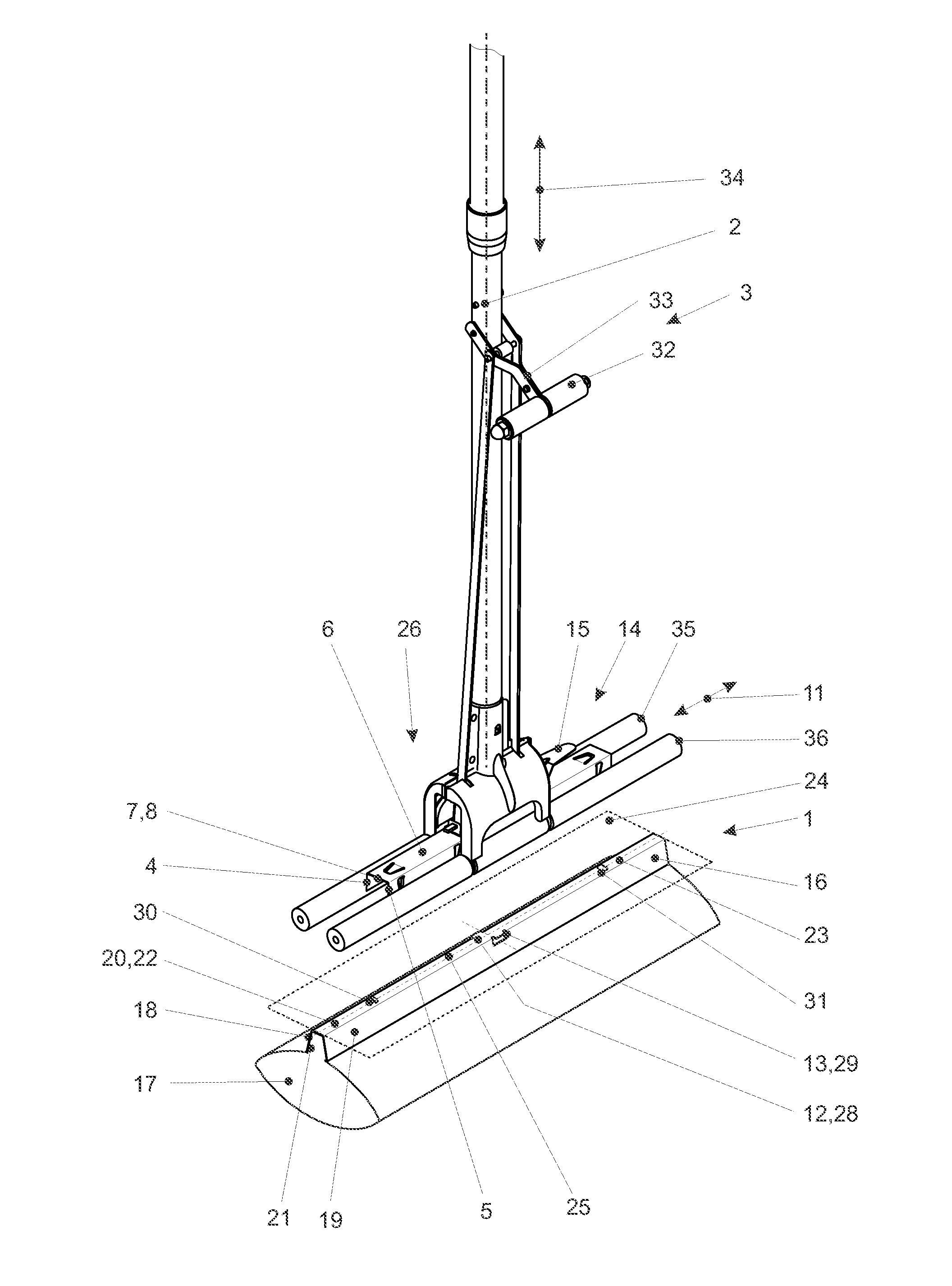

An adapter for attaching a cleaning head to a mop handle of a mop. The adapter is substantially channel-shaped and includes two side webs and one connecting web interconnecting the side webs. The adapter is formed so as to be open towards the cleaning head to be received. The connecting web has an inner side which faces the cleaning head to be received and forms a stop face for the cleaning head. Each of the side webs comprises at least one latching projection formed so as to be resiliently flexible transversely to a longitudinal direction of the adapter. The latching projections are movable towards and away from each other in the manner of a clamp and are configured to be releasably snapped behind latching lugs on the cleaning head in a non-destructive manner.
First Claim
Other Claims data not available
