Mixing valve
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Apr 27, 2016
filing date -
Jun 22, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

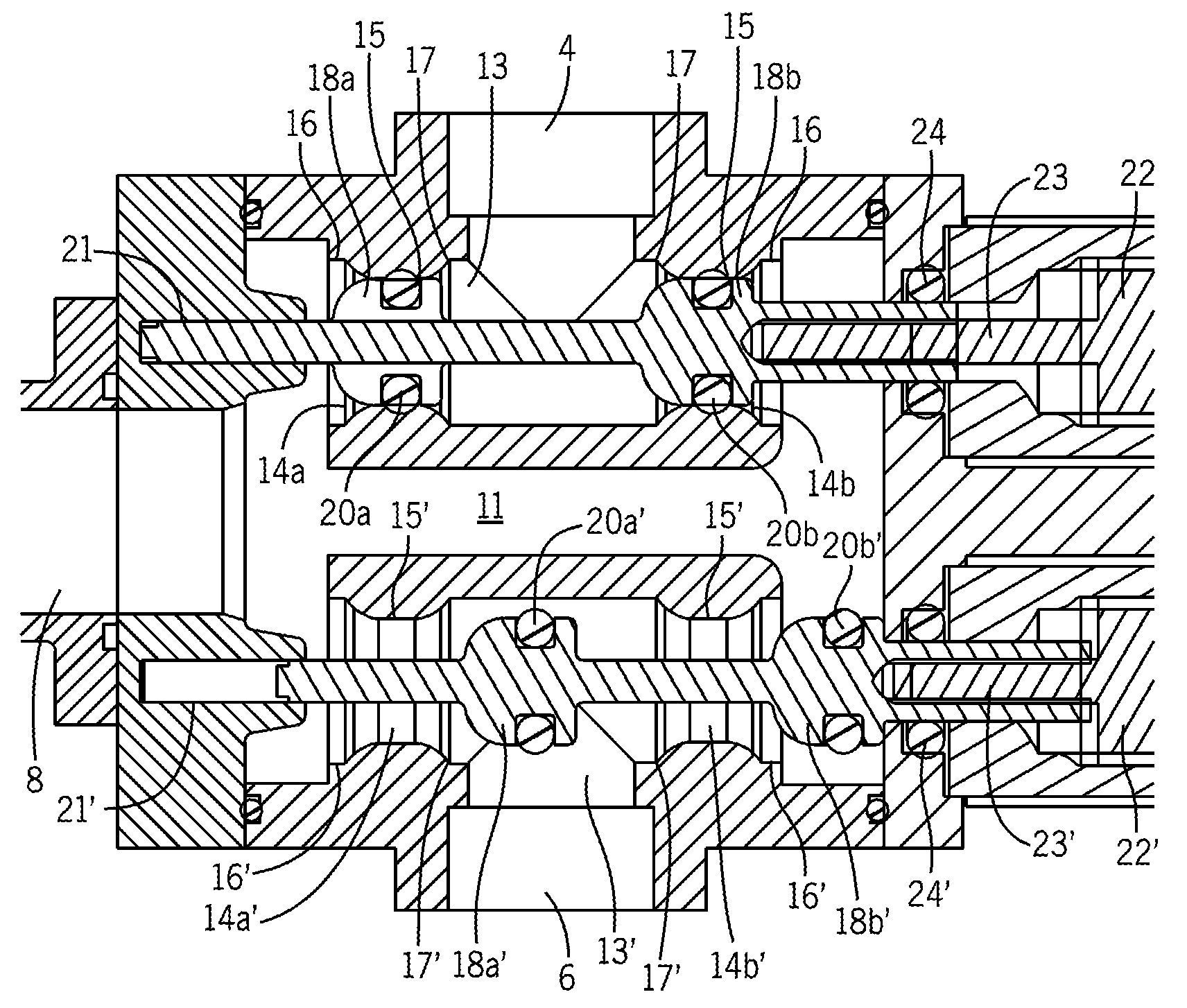

A valve including a housing having a first inlet chamber defined by a first chamber wall and configured to receive the cold water, a second inlet chamber defined by a second chamber wall and configured to receive the hot water, and a mixing chamber configured to receive the cold water from the first inlet chamber and the hot water from the second inlet chamber, wherein at least a portion of the mixing chamber is located between the first and second chamber walls; a first flow control valve extending through the first inlet chamber and moveable relative to the housing for controlling the flow of cold water from the first inlet chamber to the mixing chamber; and a second flow control valve extending through the second inlet chamber and moveable relative to the housing for controlling the flow of hot water from the second inlet chamber to the mixing chamber.
First Claim
Other Claims data not available
Family
International Classification(s)
- F16K:VALVES; TAPS; COCKS; ACTUATING-FLOATS; DEVICES FOR....
- B05D:PROCESSES FOR APPLYING LIQUIDS OR OTHER FLUENT MAT....
- B05B:SPRAYING APPARATUS; ATOMISING APPARATUS; NOZZLES
- F17D:PIPE-LINE SYSTEMS; PIPE-LINES
- G05D:SYSTEMS FOR CONTROLLING OR REGULATING NON-ELECTRIC....
- E03B:INSTALLATIONS OR METHODS FOR OBTAINING, COLLECTING....
- E03C:DOMESTIC PLUMBING INSTALLATIONS FOR FRESH WATER OR....
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16K Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
