AMPHIBIAN
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Apr 27, 2016
filing date -
Aug 24, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

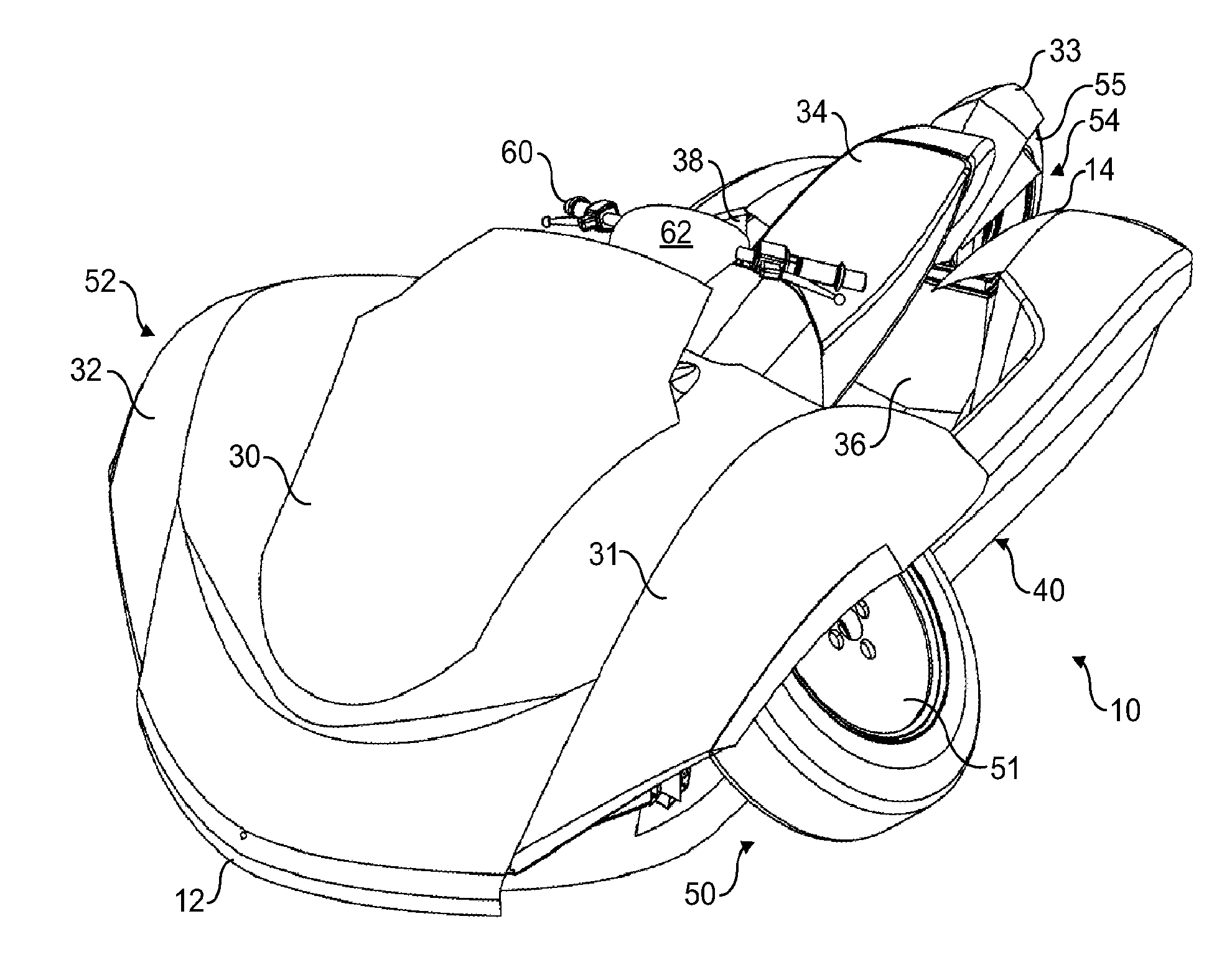

The present invention provides, with reference to FIG. 1, an amphibian for use in land and marine modes comprising:
- a planing hull;three wheel stations, two of the three wheel stations being front wheel stations provided one on each side of and in the front half of the amphibian, and the third wheel station being a rear wheel station provided in a central region in the rear half of the amphibian;at least one wheel provided at each wheel station, each wheel being movable between a protracted land mode position and a retracted marine mode position;land propulsion means to propel the amphibian on land in the land mode, the land propulsion means comprising at least one of the wheels; andmarine propulsion means to propel the amphibian on water in the marine mode, the marine propulsion means comprising at least two impellers or propellers provided one on each side of the rear wheel station.
First Claim
Other Claims data not available
