Repair device for dent in metal bend tube part of musical instrument
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 3, 2017
Grant Date -
Aug 18, 2016
app pub date -
Aug 6, 2014
filing date -
Oct 4, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

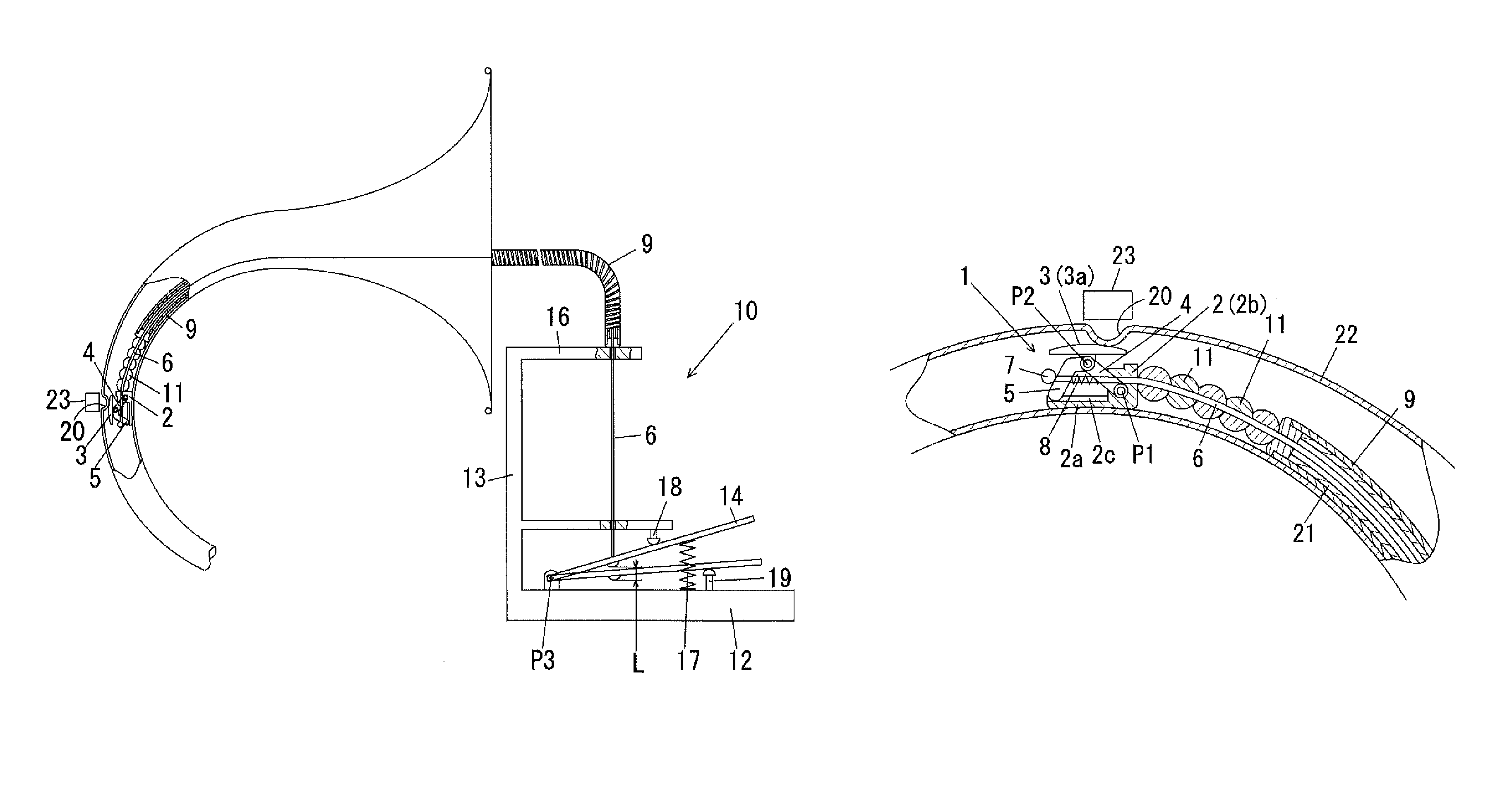

Repair device for a dent is provided in metal bend tube part of musical instrument capable of effectively performing repair work in short time, not by conventional repair method using dent ball. In the device, a pressurizing device main body is also provided formed by connecting base member having an L shape in side view with first fulcrum at a base thereof and movable pressurizing member whose upper surface has convex arc-shaped surface in side view and has a second fulcrum at center part of lower surface, through a first and second arm. A wire, passes through the second arm and upright part of base member in axial direction, is provided, stopper is fastened to an end of wire which has passed through to outside of second arm, and wire passes through inside of curved metal tube and other end side of wire is connected to a foot pressing device.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G10G Class
- 42 Applications Filed
- 33 Patents Issued To-Date
- 78.58 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G10G Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 3, 2028 |
