Geared Turbomachine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Feb 3, 2016
filing date -
Feb 6, 2015
priority date (Note) -
Published
status (Latency Note)
Importance

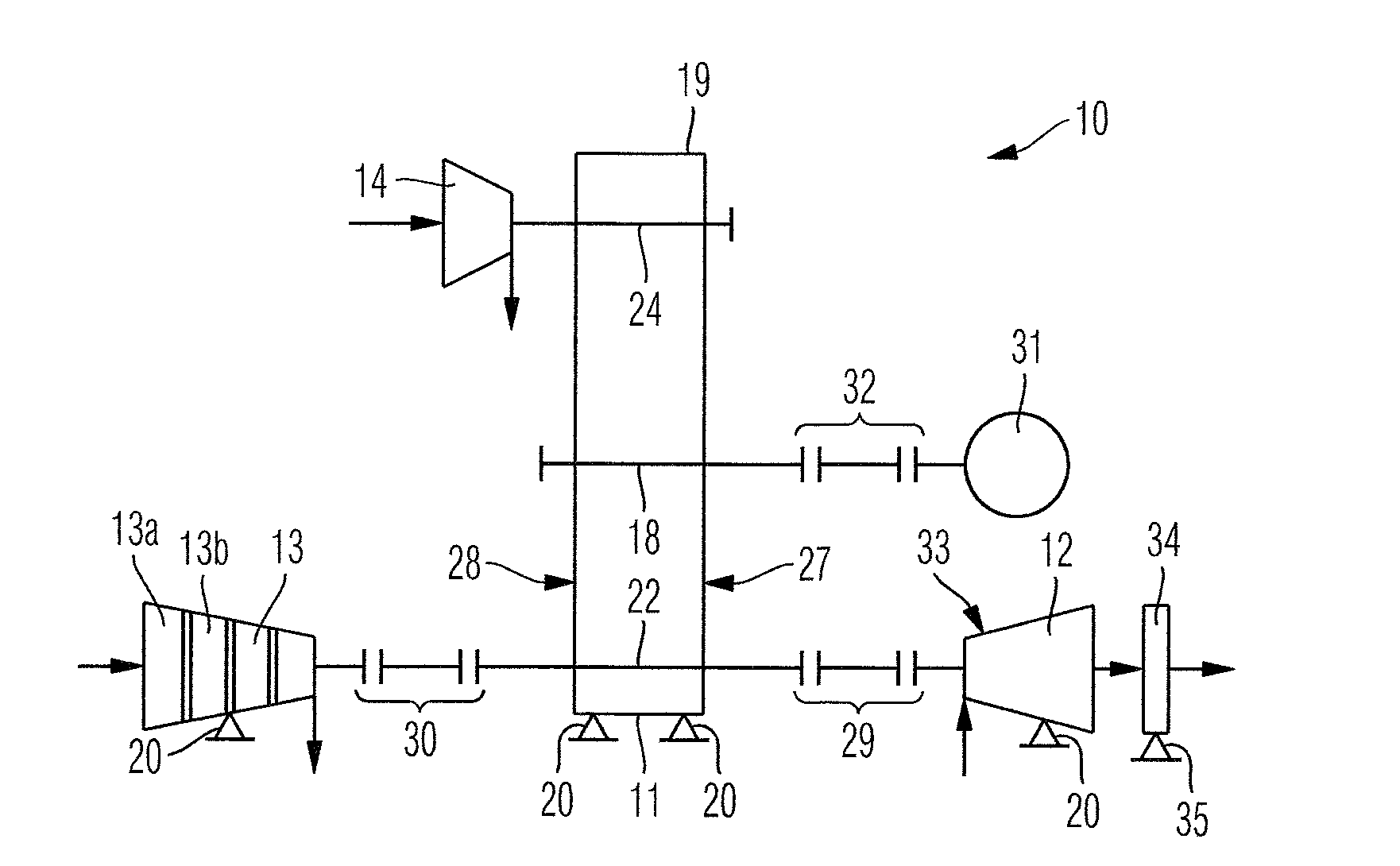

Abstract
A geared turbomachine having a gear unit a drive unit, and output units integrated into a machine train a central large gear with a large gear shaft and at least two pinions with at least two pinion shafts meshing with the large gear. The geared turbomachine has a drive unit coupled to a first pinion shaft of the gear unit via a first clutch. A first output unit is a main compressor processes a first process gas. The first output unit is coupled to the first pinion shaft via a second clutch such that the first output unit is directly operationally connected to the drive unit with transmission of the gear unit remaining the same. A second output unit is a geared compressor to further process the gas. The second output unit is connected to at least one further pinion shaft of the gear unit in a rotationally fixed manner.
First Claim
Other Claims data not available
