Density modulated thin film electrodes, methods of making same, and applications of same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 25, 2019
Grant Date -
Aug 4, 2016
app pub date -
Jan 29, 2016
filing date -
Jan 29, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

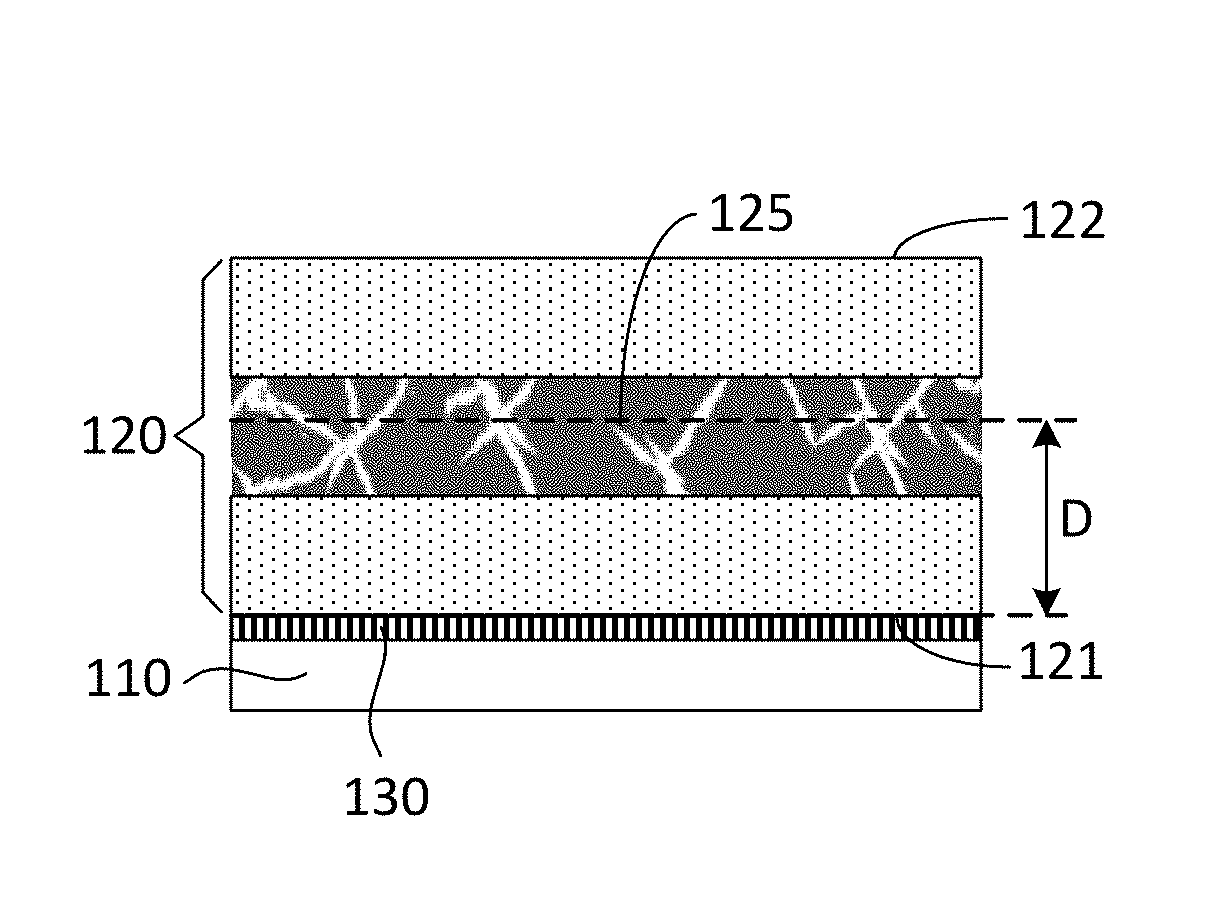

Density modulated thin film electrodes, methods of making the same, and applications of the same. The density modulated thin film electrode includes a substrate formed of a current collecting material, and a thin film formed of an electrode material on the substrate. The thin film has a first surface and an opposite, second surface, and a density that is changed with a distance defined from the first surface to a plane in the thin film, the plane being parallel to the first surface. The method includes depositing the electrode material on the substrate to form the thin film, where, during deposition of the electrode material, a pressure of an operating gas is controlled and changed to a predetermined pressure value according to a deposited thickness of the electrode material, so as to make the density of the thin film changed with the distance.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2016 Application Filing Year
- H01J Class
- 2255 Applications Filed
- 1758 Patents Issued To-Date
- 77.97 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01J Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 25, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 25, 2030 |
