ENERGY GENERATING APPARATUS AND ENERGY GENERATING METHOD AND CONTROL AS-SEMBLY AND REACTION VESSEL THEREFORE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 4, 2016
app pub date -
Sep 17, 2014
filing date -
Sep 17, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

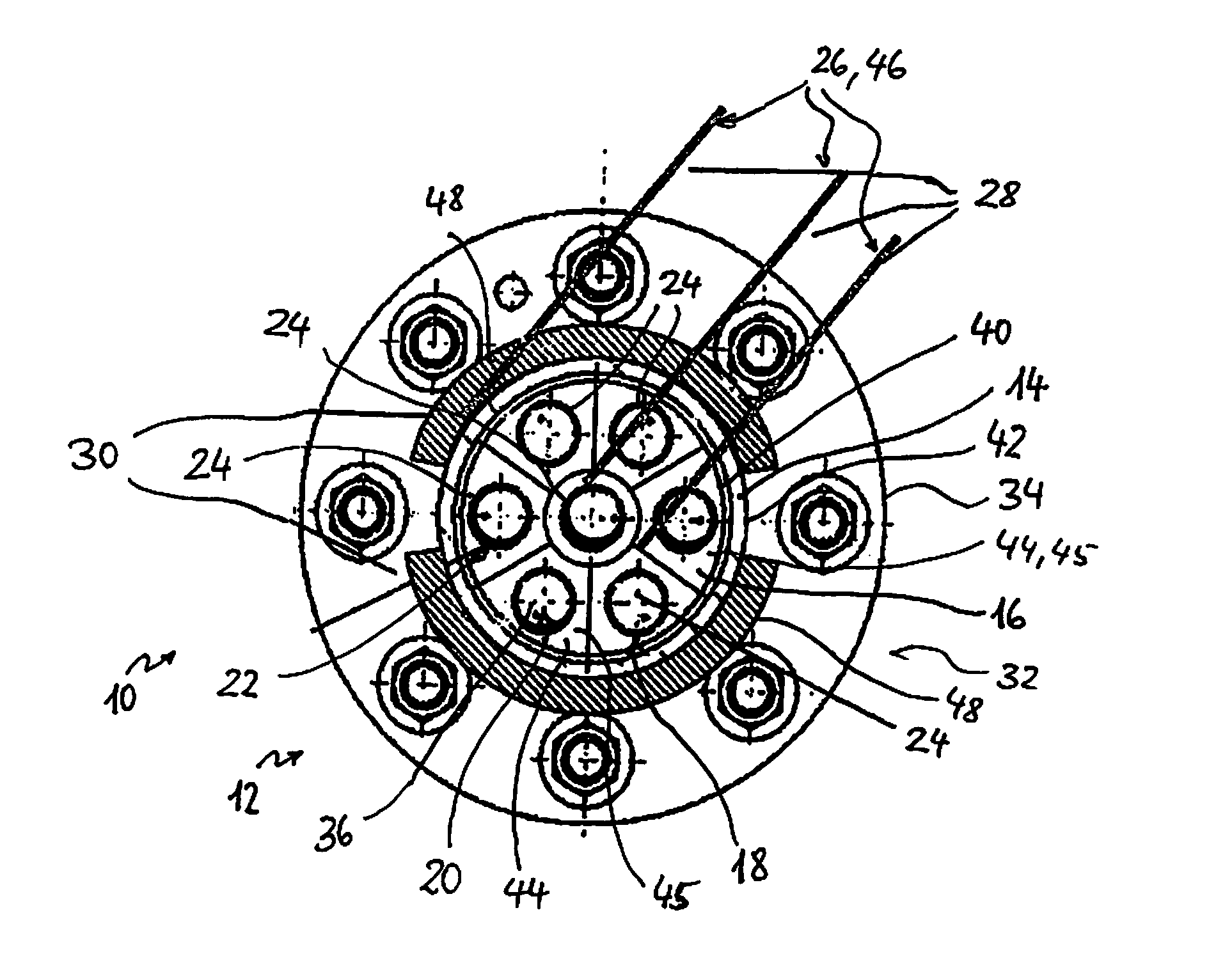

An environmentally friendly heat energy source suitable for the transportation sector, includes an energy generating apparatus for generating heat energy in an exothermic reaction in the form of a metal lattice supported hydrogen process, advantageously an LENR, comprising: a reaction vessel with a reaction chamber containing a reaction material for performing the exothermic reaction, a field generating device for generating a field in the reaction chamber for activating and/or maintaining the exothermic reaction, a heat transfer device for transferring heat into and/or out of the reaction chamber, and a control which controls the field generating device depending on the reaction chamber temperature, for stabilizing or controlling the exothermic reaction. The control connects to a thermoelectric generator for converting heat from the reaction chamber into electrical energy such that enough energy for generating the field is only available when the temperature is above a critical range, for instance above 500 K.
First Claim
Other Claims data not available
