OPTICAL SCANNING DEVICE, IMAGE FORMING APPARATUS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 4, 2016
app pub date -
Jan 27, 2016
filing date -
Jan 27, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

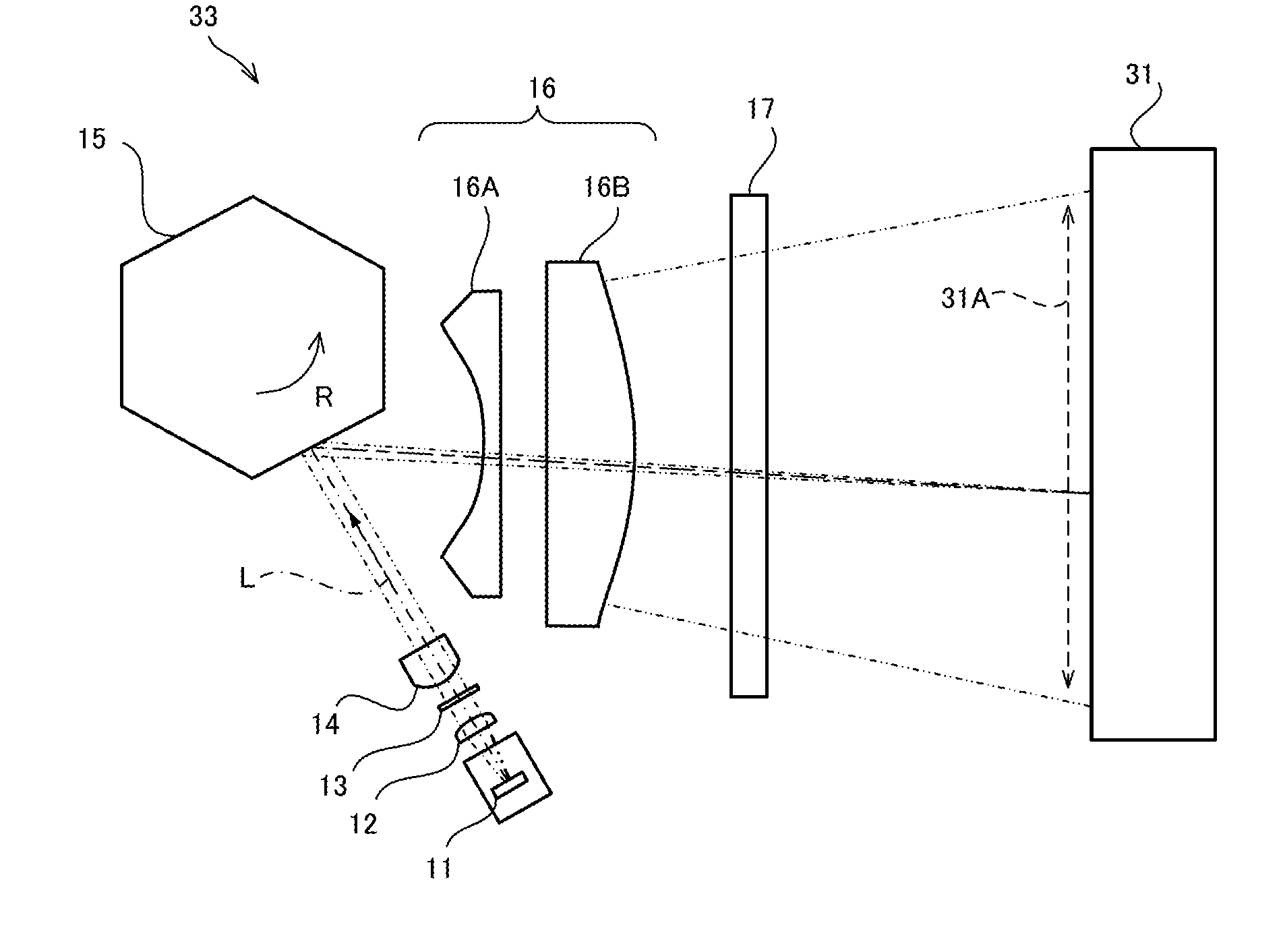

An optical scanning device includes a light source, an optical element, a light deflector, a first storage portion, a second storage portion, and a correction processing portion. The first storage portion stores, in advance, first information that indicates relationship between positions on the image carrying member and light amounts of the laser beam irradiated on the image carrying member. The second storage portion stores, in advance, second information that indicates relationship between the control signal input to the light source and a light amount of the laser beam irradiated at a predetermined reference position of the image carrying member in the main scanning direction. The correction processing portion corrects the control signal for controlling the laser beam, based on the first information, the second information and information of irradiation positions on the image carrying member in the main scanning direction at which the laser beam is to be irradiated.
First Claim
Other Claims data not available
Family
