Nacelle for an aircraft engine with variable section nozzle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 14, 2020
Grant Date -
Aug 4, 2016
app pub date -
Apr 8, 2016
filing date -
Oct 11, 2013
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

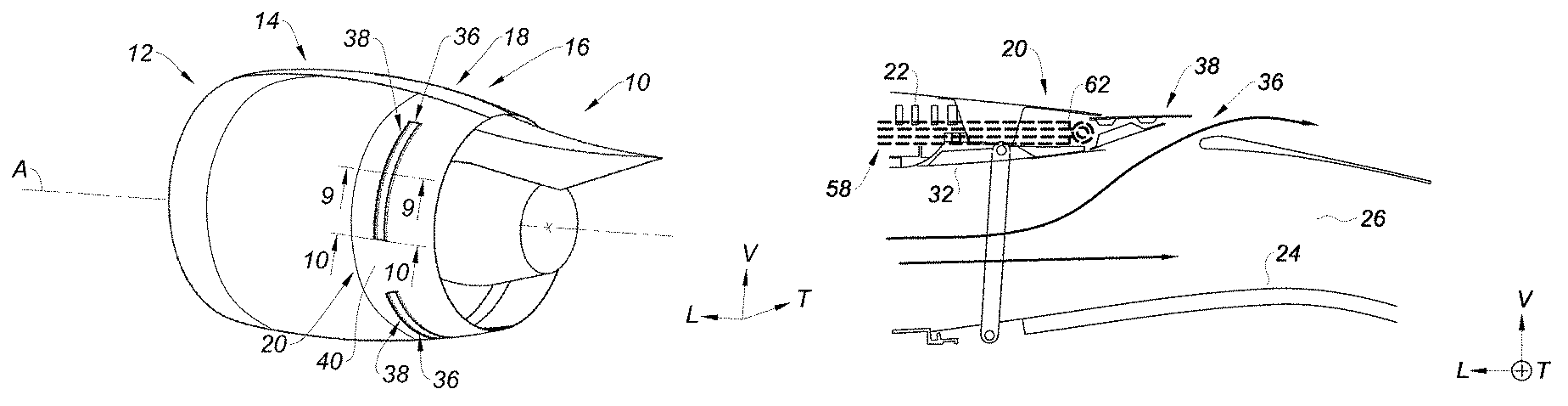

The present disclosure concerns a nacelle for an aircraft engine, which includes a thrust reverser cowling that is slidably mounted between a direct jet position, and a reversed jet position in which the cowling opens a passage in the nacelle and uncovers a deflection device, and at least one actuator for moving the cowling. The nozzle section of the cowling delimits at least one opening that is combined with a leakage door, the leakage door being movably mounted on the cowling between a closed position in which the door engages with the associated opening to counteract the flow of air through said opening, and an open escape position in which the door is retracted to allow a portion of the air flow to flow through said opening.
First Claim
all claims..Other Claims data not available
Family
Country | kind | publication No. | Filing Date | Type | Sub-Type |
---|---|---|---|---|---|
FR | B1 | FR3011820 | Oct 11, 2013 | Patent | Grant |
Type : Patent Sub-Type : Grant | |||||
PATENT OF INVENTION (SECOND PUBLICATION) | NACELLE POUR MOTEUR D'AERONEF A TUYERE DE SECTION VARIABLE | Mar 31, 2017 | |||
WO | A1 | WO2015052457 | Oct 13, 2014 | Patent | Application |
Type : Patent Sub-Type : Application | |||||
INTERNATIONAL APPLICATION PUBLISHED WITH INTERNATIONAL SEARCH REPORT | NACELLE POUR MOTEUR D'AÉRONEF À TUYÈRE DE SECTION VARIABLE | Apr 16, 2015 | |||
EP | B1 | EP3055209 | Oct 13, 2014 | Patent | Grant |
Type : Patent Sub-Type : Grant | |||||
Patent | NACELLE POUR MOTEUR D'AÉRONEF À TUYÈRE DE SECTION VARIABLE | Sep 06, 2017 |
- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
AIRCELLE | 76700 GONFREVILLE L'ORCHER |
International Classification(s)

- 2016 Application Filing Year
- F02K Class
- 527 Applications Filed
- 379 Patents Issued To-Date
- 71.92 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Bouteiller, Xavier | Deville les Rouen, FR | 8 | 30 |
# of filed Patents : 8 Total Citations : 30 | |||
Segat, Peter | Courbevoie, FR | 10 | 73 |
# of filed Patents : 10 Total Citations : 73 | |||
Tissot, Sarah | Bois d'Arcy, FR | 4 | 15 |
# of filed Patents : 4 Total Citations : 15 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 0 Citation Count
- F02K Class
- 0 % this patent is cited more than
- 5 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 14, 2027 |
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 14, 2031 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 7.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
May 29, 2024 | MAFP | MAINTENANCE FEE PAYMENT | free format text: PAYMENT OF MAINTENANCE FEE, 12TH YEAR, LARGE ENTITY (ORIGINAL EVENT CODE: M1553); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY year of fee payment: 12 |
Jun 04, 2020 | MAFP | MAINTENANCE FEE PAYMENT | free format text: PAYMENT OF MAINTENANCE FEE, 8TH YEAR, LARGE ENTITY (ORIGINAL EVENT CODE: M1552); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY year of fee payment: 8 |
Mar 14, 2018 | FEPP | FEE PAYMENT PROCEDURE | free format text: ENTITY STATUS SET TO UNDISCOUNTED (ORIGINAL EVENT CODE: BIG.) |
Feb 22, 2017 | AS | ASSIGNMENT | free format text: CHANGE OF NAME;ASSIGNOR:JASPER TECHNOLOGIES, INC.;REEL/FRAME:041823/0259 Owner name: JASPER TECHNOLOGIES LLC, DELAWARE Effective Date: Mar 22, 2016 free format text: ASSIGNMENT OF ASSIGNORS INTEREST;ASSIGNOR:JASPER TECHNOLOGIES LLC;REEL/FRAME:041823/0655 Owner name: CISCO TECHNOLOGY, INC., CALIFORNIA Effective Date: Feb 22, 2017 |
Jun 06, 2016 | FPAY | FEE PAYMENT | year of fee payment: 4 |
Jan 11, 2016 | AS | ASSIGNMENT | free format text: CORRECTIVE ASSIGNMENT TO CORRECT THE RECEIVING PARTY PREVIOUSLY RECORDED AT REEL: 024270 FRAME: 0760. ASSIGNOR(S) HEREBY CONFIRMS THE ASSIGNMENT;ASSIGNORS:POON, TERRENCE;POTTER, SCOTT;GOVAN, CURTIS;AND OTHERS;SIGNING DATES FROM 20100315 TO 20100416;REEL/FRAME:037483/0680 Owner name: JASPER WIRELESS, INC., CALIFORNIA |
Apr 28, 2014 | AS | ASSIGNMENT | free format text: CHANGE OF NAME;ASSIGNOR:JASPER WIRELESS, INC.;REEL/FRAME:032890/0447 Owner name: JASPER TECHNOLOGIES, INC., CALIFORNIA Effective Date: Apr 28, 2014 |
Dec 04, 2012 | I | Issuance | |
Nov 14, 2012 | STCF | INFORMATION ON STATUS: PATENT GRANT | free format text: PATENTED CASE |
Jul 07, 2011 | P | Published | |
Apr 22, 2010 | AS | ASSIGNMENT | free format text: ASSIGNMENT OF ASSIGNORS INTEREST;ASSIGNORS:POON, TERRENCE;POTTER, SCOTT;GOVAN, CURTIS;AND OTHERS;SIGNING DATES FROM 20100315 TO 20100416;REEL/FRAME:024270/0760 Owner name: JASPER WIRELESS, CALIFORNIA |
Jan 05, 2010 | F | Filing | |
Jan 05, 2010 | PD | Priority Date |
