Subsea Heat Exchangers For Offshore Hydrocarbon Production Operations
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 4, 2016
app pub date -
Jan 28, 2016
filing date -
Jan 30, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

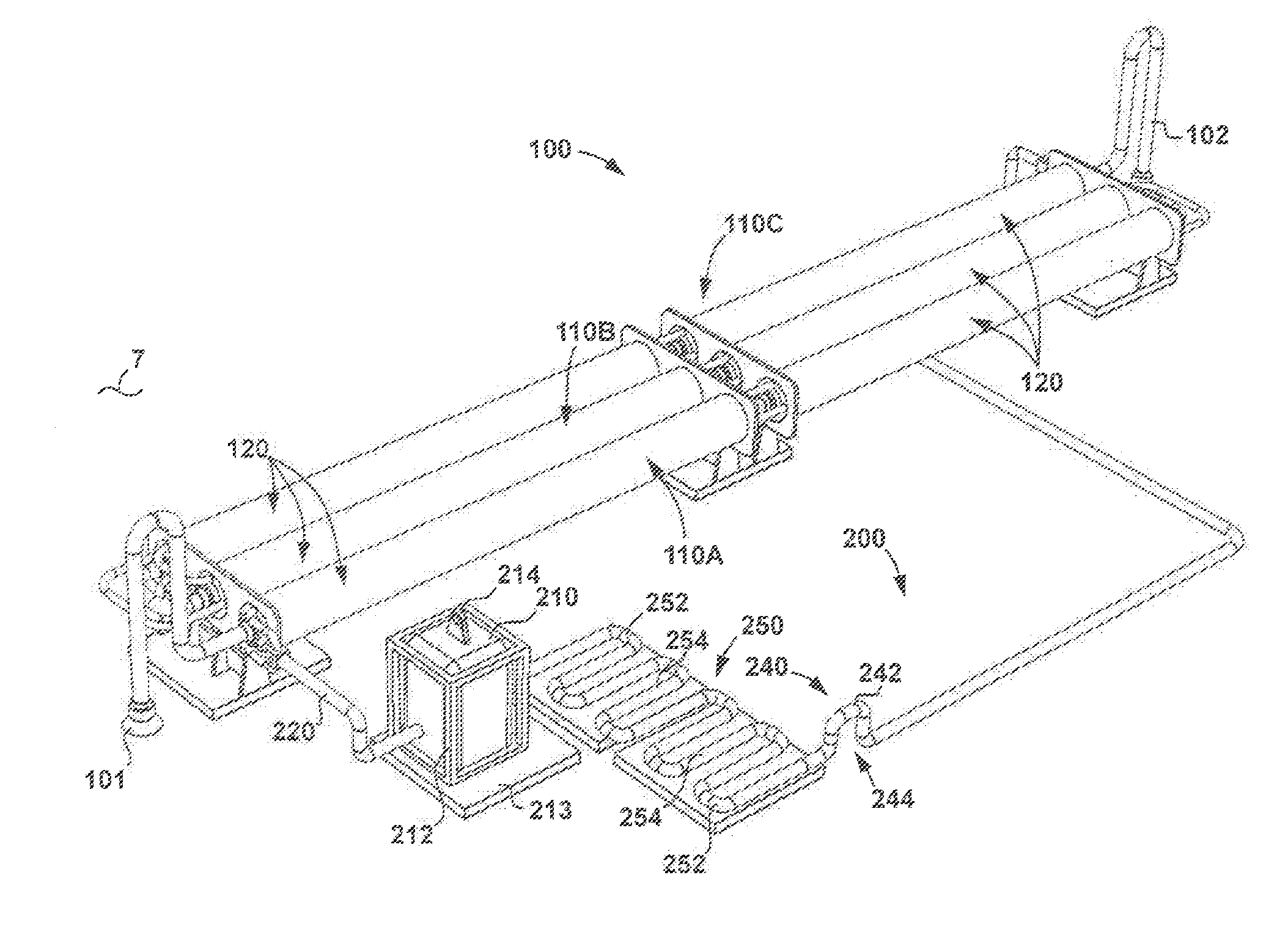

A subsea heat exchanger is disclosed that includes a production fluid inlet, a production fluid outlet, and first and second heat exchanger units coupled to the inlet and outlet. Each heat exchanger unit includes an outer tubular member, an inner tubular member disposed within the outer tubular member, and an annulus radially disposed between the inner tubular member and the outer tubular member. In addition, each heat exchanger unit includes a bridging assembly coupled between the first heat exchanger unit and the second heat exchanger unit. The bridging assembly includes a connector including a throughbore in communication with the inner tubular member of the first heat exchanger unit and the inner tubular member of the second heat exchanger unit. In addition, the bridging assembly includes a tubular stab that fluidly couples the annulus of the first heat exchanger unit to the annulus of the second heat exchanger unit.
First Claim
Other Claims data not available
